ELECTRICAL SYSTEM

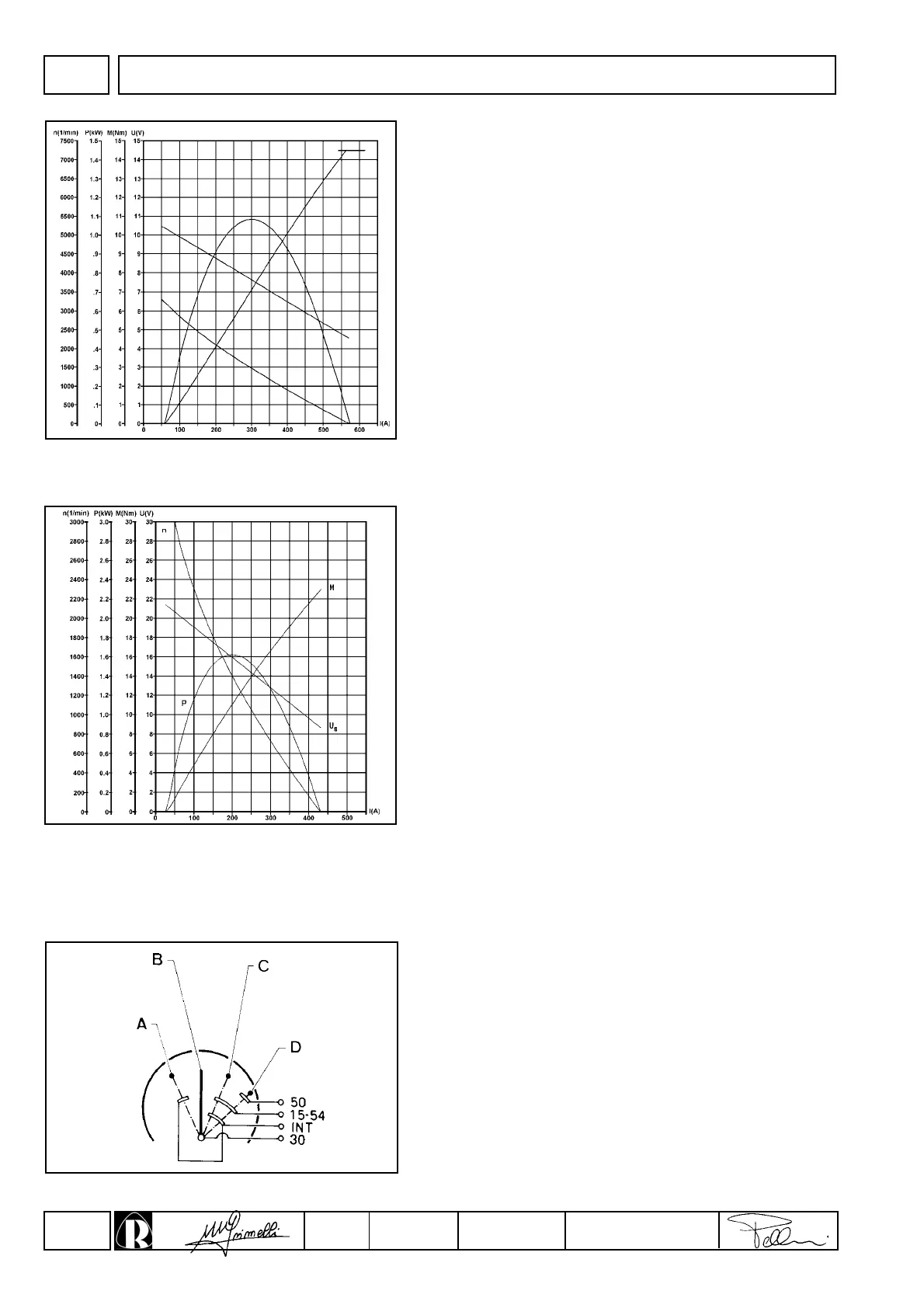

Characteristic curves of Bosch starter motor type DW (L) 12V,
0.9 kW
The curves were measured at a temperature of -20°C with a 55 Ah
battery.
U = Voltage on motor terminals in Volts.
n = Motor speed in rpm
M = Torque in Nm
I (A) = Power draw in Amperes.
Characteristic curves of Bosch starter motor type DW (L) 24V,
1.6 kW
The curves were measured at a temperature of -20°C with a 36 Ah
battery.
U = Voltage on motor terminals in Volts.
n = Motor speed in rpm
M = Torque in Nm
I (A) = Power draw in Amperes..
Ignition switch positions
A = Accessory
B = Off
C = On
D = Start
