Ruida Technology RDC6442S/G - 2.1 MainBoard Installation Size; 2.2 Panel Size

RDV6442G Control System manual V1.3
SHENZHEN RUIDA TECHNOLOGY
6

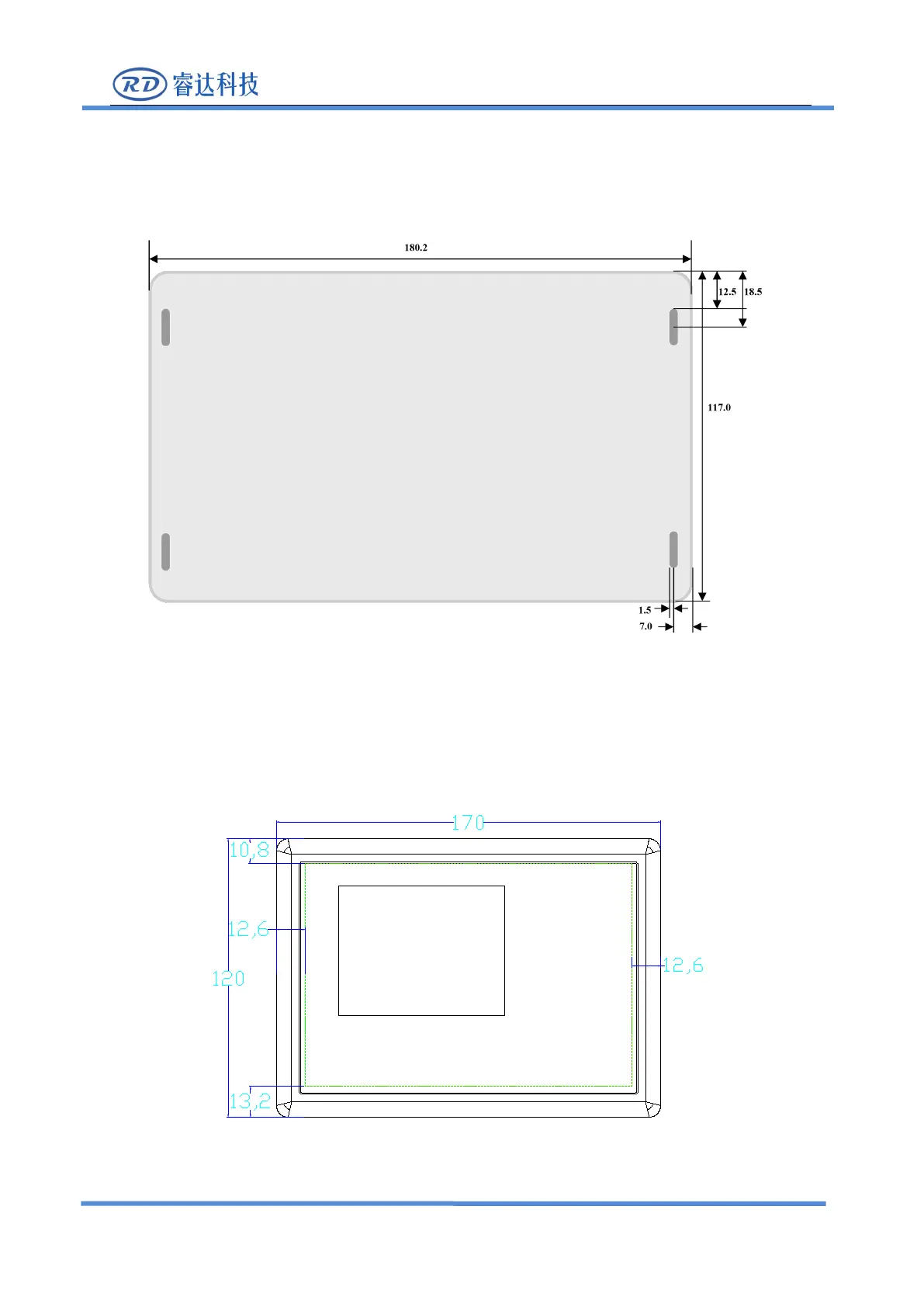

2.1 Installation Size of MainBoard
The unit of all sizes is millimeter (mm) and the size accurate to 0.1mm (the four holes are symmetrical)
Figure 2.1-1
2.2 Size of Panel
The unit of all sizes is millimeter (mm) and the size accurate to 0.1mm.
Figure 2.2-1
