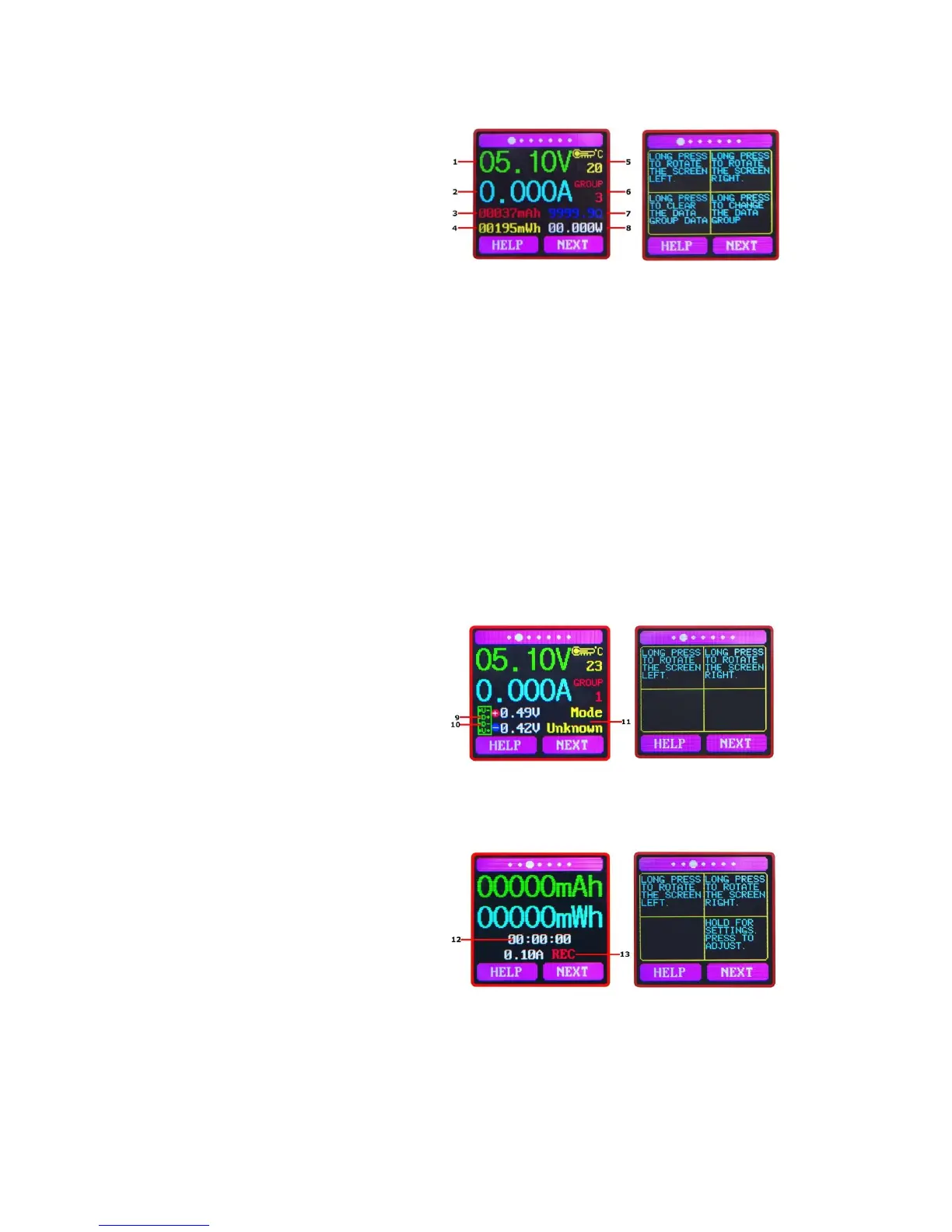

Interface 1: Main Measurment Interface.
1: Voltage measurement.
2: Current measurement.
3: Accumulated Capacity.
4: Accumulated Energy.
5: Temperature.
6: Number of the Data Group in use.
7: Load equivalent impedance.
8: Power measurement.
Press the "Help" button to enter the interface as shown above:
Press and hold the "Next" button to switch Data Group. The USB tester can provide a total of 10
groups of data to save and view. These are numbered 0-9.
With Data Groups 1-9 selected the current mAh and mWh are saved after power off. They will
continue accumulating the next time the tester is powered on. When the data group selected is 0
then the current value of mAh and mWh will be temporarily saved at power off. When the device
is next powered on these values will be recalled and will begin flashing. When the accumulated
mAh exceeds 1 mAh, the previous data will be cleared and accumulation will restart.
With a Data Group selected, press and hold the "Help" button to clear the mAh and mWh.
Press "Next" to switch to the Quick Charge Recognition Interface.
Interface 2: Quick Charge Recognition Interface.
9: D +: (DP) data positive signal level.
10: D-: (DM), data negative signal level.
11: Mode display: The product will
automatically identify a device with a
supported fast charging mode. At this
time the device supports the QC2.0 and
QC3.0 mode only.
Press "Next" to switch to the Data Recording Interface
Interface 3: Data Recording Interface
12: Time display: The total accumulated
recording time.
13: Low Current trigger value.
REC: recording status indicator. ‘REC’
displayed in red indicates that recording is
stopped. ‘REC’ displayed in green
indicates that recording is in progress.
After power on, when the current flowing is greater than the Low Current trigger value. The
system automatically begins to record the accumulated capacity, energy, and time elapsed. The
‘REC’ indicator will change from red to green.
To set the Low Current trigger value, press and hold the "Next" button to highlight the value then
press the ‘Next’ button to adjust the value as required. The value can be set anywhere between
