RuiDeng UM25 User Manual

HangZhou RuiDeng Technologies Co., Ltd
2

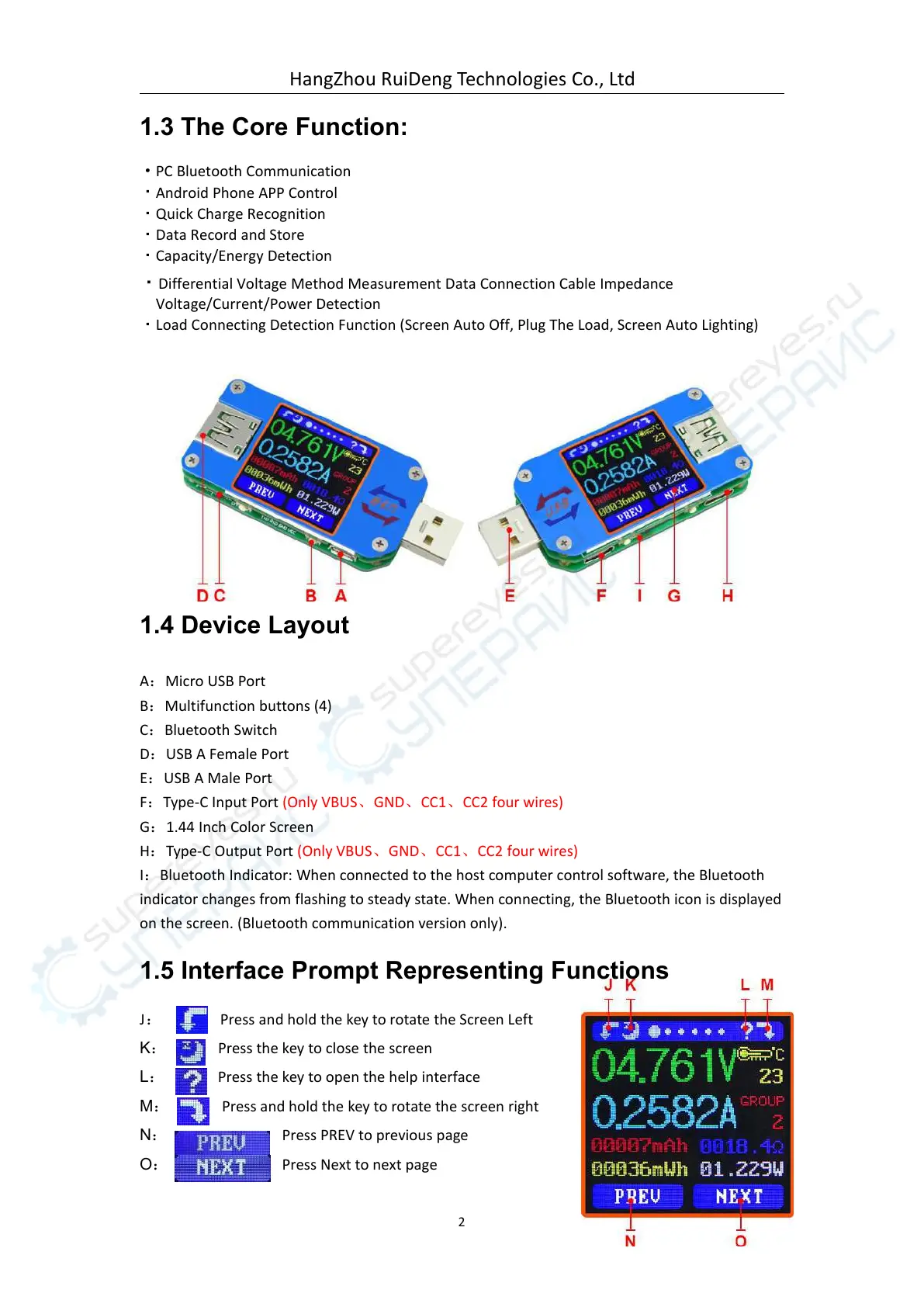

1.3 The Core Function:
·PC Bluetooth Communication
·
Android Phone APP Control
·Quick Charge Recognition
·Data Record and Store
·Capacity/Energy Detection
·Differential Voltage Method Measurement Data Connection Cable Impedance
Voltage/Current/Power Detection
·
Load Connecting Detection Function (Screen Auto Off, Plug The Load, Screen Auto Lighting)
1.4 Device Layout
A：Micro USB Port
B：Multifunction buttons (4)
C：Bluetooth Switch
D：USB A Female Port
E：USB A Male Port
F：Type-C Input Port (Only VBUS、GND、CC1、CC2 four wires)
G：1.44 Inch Color Screen
H：Type-C Output Port (Only VBUS、GND、CC1、CC2 four wires)
I：Bluetooth Indicator: When connected to the host computer control software, the Bluetooth
indicator changes from flashing to steady state. When connecting, the Bluetooth icon is displayed
on the screen. (Bluetooth communication version only).
1.5 Interface Prompt Representing Functions
J：
Press and hold the key to rotate the Screen Left
K：
Press the key to close the screen
L：
Press the key to open the help interface
M：
Press and hold the key to rotate the screen right
N：
Press PREV to previous page
O：
Press Next to next page

RuiDeng UM25 Specifications

General

Brand	RuiDeng
Model	UM25
Category	Test Equipment
Language	English
