Ruijie RG-NBS Series User Manual

1-17
Configuration Guide
eWeb Configuration (Standalone Mode)
3.3 Monitor
3.3.1 Port Flow
The Port Flow module displays port flow data.

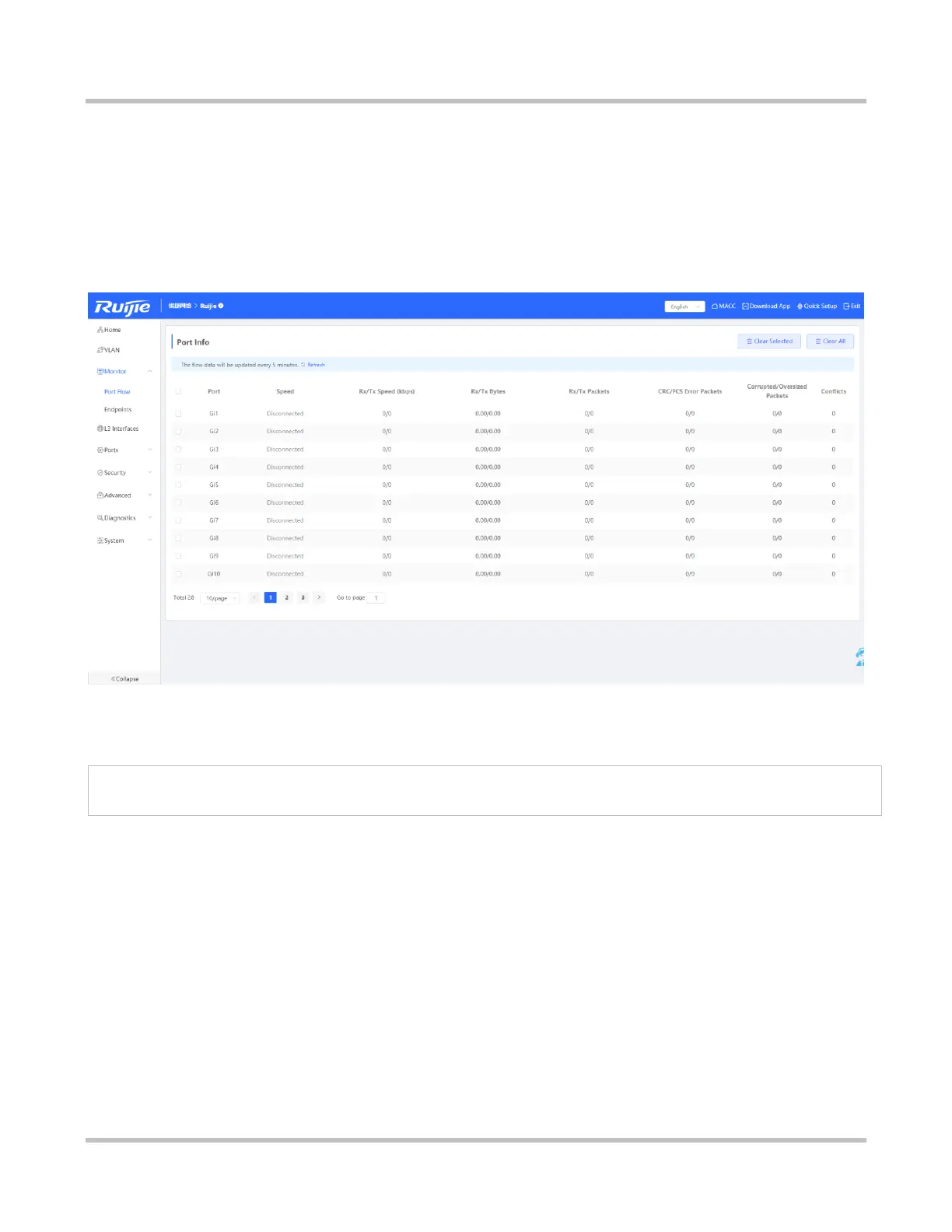

Figure 3-3-1 Port Flow
 Batch Clearing Data/Clearing All Data
Click Batch Clear or Clear All to clear statistics of port traffic and other data.
Tips:
1. Aggregate port flow will also be displayed. Traffic of an aggregate port is the sum of traffic of all member ports.
3.3.2 Endpoints
The Endpoints module includes MAC List, Static MAC, Dynamic MAC, MAC Filter, Aging Time, and ARP List.
3.3.2.1 MAC List
The MAC List page displays MAC addresses learned by the device, including dynamic and static MAC addresses.
