Ruijie RG-NBS3100 Series

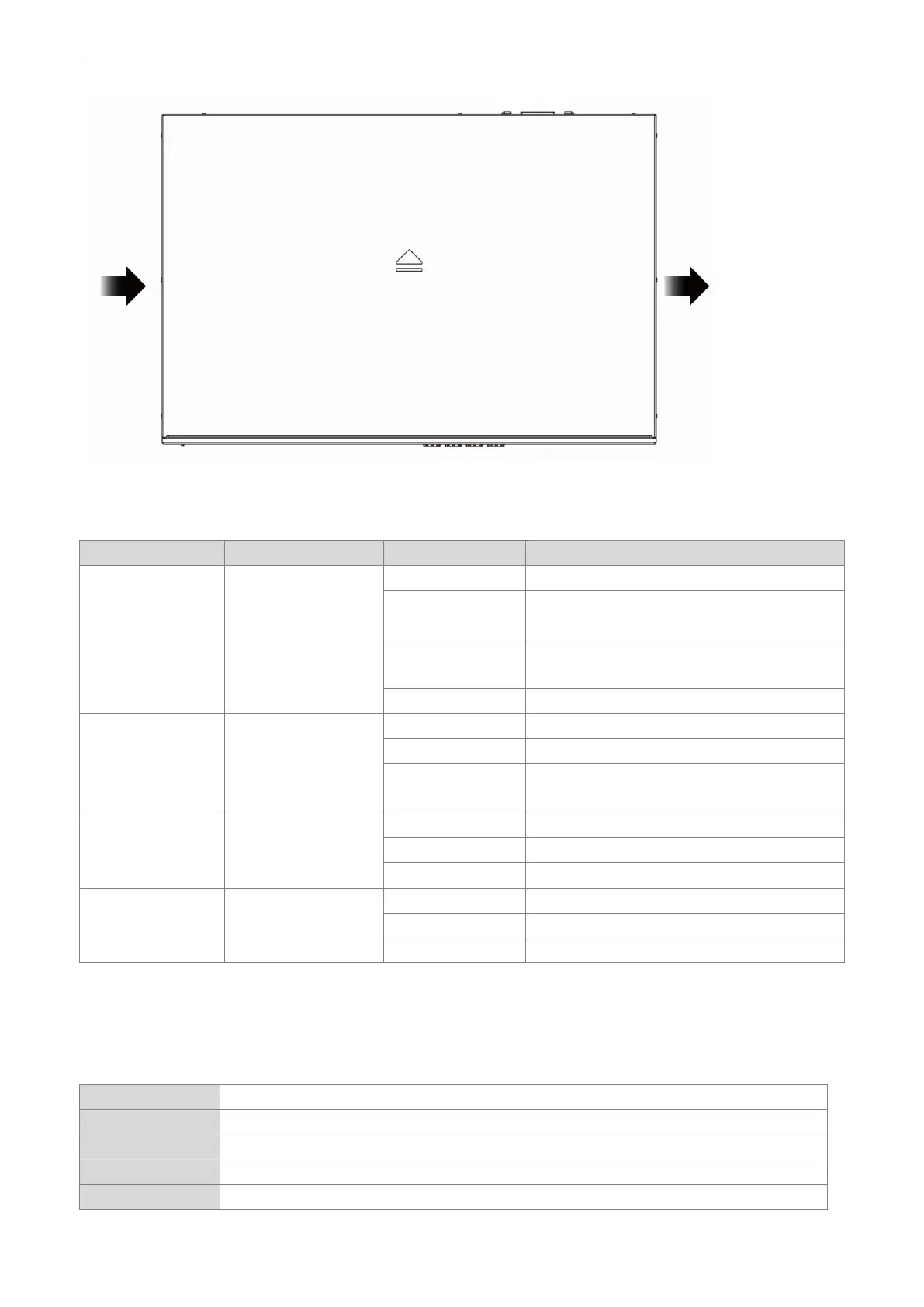

Ruijie RG-NBS3100 Series Switches Hardware Installation and Reference Guide Product Overview
10
LED
LED
Panel Identification
State
Meaning
System status LED
Status
Off
The switch is not receiving power.
Blinking green
(0.5 Hz)
The switch is running, but the alarm of
insufficient PoE power prompts.
Blinking green
(10Hz)
The switch is being upgraded or initialized.
Solid green
The switch is connected to Ruijie Cloud.
10/100/1000Base-T
Ethernet port status
LED
1-24
Off
The port is not connected.
Solid green
The port is connected at 10/100/1000 Mbps.
Blinking green
The port is receiving or transmitting traffic at
10/100/1000 Mbps.
RJ45 port PoE
status LED
1-24
Off
PoE is not enabled.
Solid green
PoE is enabled. The port is operational.
Blinking green
The port has a PoE fault of overload.
SFP port status LED
25F-28F
Off
The port is not connected.
Solid green
The port is connected.
Blinking green
The port is receiving or transmitting traffic.
1.3 RG-NBS3100-8GT2SFP
Technical Specifications
Model
RG-NBS3100-8GT2SFP
CPU
Built-in CPU, single-core processor, 500 MHz
Flash Memory
16 MB
SDRAM
DDRIII 256 MB
Optical Module
See Appendix B.
