Ruijie RG-NBS3100 Series Switches Hardware Installation and Reference Guide Product Overview
16
The switch reboots after the reset button is pressed for less than 2 seconds.
The switch restores the default factory settings after the reset button is pressed for more than 5 seconds (until the
status LED blinks).
When the PoE mode switch-over button is pressed, the port mode LED turns on, indicating the PoE mode of the
port. When the PoE mode switch-over button is released, the port mode LED turns off, indicating the switching
mode of the port.
Back Panel

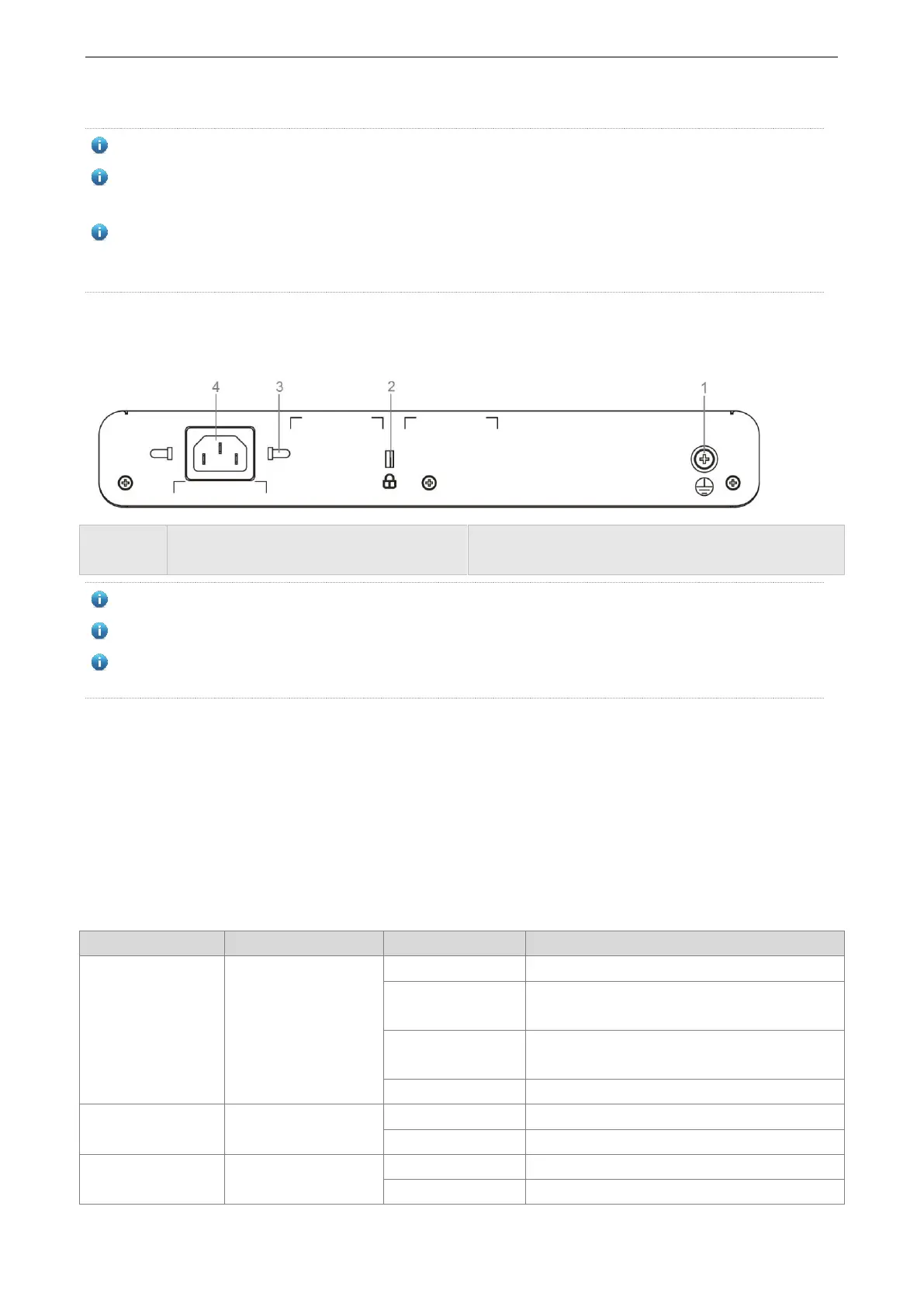

Figure 1-13 Back Panel of RG-NBS3100-8GT2SFP-P
1. Protective earthing terminal
2. Hole for anti-theft lock
3. Power cord retention clips
4. Three-hole AC power receptacle
This device relies on the separate protective earthing terminal.
The device installation shall be permanently connected to building earth by a skilled person.
The device shall be intended to be used in a location having equipotential bonding(such as a telecommunication
centre, a dedicated computer room, or a restricted access area).
Heat Dissipation
RG-NBS3100-8GT2SFP-P adopts natural heat dissipation, thereby ensuring normal function of the device in the
specified environment. 10 cm distance space should be reserved at both sides and the back plane of the cabinet to
allow air circulation. It is recommended to clean the device once every 3 months to avoid dust from blocking vents.
LED
The switch is not receiving power.
The switch is running, but is not connected to
Ruijie Cloud.
The switch is being upgraded or initialized.
The switch is connected to Ruijie Cloud.
Indicates the switching mode.
10/100/1000Base-T
Ethernet port status
The port is not connected.
The port is connected at 10/100/1000 Mbps.
