Optical Fiber Connection
For the optical fiber ports, select single-mode or multiple-mode optical fibers for connection according to the fiber

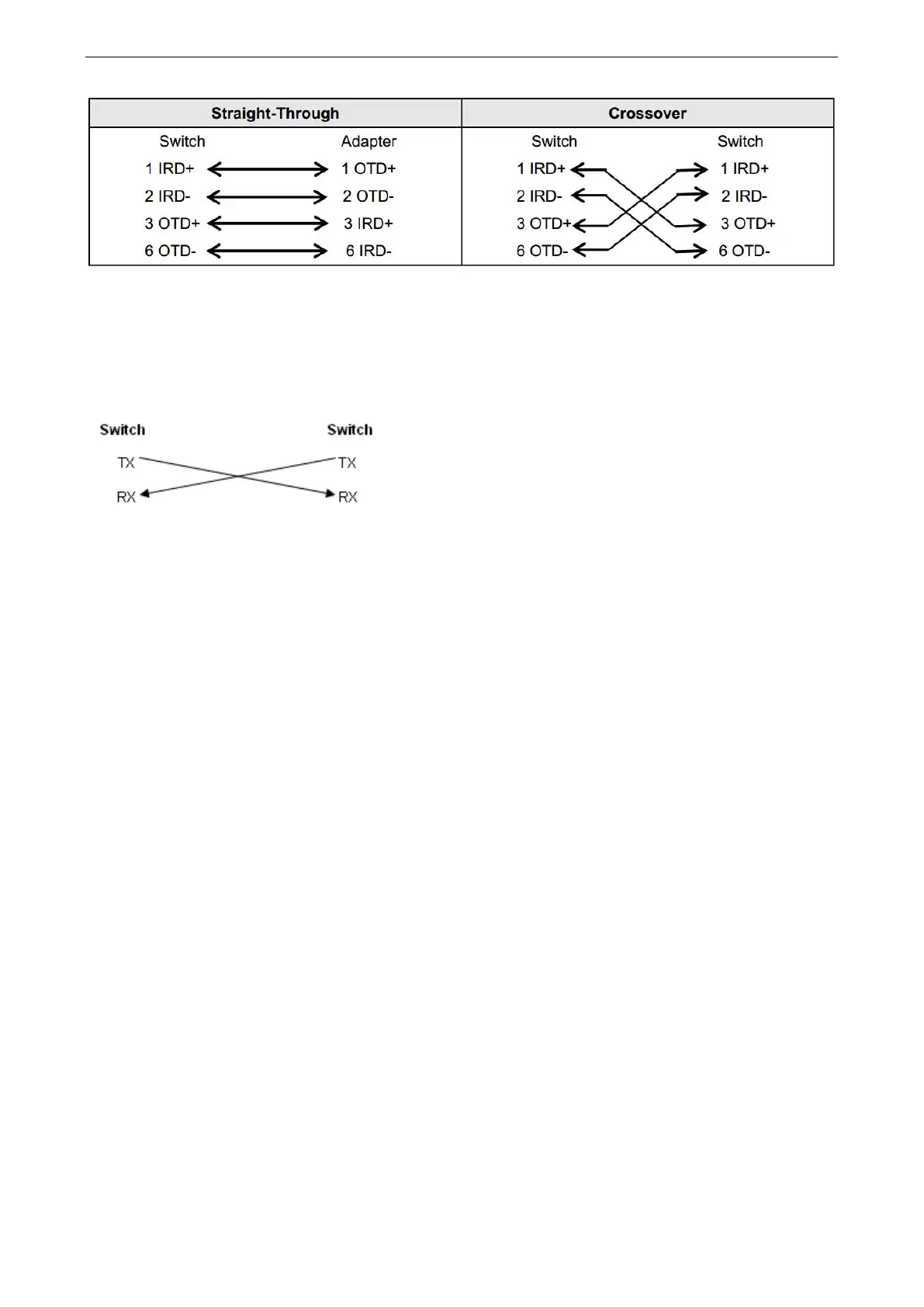

module connected. The connection schematic diagram is shown in Figure A-4:
Figure A-4 Schematic Diagram for optical fiber connection
