Ruijie RG-NBS3200 Series

Ruijie RG-NBS3200 Series Switches Hardware Installation and Reference Guide Product Overview
9
Product Appearance
On the front panel, the RG-NBS3200-24SFP/8GT4XS Ethernet switch provides 24 SFP ports (8 Gigabit combo ports)
and 4 SFP+ ports. On the back panel, it provides an AC power port.

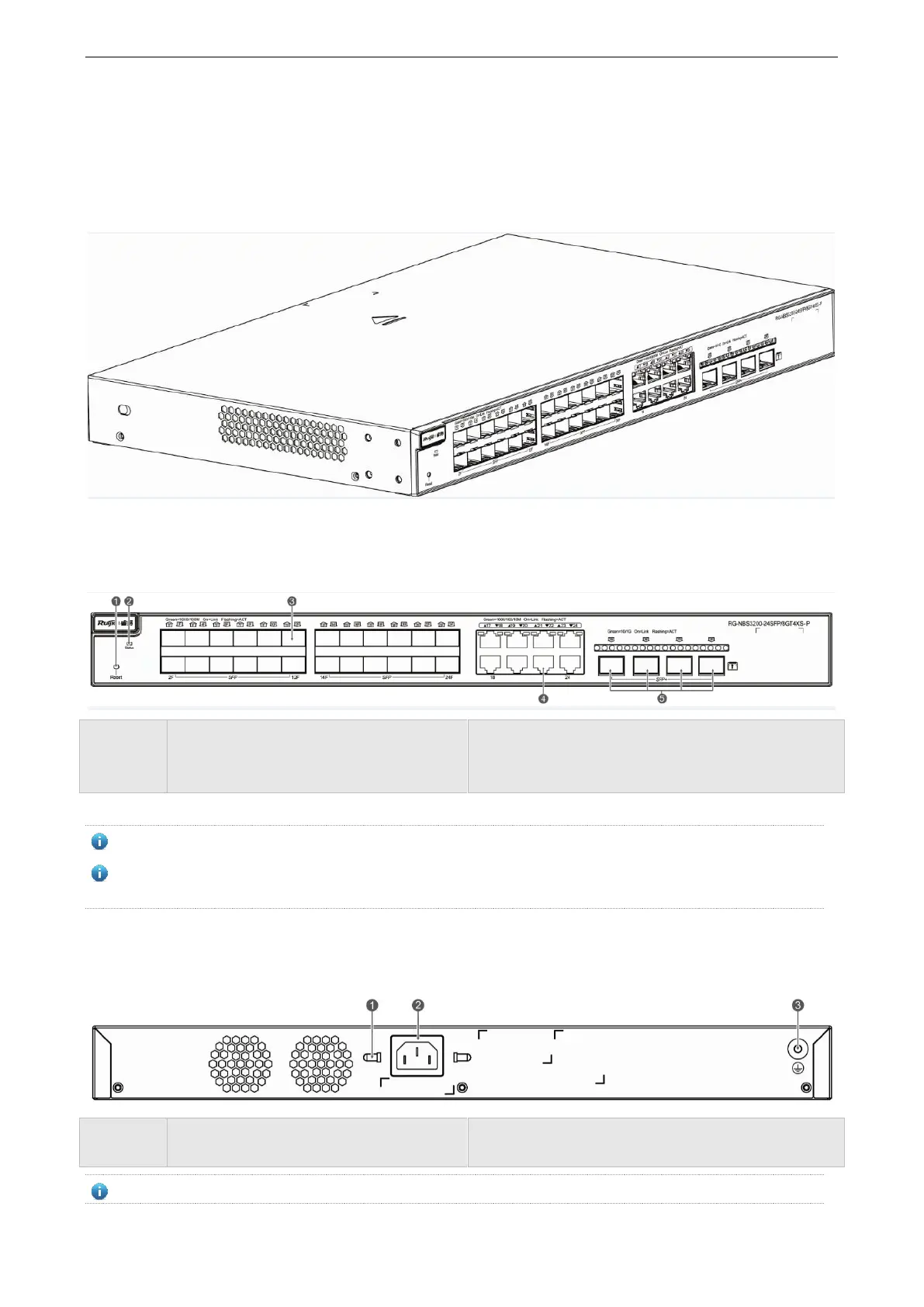

Figure 1-5 Appearance of RG-NBS3200-24SFP/8GT4XS
Front Panel
Figure 1-6 Front Panel of RG-NBS3200-24SFP/8GT4XS
Note:
1. Reset button
2. System status LED
3. 1000Base-X SFP port
4. Combo port
5. 10GE SFP+ port
The switch reboots after the reset button is pressed for less than 2 seconds.
The switch restores the default factory settings after the reset button is pressed for more than 5 seconds (until the
status LED blinks).
Back Panel
Figure 1-7 Back Panel of RG-NBS3200-24SFP/8GT4XS
Note:
1. Power cord retention clips
2. Three-hole AC power receptacle
3. Protective earthing terminal
This device relies on the separate protective earthing terminal.
