MODEL F7317603
8
C. Pipeline installation
Install control valve

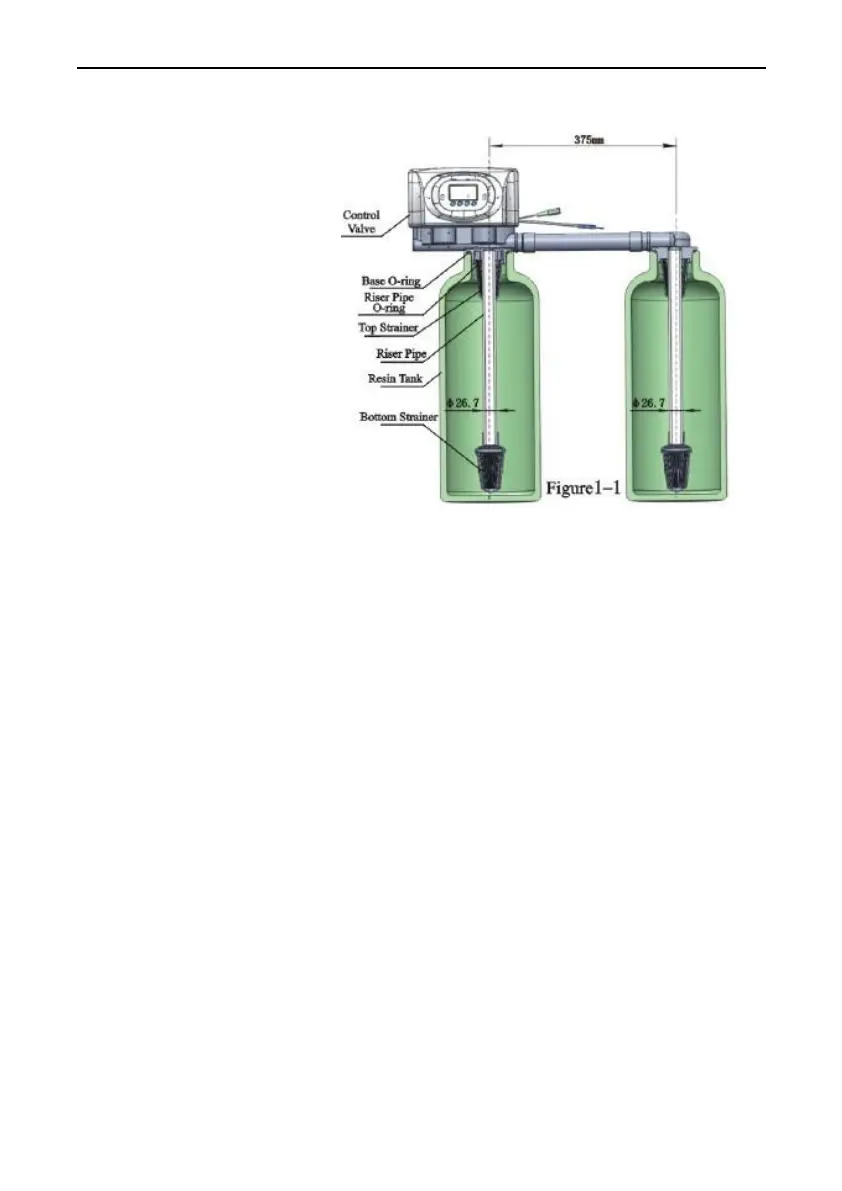

a. As the Figure 1-1
shows, select the riser
pipe with 26.7mm OD,
glue the riser pipe to the
bottom strainer and put it
into the mineral tank, cut
off the exceeding tube
out of tank top opening.
b. Fill specified quantity
of resin to the tank (The
distance between two
tank centers is 375mm).
c. Screw top distributor into valve.
d. Insert the riser tube into control valve and screw tight control valve.
e. Install another tank with base connector as above steps.
Notice:
The length of riser tube should be neither higher 2mm nor lower
5mm tank top opening height, and its top end should be
rounded to avoid damage of O-ring inside the valve.
Avoid floccules substance together with resin to be filled in the
mineral tank.
Avoid O-ring inside control valve falling out while rotating it on
the tank.
Install animated connector
As Figure1-2 shows, put the sealing ring into nut of animated
connector, and screw in water inlet.
Install flow meter
As Figure1-2 shows, put the sealing ring into nut of flow meter,
screw in water outlet; insert the sensor into flow meter.
