MODEL 82602-F79A-LCD/82602B-F79B-LCD/82604-F82A-LCD/82604B-F82B-LCD
4
Interval backwash times (Only for up-flow regeneration valve)
It could set up interval backwash times for up-flow type A-11, 12, 13,
which means several times of services but one time of backwash. The
setting of interval backwash time is depending on the local water turbidity.
(The lower the turbidity is, the longer of the interval backwash time can be
set)
Rinsing frequence
It could set up rinsing frequence when selection of filter mode A-21,
which means several times of backwash and fast rinse but one time of
service (Need set). In this mode, the brine line connector need be sucked
in this working mode.
Signal output
There is a signal output connector on main control board. It is for
controlling external wiring ( Refer to Figure from Figure3-1 to Figure 3-8).

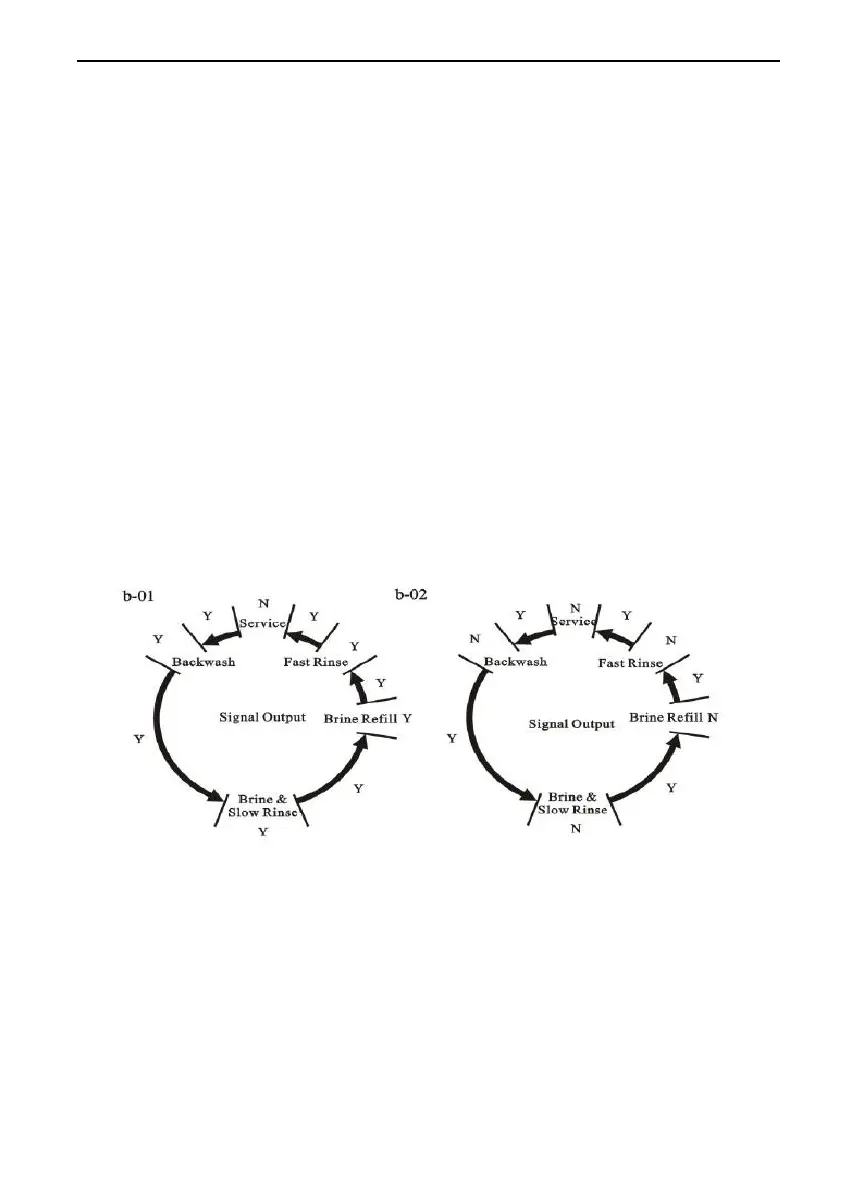

There are two kinds of output modes.b-01 mode: Turn on start of
regeneration and shut off end of regeneration; b-02 mode: Signal available
only intervals of regeneration cycles and in service.
Remote handling input
This connector can receive external signal, used together with PLC,
and computer etc. to control the valve. （Application refer to Figure 3-11）
Disinfection connector ( It is necessary to separately matching
with a disinfection device)
The valve has the disinfection connector, which can supply
DC5V/200mA power output under the Brine status. It can make a part of
brine water electrolyzed, producing hypochlorous acid to sterilize and
disinfect the resin. (Refer to Figure P20)
