Make sure that you have:
• Computer with Windows 7/8/10
• FM device with a predownloaded configurator pack
• USB A to USB mini cable
• The required tools (see Appendix A)

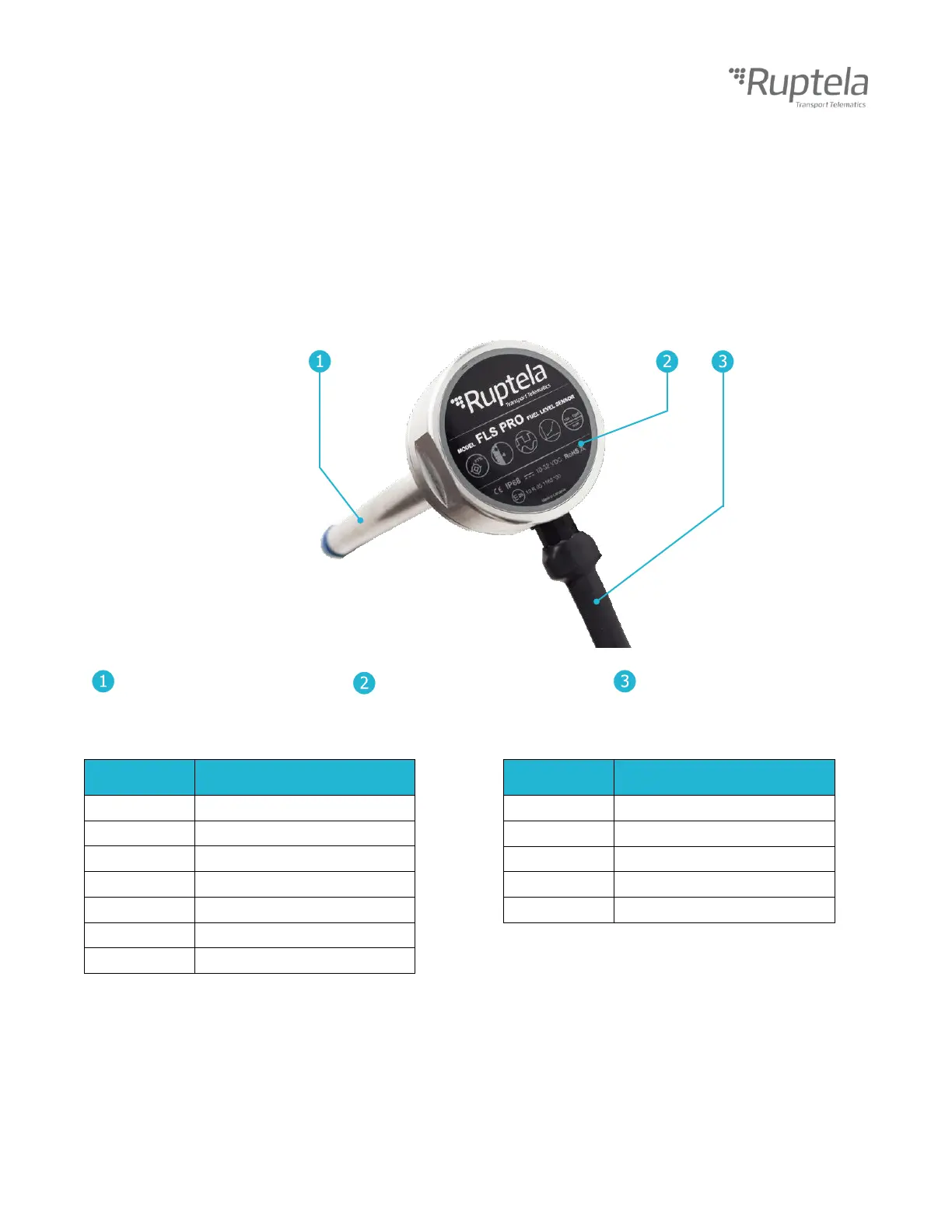

Device overview
Probe
12 Measurement head
Signal cable
Device pinout (FLS Pro)
Wire color
Description
Red
Power supply (10 – 32 V DC)
Black
Ground connection
Orange
RS-232 RX
Pink
RS-232 TX
Grey/Red
RS-485 A
Yellow
RS-485 B
Grey/White
Voltage output
Device pinout (FLS Eco)
Wire color
Description
Red
Power supply (10 – 32 V DC)
Black
Ground connection
Orange
RS-232 RX
Pink
RS-232 TX
Grey/White
Voltage output
