RUPTELA FLS Pro - Page 8

8 support@ruptela.com | +370 5 2045030 www.ruptela.com

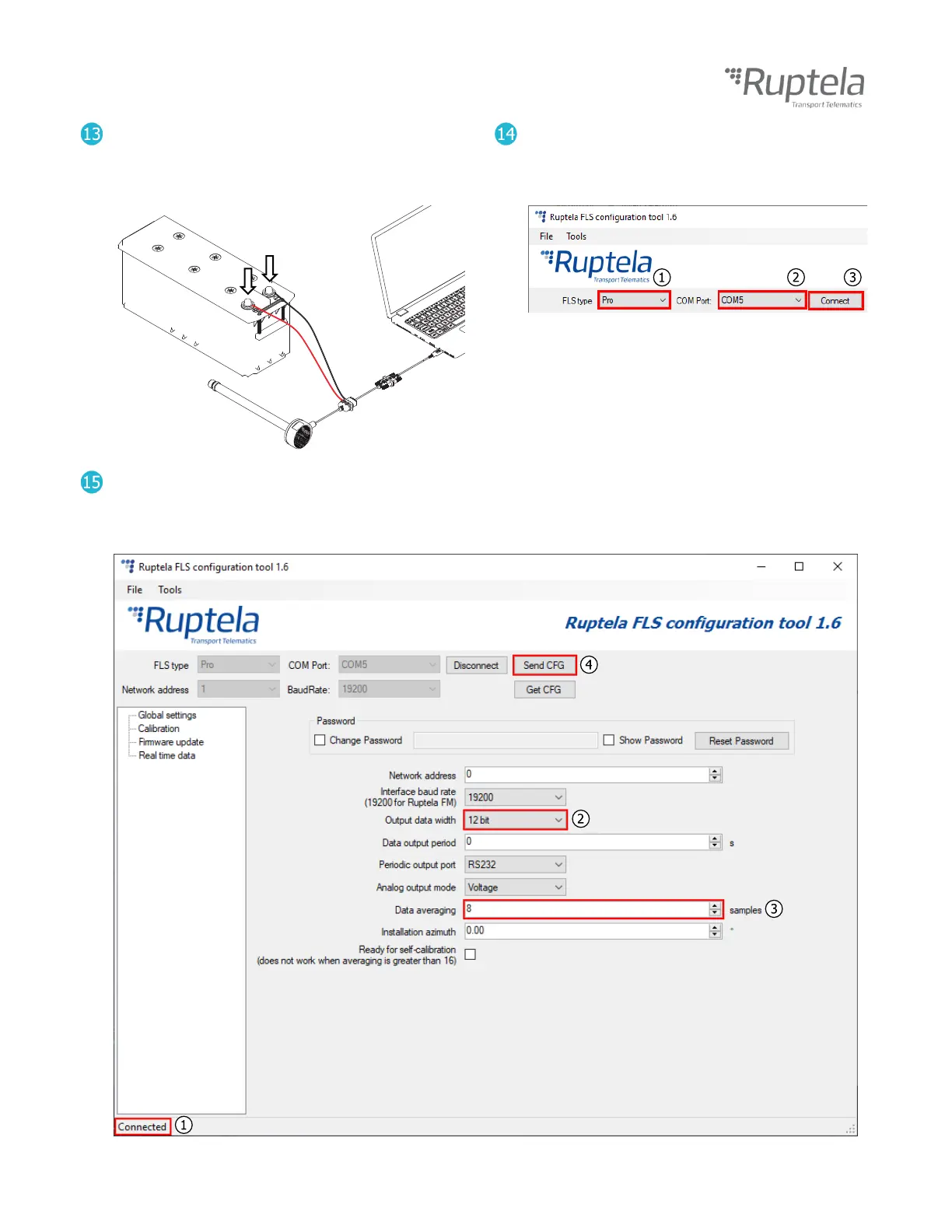

Connect the measurement head to your
computer.
Use an external power supply to power the
measurement head.
Open the FLS configurator.
Select your FLS type. (1)
Select the COM port. (2)
Click Connect. (3)
Check FLS connection status (should be Connected). (1)
Set Output data width to 12 bit . (2)
Before starting installation, set Data averaging to 8 samples. (3)
Click Send CFG to upload the config to the FLS. (4)
Connect
External power supply (10-32 V DC)
