O&M Manual –90E1720004
Section 8 Operation Page 36 of 52
RPTCS Control System
Note: The following is a brief overview of the basic setup and control tasks of the RPTCS
controller. There are many other control features, internal and external accessories that may be
included. Please refer to Instruction Manual 90E1730001 and the specific project documents
for more information on these features.
Overview
The RPTCS is a modular control and monitoring system designed specifically for low- and
medium-voltage transfer switch applications. The RPTCS provides the following key benefits:
1. Modular design reduces the number of spare components for maintenance and
testing.
2. Multiple communication protocols allow simple integration into monitoring and
control systems.
3. Graphical control panel Interface provides local control and access to system
information.
4. Integrated pushbuttons and LED Indicators reduce external components and wiring.
5. Automation FlexLogic™ with interlocking and programmable logic control.
Graphical Control Panel Overview
Graphical Control Panel overview
Graphical Control Panel overview
The Graphical Display is a 320 by 240
pixel (3.5 inch) backlit color LCD
screen that provides the operator with
rapid access to relevant information on
the ATS status, controls and settings
using intuitive sequences.
The Graphical Display is a 320 by 240
pixel (3.5 inch) backlit color LCD
screen that provides the operator with
rapid access to relevant information on
the ATS status, controls and settings
using intuitive sequences.
Function Keys
to perform the
labeled
functionality.
Function Keys
to perform the
labeled
functionality.
Red & Green LED Indicators
to provide:
•Alarm Indication
•Time delay Indication
•Transfer Inhibit Indication
•Source Available Indication
•Source Connected Indication
Red & Green LED Indicators
to provide:
•Alarm Indication
•Time delay Indication
•Transfer Inhibit Indication
•Source Available Indication
•Source Connected Indication
Front Panel Control
Pushbuttons
for direct access to:
•Alarm Resets
•Various System Tests
•Control Mode Screens
•Information Screens
Front Panel Control
Pushbuttons
for direct access to:
•Alarm Resets
•Various System Tests
•Control Mode Screens
•Information Screens
Front Port
Communication Access
USB 2.0 Type Mini-B for
serial communication with
Laptop to download,
upload of data or real time
control functions.
Front Port
Communication Access
USB 2.0 Type Mini-B for
serial communication with
Laptop to download,
upload of data or real time
control functions.

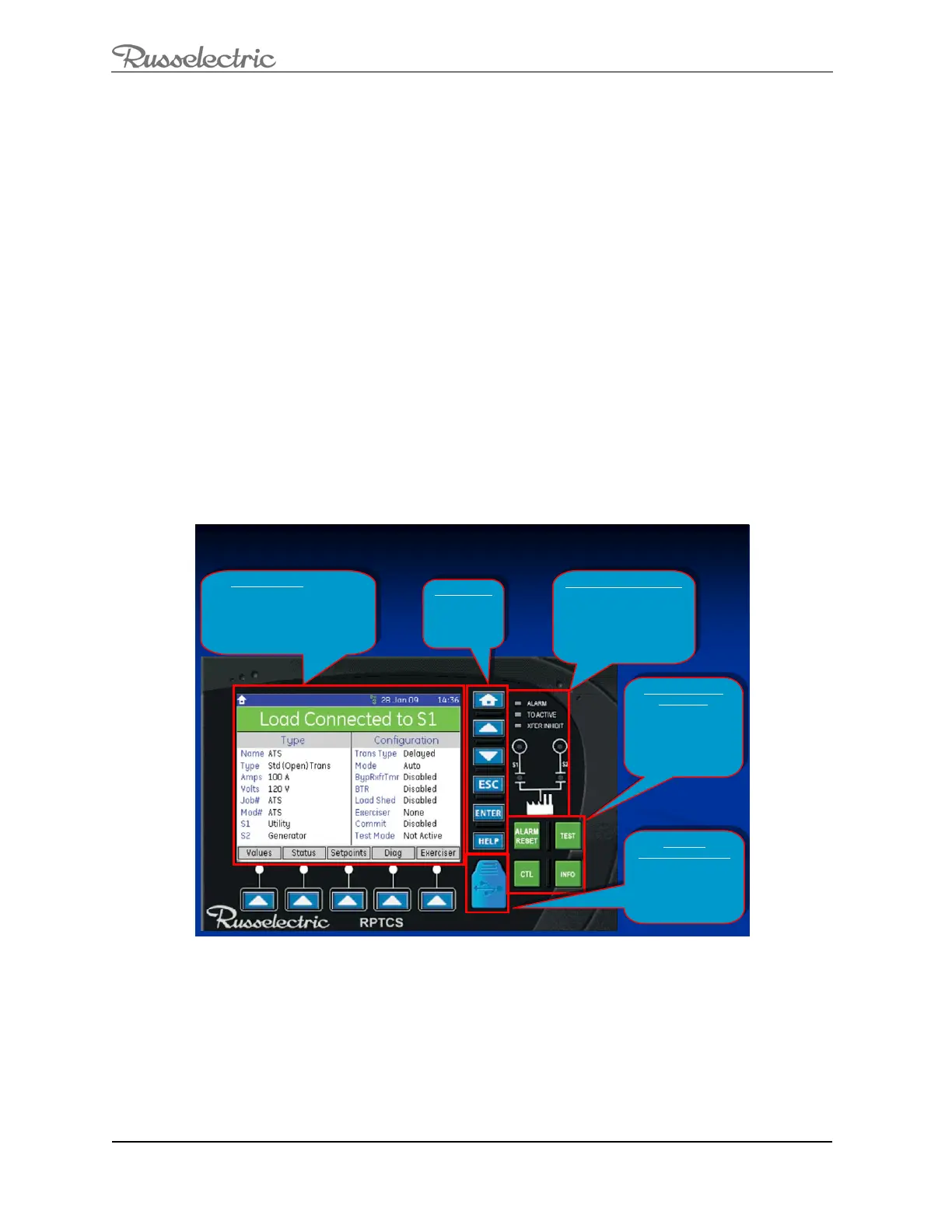

Figure 27: Graphical Control Panel Overview
