6
Russound A-C68 Installation Manual
The A-K5L keypad provides individual zone control of the system. It has amber
or green backlit soft-touch buttons for volume, power and source selection for
up to 12 sources. The User Menu allows for adjustments to the audio properties
of the room, such as bass, treble, balance, etc. A built-in IR receiver with LED
confirmation allows for use of remote controls.
LCD PANEL - 5-character amber or green backlit display shows
source name and volume.
VOLUME LEVEL - 20-segment volume level bars increase from left to
right to indicate volume level. Also shows user option settings.
VOLUME UP/DOWN
- Raises/lowers the volume for the room/
adjusts User Menu settings.
STATUS LED - Green LED lights to show Status “on” and turns off
when Status is “off”
IR CONFIRMATION LED - Red LED blink confirms IR
signal reception.
IR RECEIVER - Receives IR signals and passes them to the controller
and source equipment. Source components attached to IR emitters
in an A-BUS system can be controlled with their own remote controls,
A-SRC1 (with A-C68 controller) or A-LRC2 learning remote aimed at
the A-K5L’s IR window.
POWER - Turns zone ON or OFF when pressed once. If connected to
an A-C68 controller, when ON, press and hold will turn on all rooms
(Party mode). If the A-K5L is connected to a multisource hub, an “All
Off” can be performed by a press and hold of the power button when
the keypad is OFF. Status LED remains lit when keypad/zone is OFF if
any other zone in system is ON.
SOURCE SELECT
(Multi-source controller) - Press and release toggles
through the available sources. Press and hold brings up the User
Options Menu for Loudness, Bass, Treble, etc.

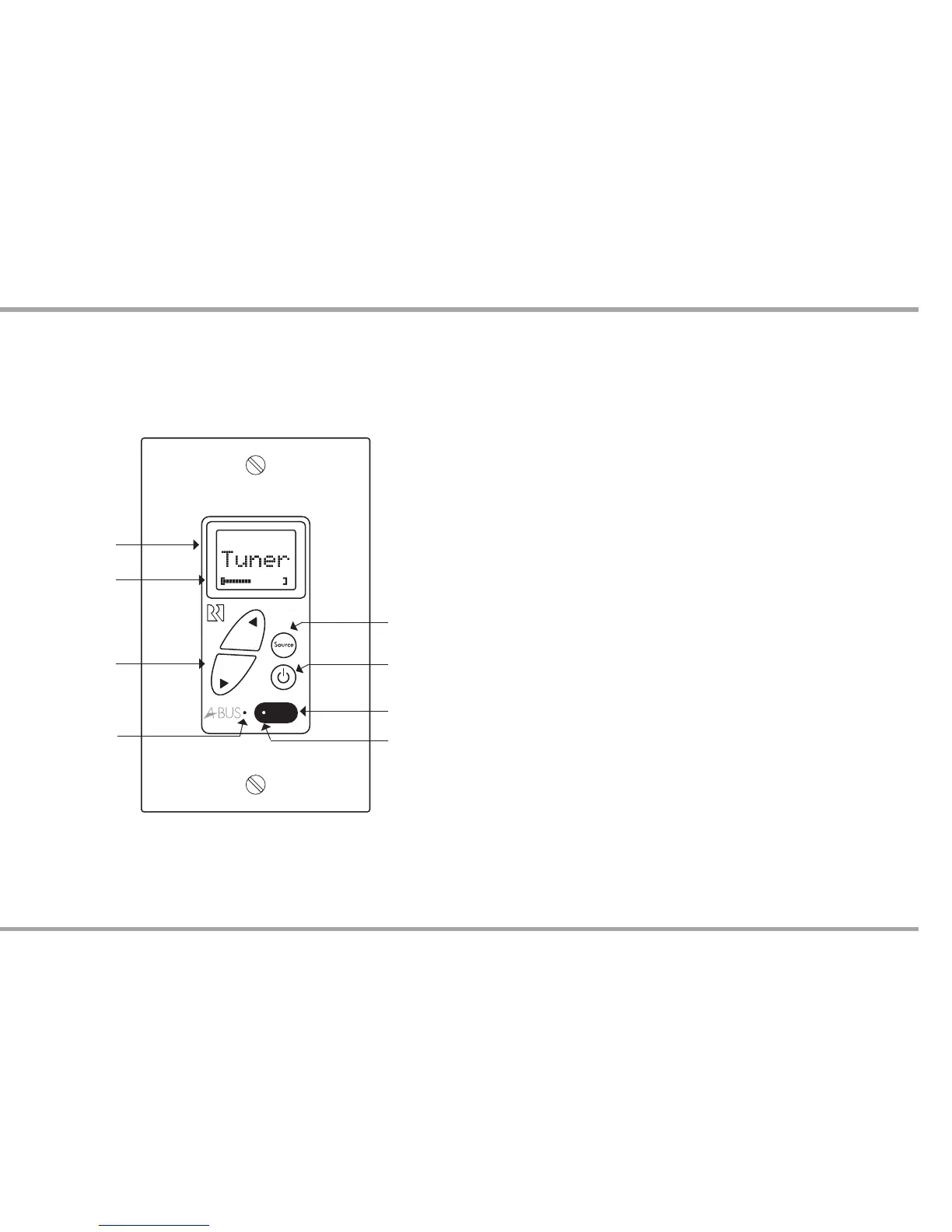

A-K5L Keypad
1
1
2
2
3
3
4
4
8
7
6
5
8
7
6
5
