Russound A-C68 Installation Manual
The A-KSC keypad connects to an A-K5L keypad to add optional source control
and numeric capability. The amber or green backlit buttons provide primary
source controls when pressed, such as stop, play, next, etc.
When the Numeric button is pressed, it becomes backlit in the opposite color
of the backlight (green if amber backlight and vice versa), and changes the
buttons to numeric entry (0 - 9).
Pressing the Numeric button also sends a Prefix command of “Disc.”
A second press of the Numeric button sends a Suffix command of “Enter”
and puts the keypad back into the primary control mode. If the button is not
pressed the second time, a 6-second time out will send the Suffix command
and exit Numeric mode.
SLEEP - Sets a sleep timer for the zone. When
pressed, shows time in minutes on A-K5L keypad.
Press Sleep until desired time is displayed
(0-60 minutes in 15 -minute increments).
PRIMARY SOURCE CONTROLS - Functions on
outer edge of buttons are default or normal
operation for each selected source. These include
play, stop, forward, back, pause, etc.
NUMERIC CONTROLS - Once numeric control
is initiated, the primary control buttons now
represent the numeric value when pressed (0 - 9).
NUMERIC SHIFT - Press to shift buttons to
numeric control or entry. Also issues Prefix
command “Disc” and Suffix command “Enter.”
1
2
3
4
1
2
3
4

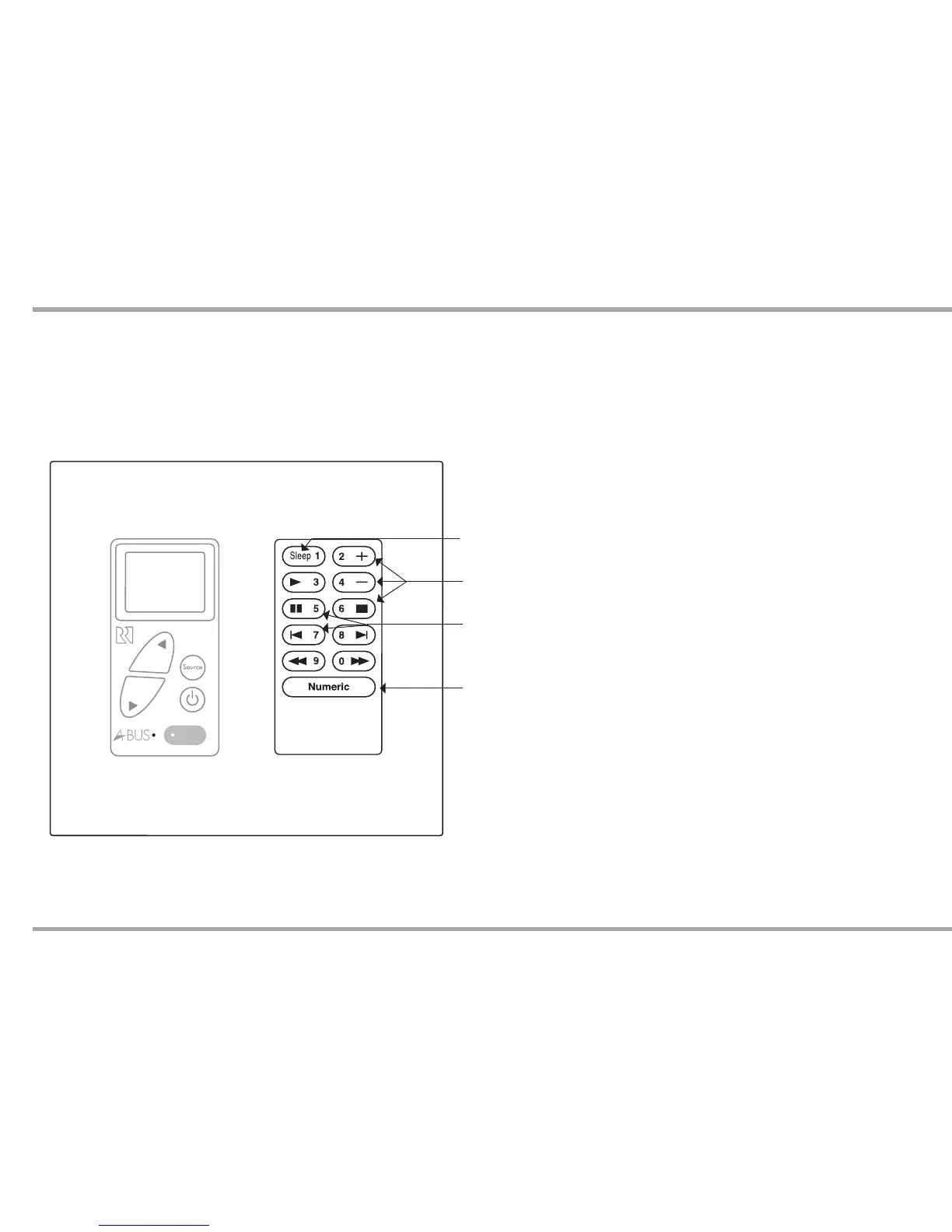

A-K5L Keypad A-KSC Keypad
To Next Page
