RUTHMANN ECOLINE RS200 - Page 22

USE AND MAINTENANCE MANUAL R68090150
ORIGINALE
RUTHMANN ITALIA S.r.l. Via Santa Maria del Piano di sotto,91/B – 47854 Montescudo-Monte Colombo (RN) - ITALIA
pag. 22
Max development from ground
:
18 m (from the bottom of cage)
Max lateral outreach
:
10,5 m (120 kg) - 8,90 m (200 kg) – 8,10 m (250 kg)
Basket dimensions
:
1300 x 700 x 1100 mm
Basket material
:
aluminium
Basket enter
:
through a frontal gate which can be opened lifting a
specific bar with an automatic closing. The basket has a
stair way for making easier the access.
Basket Rotation
:
± 80°
Turret Rotation
:
360° (opt. 220°+220°)
Platform mass
:
1569 kg
Max manual strength
:
400 N (strength that can be done by the operators in
basket)
Max wind speed
:
45 km/h (6°Beaufort scale)
Electric system tension
:
12 V
Oil tank capacity
:
40 l
Max flatcar gradient
:
1° (as to the horizontal surface)
Max hydraulic system pressure
:
210 bar
Pump delivery
:
15.73 l/min (rest engine) – 21.45 l/min (throttle engine)
Revolution per minute – RPM
:
1100 rpm (rest engine) – 1500 rpm (throttle engine)
Vehicle model
:
MERCEDES SPRINTER 314 CDI
GVW
:
3,5 t
Wheelbase
:
3665 mm
Stabilizer axle base
:
3155 mm
Stabilizer gage
:
Front 2980 mm - Rear 1950 mm
Max reaction at ground
:
Front 2275 kg - Rear 1752 kg

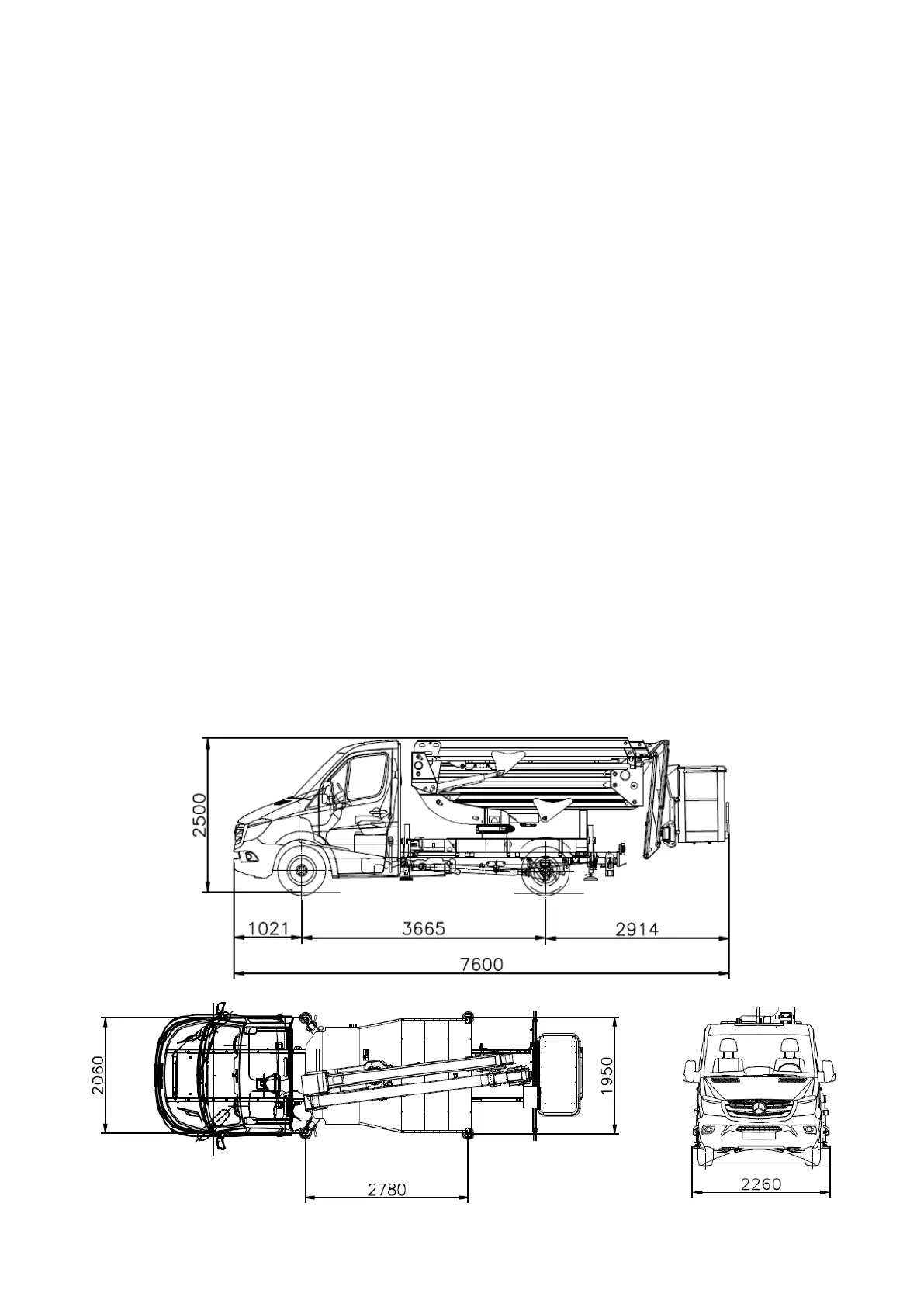

4.3 CONFIGURATION FOR ROAD CIRCULATION
