pag. 21
aluminium.
9. Front stabilizer.
:
it is a hydraulic jack which is fixed onto the cross-members of the
basic-counterframe; it is provided with an articulated plate. It is
activated by the stabilizer controls and it is extensible 400 mm from
the outside.
10. Turret
:
it is the fulcrum element fixed at the lower boom. Its rotation is
activated by a hydraulic motor.
11. Main boom cylinder
:
it activates the movement of the upper boom.
12. Lower boom cylinder
:
it activates the movement of the lower boom.
13. Lower boom
:
it is made up of 4 elements fixed on the articulation of the lower
boom.
14. Rear stabilizer
:
it is a hydraulic jack which is fixed onto the cross-members of the
basic-counterframe; it is provided with an articulated plate. It is
activated by the stabilizer controls.
15. Articulation of lower boom
:
it i san element on which are connected the 4 lower booms.
16. Articulation of Jib
:
connection elements of the jib boom.
17. Basket leveling cylinder
:
it activates the leveling of the basket.
18. Jib cylinder
:
it activates the movement of the jib.
19. Basket support
:
it is the support structure necessary to fix the basket. It is fitted with a
basket rotator motor.

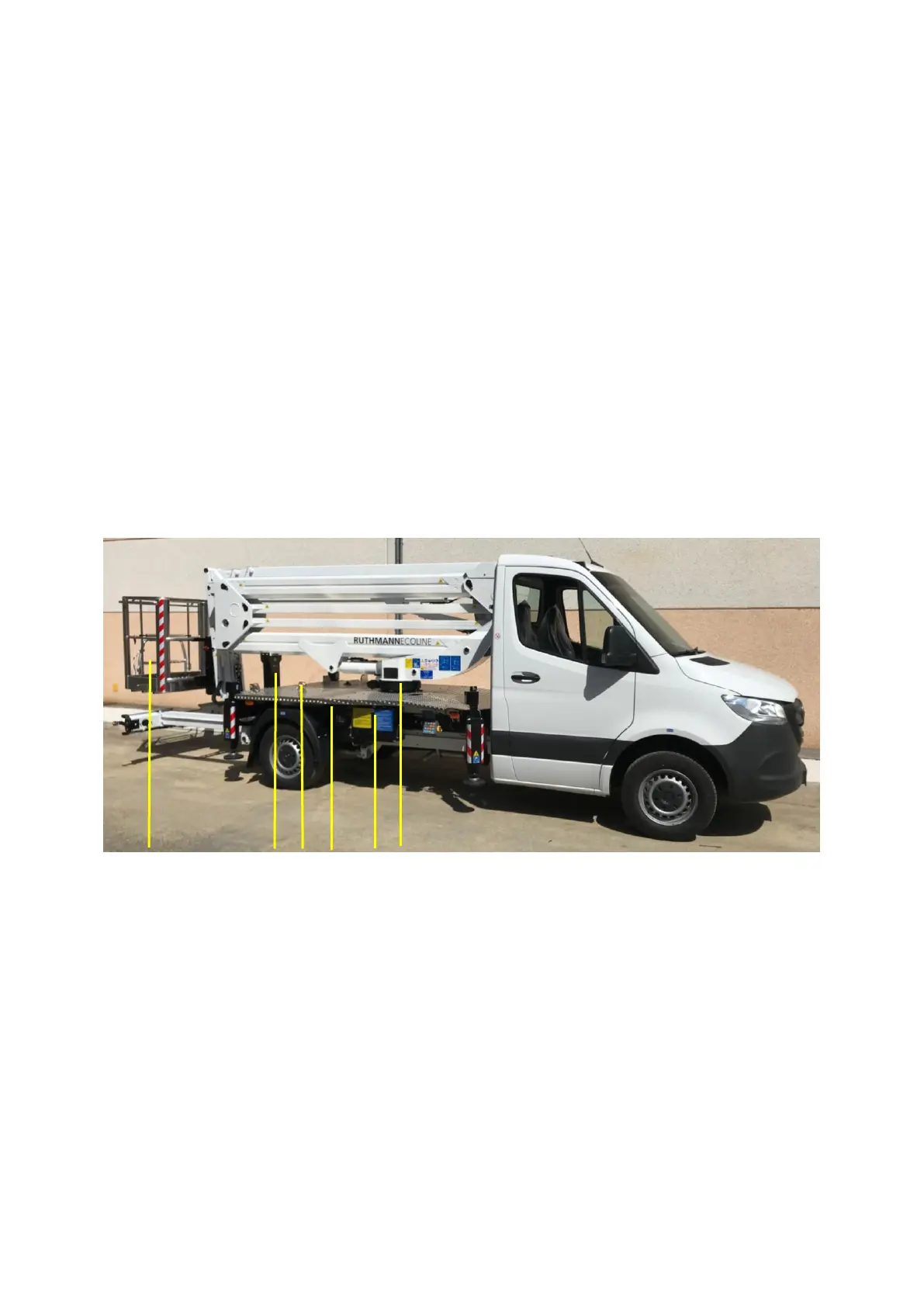

20 21 22 23 24 25
20. Entrance ladder to the basket
:
to simplify the access to the basket.
21. Boom support at rest position
:
it supports the main boom at rest and transport position.
22. Oil tank
:
it is included in the structure of the basic-counterframe and contains
the oil which feeds the hydraulic system.
23. Basic-counterframe with
flatcar
:
it is the support structure necessary to fix the aerial platform to the
vehicle.
24. Emergency controls
:
they are necessary to take basket back to ground in case of engine
failure. They can be activated by the operator at ground.
25. Ratiomotors in turret
:
they activate the turret movement by means of the transmission
between pinion and fifth wheel.
4.2 TECHNICAL DATA
Model
:
ECOLINE RS200
Max Basket Capacity
:
250 kg
