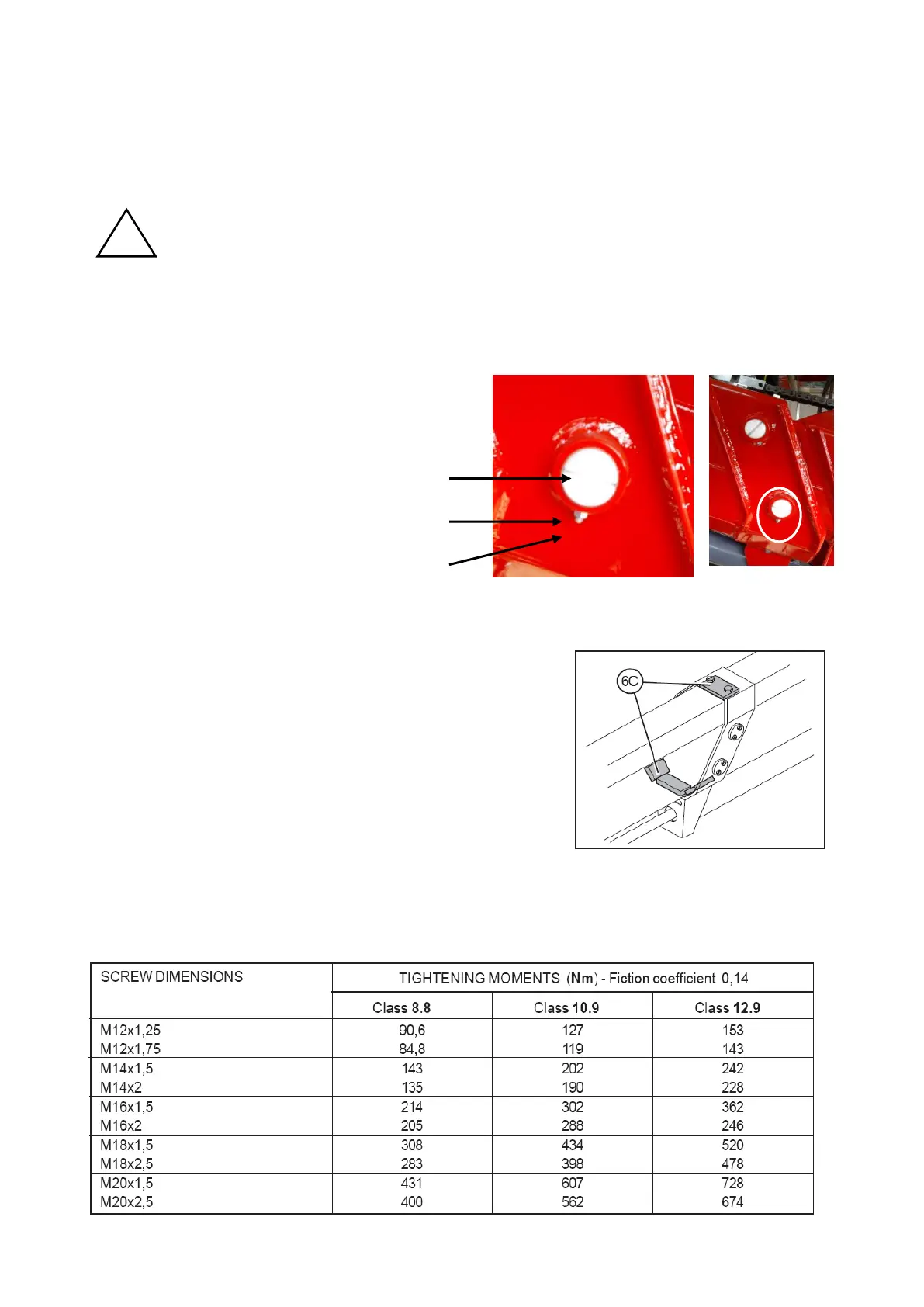

9.7. CHECK OIL LEVEL
Check oil level keeping the machine at its transport position and on a level ground. Check oil level on the
level indicator (oil tap bar). If necessary, fill up with indicated oil.
WARNING
Do not disperse pollutant liquids.
9.8. REGULATION OF THE ADJUSTABLE PLUGS
There are some adjustable plugs on the heads of the extractable parts, where some ertalon sliding blocks
are located (they keep the extractable parts during extraction).
To adjust, do as follows:
1. unscrew nuts B and unloose dowels C.
2. rotate plugs A to adjust.
3. screw dowels C and nuts B.
9.9. WORN OF THE SLIDING BLOCKS
Sliding blocks 6C are fixed to the extractable parts by means
of proper screws.
Replace these screws when they touch the extractable parts
because of wear of sliding blocks.
9.10. CHECK SCREW TIGHTENING
Check all fixing elements of machine members by means of a dynamometric key and respect the
tightening couples indicated in the following chart.
