6.6 DESCRIPTION OF HYDRAULIC CONTROLS OF STABILIZERS (EMERGENCY PROCEDURE)
In normal operating condition, press the Push button “Jack activation” (1) and simultaneously
operate on outriggers’ levers (1,2,3) for stabilizing the platform.
1 2 3
1. Lever to control the stabilizer B: front left
2. Lever to control the stabilizers C+D: rear left and right
3. Lever to control the stabilizer A: front right

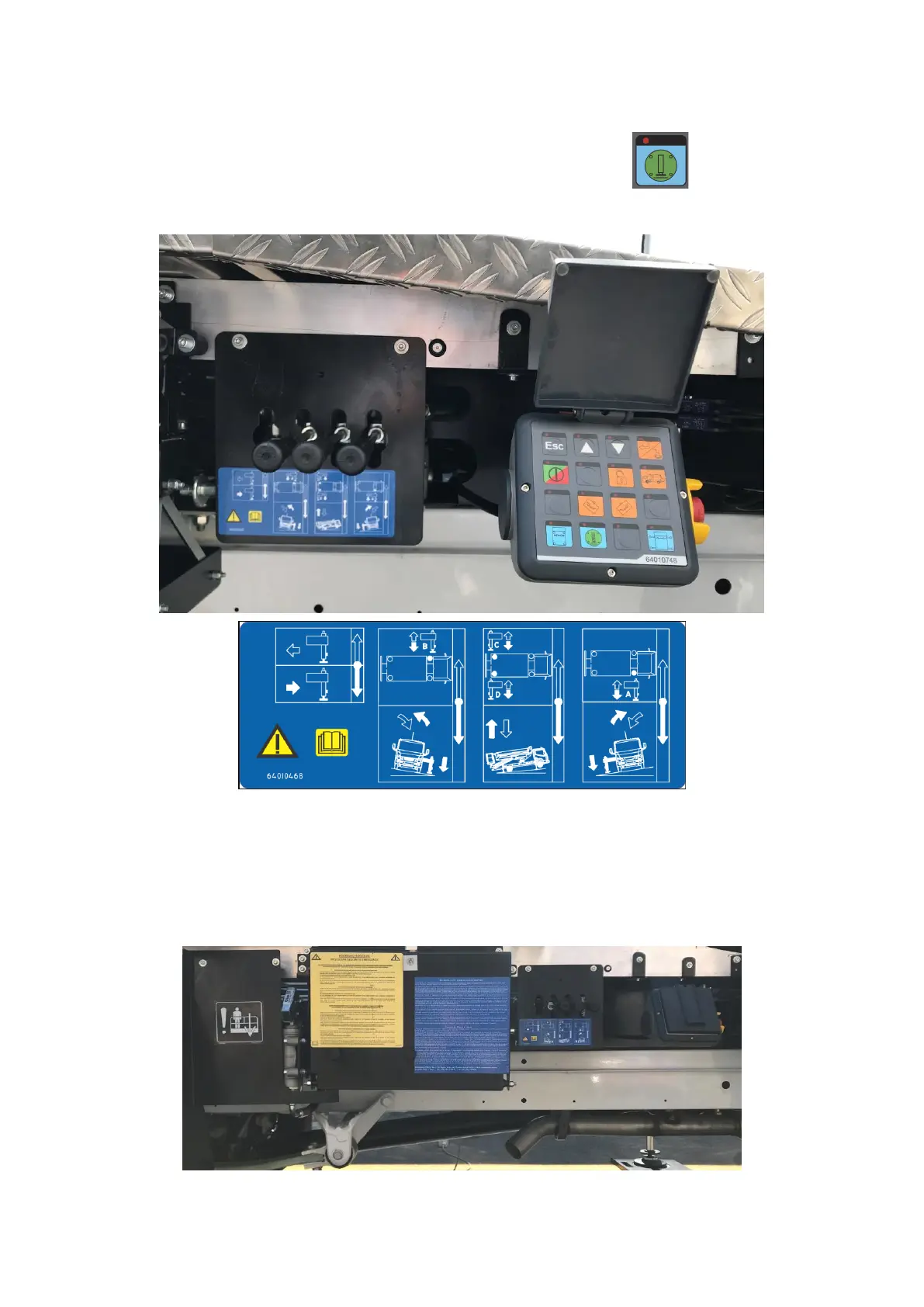

In case of an emergency, open the emergency compartment located on the right side of platform:
In case of failure of the combustion engine, operate the manual pump and follow this procedure:
