USE AND MAINTENANCE MANUAL R68090150
ORIGINALE
RUTHMANN ITALIA S.r.l. Via Santa Maria del Piano di sotto,91/B – 47854 Montescudo-Monte Colombo (RN) - ITALIA
pag. 42
7. INSTRUCTION PLATES FOR OPERATION AND USE OF THE MEWP
There are basically two types of plates found on the machine:
- the ones with a YELLOW background indicate DANGER, WARNING
- the ones with a BLUE BACKGROUND indicate OBLIGATIONS, RULES, PROHIBITIONS, INFORMATION

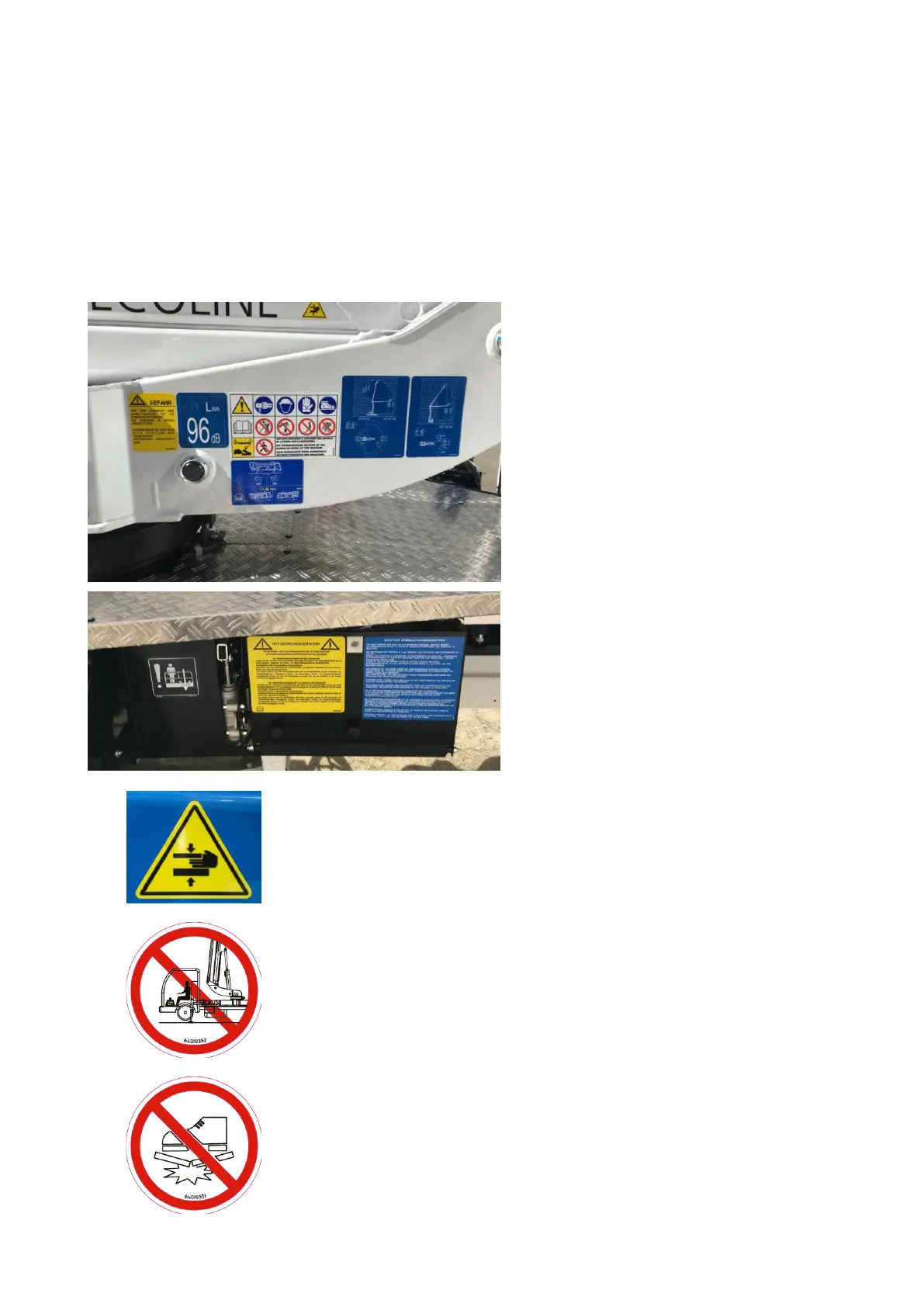

7.1 INSTALLATION AND POSITIONING OF PLATES ON CHASSIS AND TURRET
A-Turret/Booms
1. Working diagrams
2. Warning decals on stabilization
procedure
3. Label “Sound Emission”
4. General Warnings (Obligations and
Prohibitions)
5. Attention: stabilize correctly the
platform before use
6. Emergency controls
7. Emergency lowering procedure
8. Main operating instruction
WARNING SYMBOL: DANGER OF HANDS BEING CRUSHED
WHEN IN A RAISED STATE, THE DRIVER´S CABIN MUST BE EMPTY AND
REMAIN FREE OF LOADS. THUS, WHEN THE FRONT AXLE IS RAISED, IT IS
PROHIBITED TO REMAIN IN THE DRIVER´S CABIN! ADDITIONAL LOAD IN
THE DRIVER´S CABIN OR ADDITIONAL LOADS OR ATTACHMENTS ON THE
DRIVER´S CABIN ARE ALSO PROHIBITED! THE FRONT STEPS MUST NOT BE
USED!
ACCESSING THE SURFACE IS PROHIBITED!
NOT ALLOWED WALKING ON ALUMINUM DECK
1
2 3 4
3 5
6
7 8
6 7 8
9 10
