USE AND MAINTENANCE MANUAL R68090150
ORIGINALE
RUTHMANN ITALIA S.r.l. Via Santa Maria del Piano di sotto,91/B – 47854 Montescudo-Monte Colombo (RN) - ITALIA
pag. 47

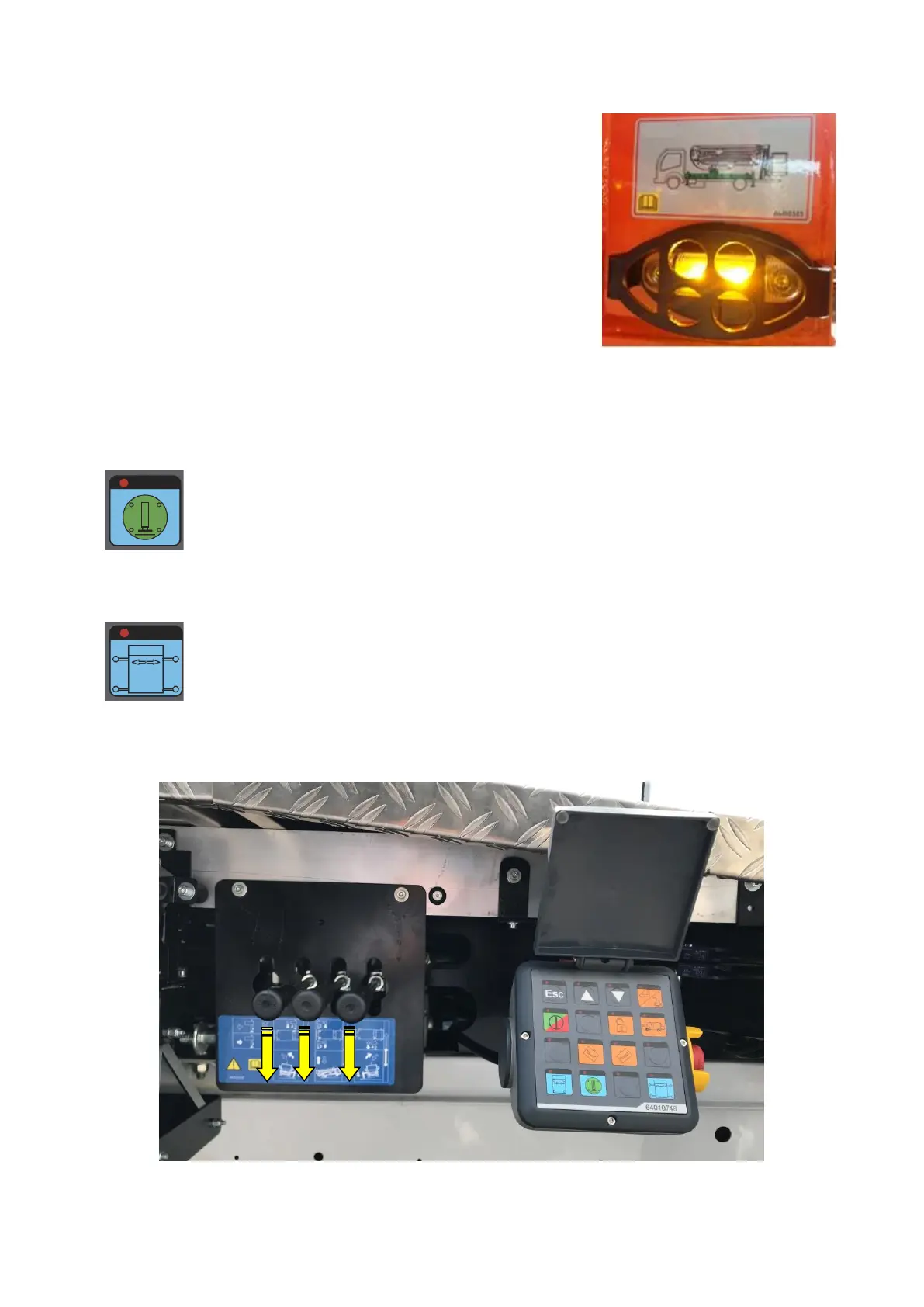

The orange led is on when the control of lower part of platform is
activated and there are the following conditions for controlling the
outriggers:
- boom in rest position,
- the outriggers functions are active,
- there is not any malfunctioning of platform that could block all
outrigger functions (... as breakdown of a micro switch on stabilizer). In
case of a malfunctioning, the led is off and an alarm message appears
on the display. If led is off and there is not any alarm message on
display, the operator has to check the previous conditions.
For a correct stabilization, do as follow:
A) FULL JACKING
By means of the push-button “Jack activation”, the controls of extendible front stabilizers and outriggers
cylinders are activated
Actuate push button “Jack activation” (keep depressed, a sound alarm starts after a
few seconds).
Permanent light: outriggers’ control is enabled
By means of the push-button “Full jacking” all front stabilizing-jack-arms are extended together
horizontally.
Actuate push button “Full jacking” (keep depressed, the movement starts after a few
seconds).
As soon as full horizontal extension is completed, act on the levers of outriggers for correctly leveling the
platform.
