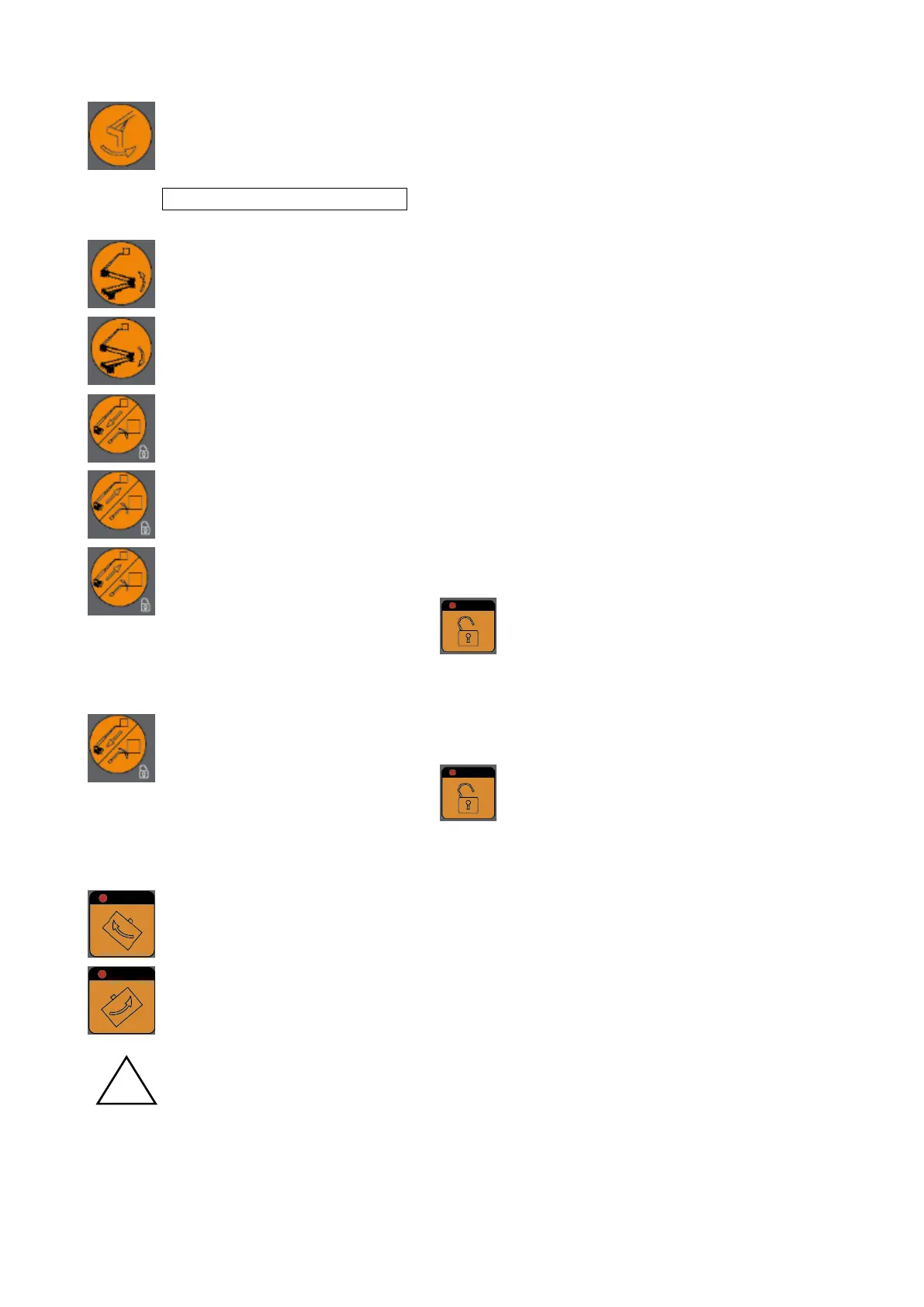

SWIVEL BOOM RIGHT
→
- Swivels the boom (tower) to
the right side.
RIGHT-HAND JOYSTICK
Function key
Description
RAISE PANTOGRAPH BOOM
↑
- Lifts up the boom.
LOWER PANTOGRAPH BOOM
↓
- Lowers the boom.
TELESCOPE IN
←
- Moves the telescope in.
TELESCOPE OUT
→
- Moves the telescope out.
RAISE JIB BOOM
→
- Press first the “function key” for enabling the JIB
function
- deflect the joystick to the right for moving the jib boom
upwards.
LOWER JIB BOOM
←
- Press first the “function key” for enabling the JIB
function
- deflect the joystick to the left for moving the jib boom
downwards.
Push button “Cage rotation left”

Rotate working cage to the left
Blinking light: the cage rotation is not allowed.
Push button “Cage rotation
right”

Rotate working cage to the right
Blinking light: the cage rotation is not allowed.
!
WARNING
DANGER
Make the manoeuvres slowly and carefully, especially when you work next to obstacles.
8.
The white led is on when the control of upper part of platform is activated and there are the following
conditions for lifting the booms:
- platform is stabilized and chassis is leveled,
- the lifting functions are active,
