8.5. STABILIZER RETRACTION AND STOP OF THE MACHINE
By means of the push-button “Jack activation”, the controls of extendible front stabilizers and outriggers
cylinders are activated
Actuate push button “Jack activation” (keep depressed, a sound alarm starts after a
few seconds).
Permanent light: outriggers’ control is enabled

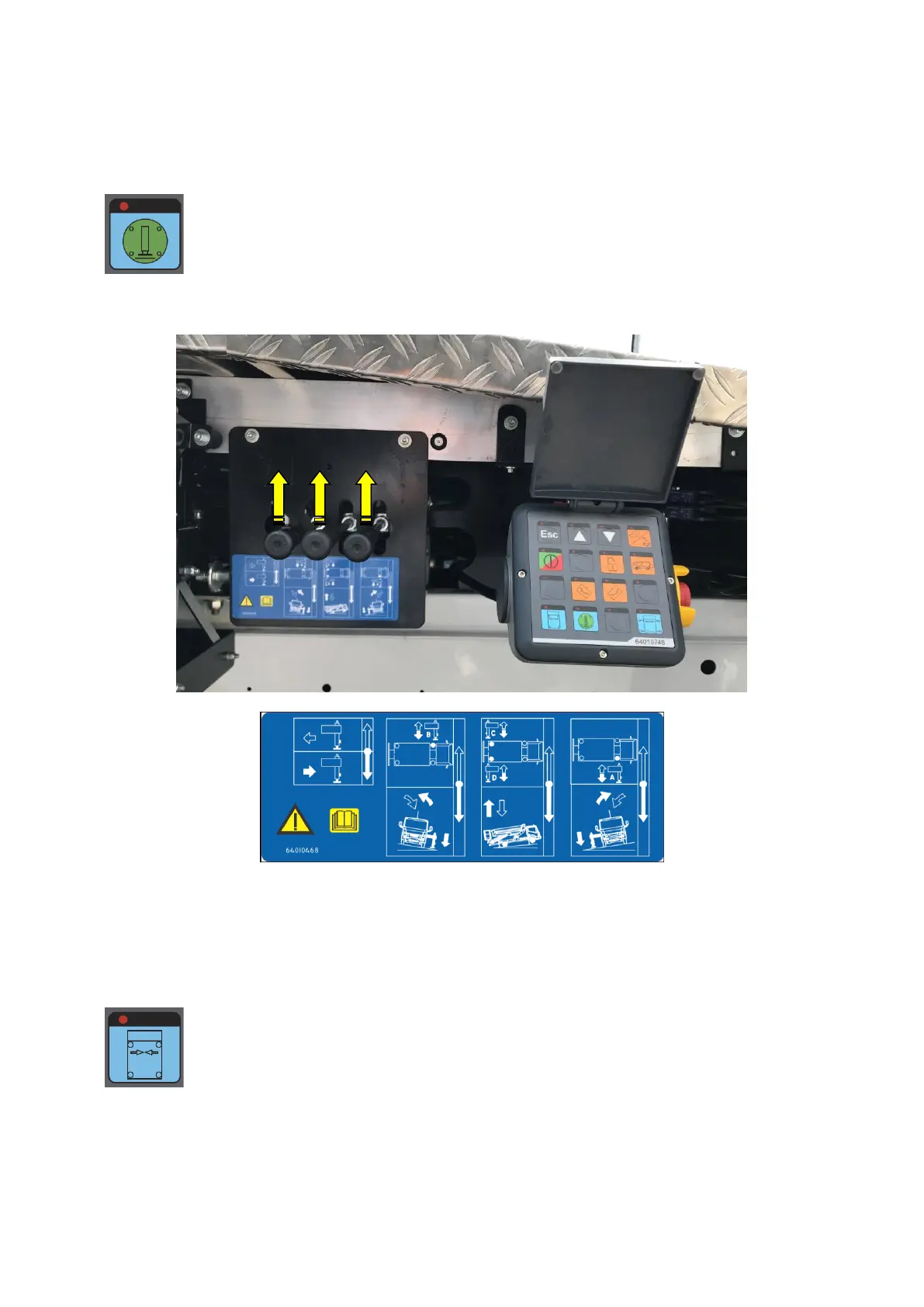

Act on the levers of outriggers (A, B, C+D) for destabilizing correctly the platform
1 2 3
1. Lever to control the stabilizer B: front left
2. Lever to control the stabilizers C+D: rear left and right
3. Lever to control the stabilizer A: front right
By means of the push-button “Minimum jacking” all front stabilizing-jack-arms drive in horizontally.
Actuate push button “minimum jacking” (keep depressed, the movement starts after a
few seconds) for re-entering the extendible front outriggers.
Push again the button “Jack activation”; the controls of extendible front stabilizers and outriggers cylinders
are deactivated
From the cab control panel:
Switch off the Rotating beacon over the cab.
