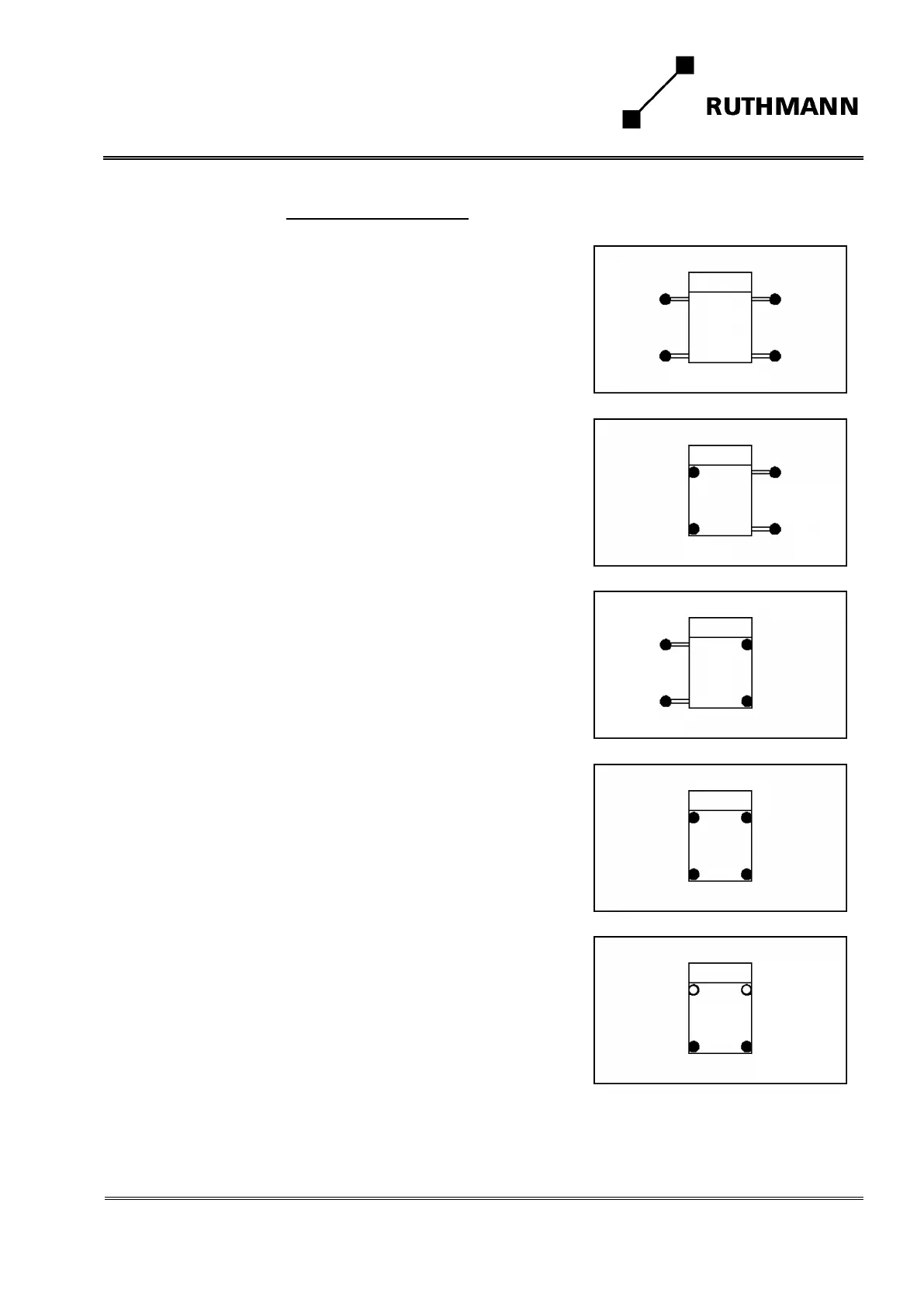

3.3.2 Stabilizing jack base
Fully jacking
Stabilizing jacks completely ex-
tended horizontally and vertically
on both sides.
Left-hand side jacking within ve-
hicle profile
Stabilizing jacks extended verti-
cally on left side within the vehi-
cle profile - and horizontally and
vertically on right side.
Right-hand side jacking within
vehicle profile
Stabilizing jacks extended verti-
cally on right side within the ve-
hicle profile - and horizontally
and vertically on left side.
Jacking within the vehicle profile
on both sides
Stabilizing jacks extended on
both sides within vehicle profile.
Minimum jacking
The rear jacking is vertically ex-
tended inside the vehicle profile
up to ground contact. Front jacks
variable.
The control system detects the stabilizing jack base by means of the sen-
sor technology.
