4.3.4 Superordinate Emergency Control System
4.3.4.1 Hand pump
The hand pump is situated next to switch box of emergency control at the
Steiger-substructure.

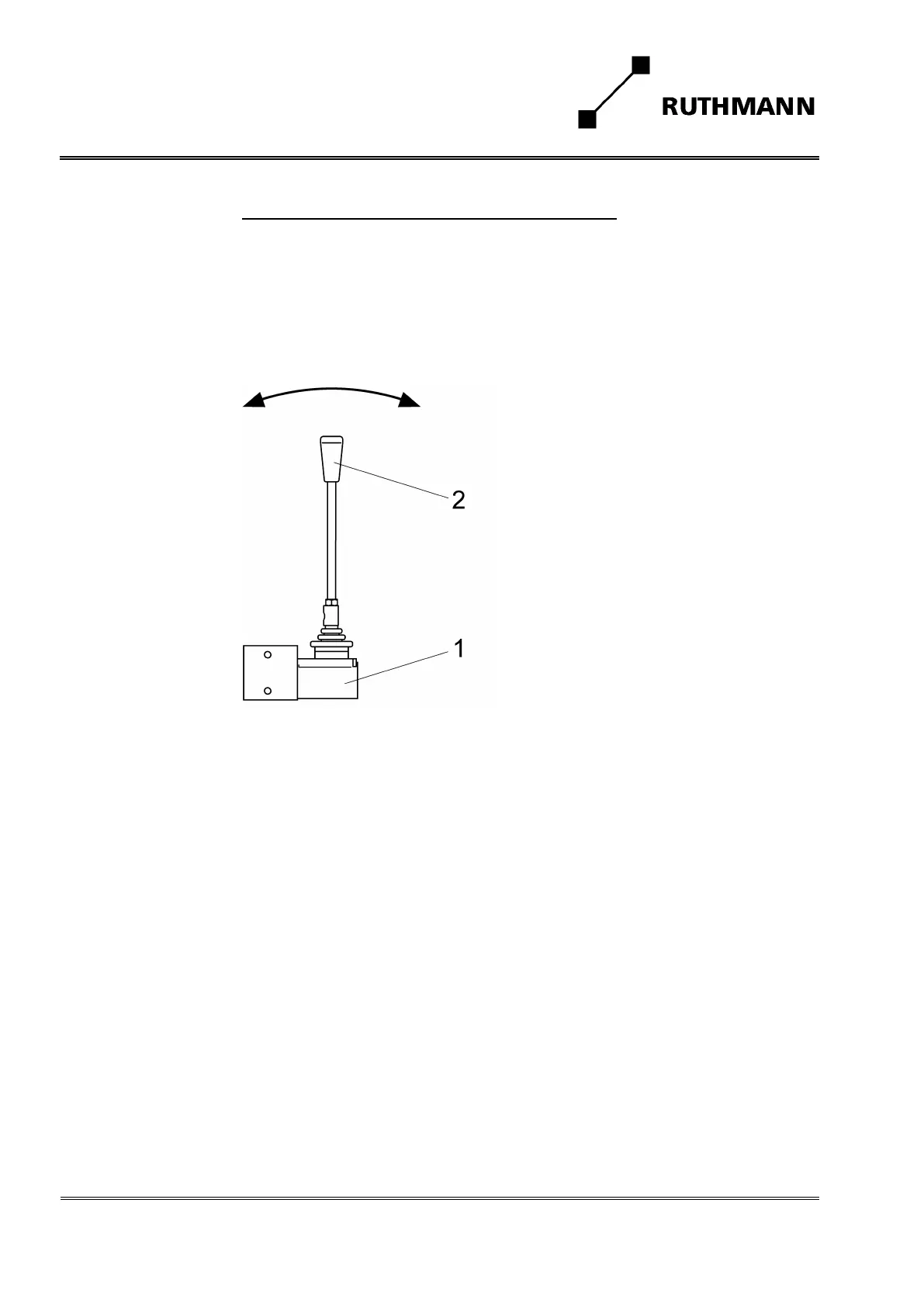

1. Hand pump
 Drive of the hydraulics
in case of a hydraulic
pump failure
2. Hand pump lever
