RWC JG Underfloor - Wiring Diagram; 230 V Connection Diagram; Volt-Free Connection Diagram; Zone Wiring Diagram

12

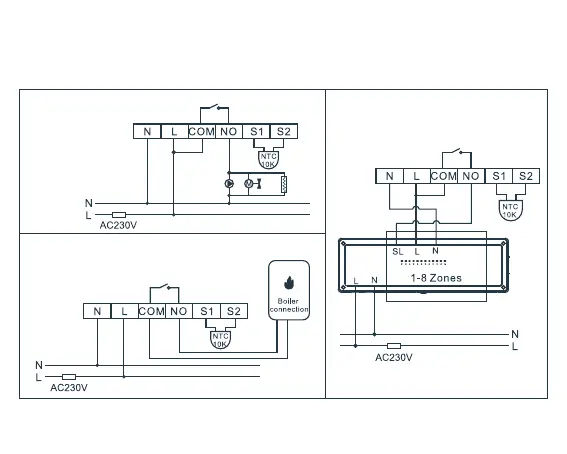

Wiring diagram
Wiring diagram for volt-free connection (e.g. boiler control)
Wiring diagram for 230V connections:
Power: 100-240VAC 50/60Hz
Imax: 3(2)A
Suggest cable is not over 1.5mm
