Lawnaire
IV & V
with EST
ASSEMBLY/SET-UP INSTRUCTIONS

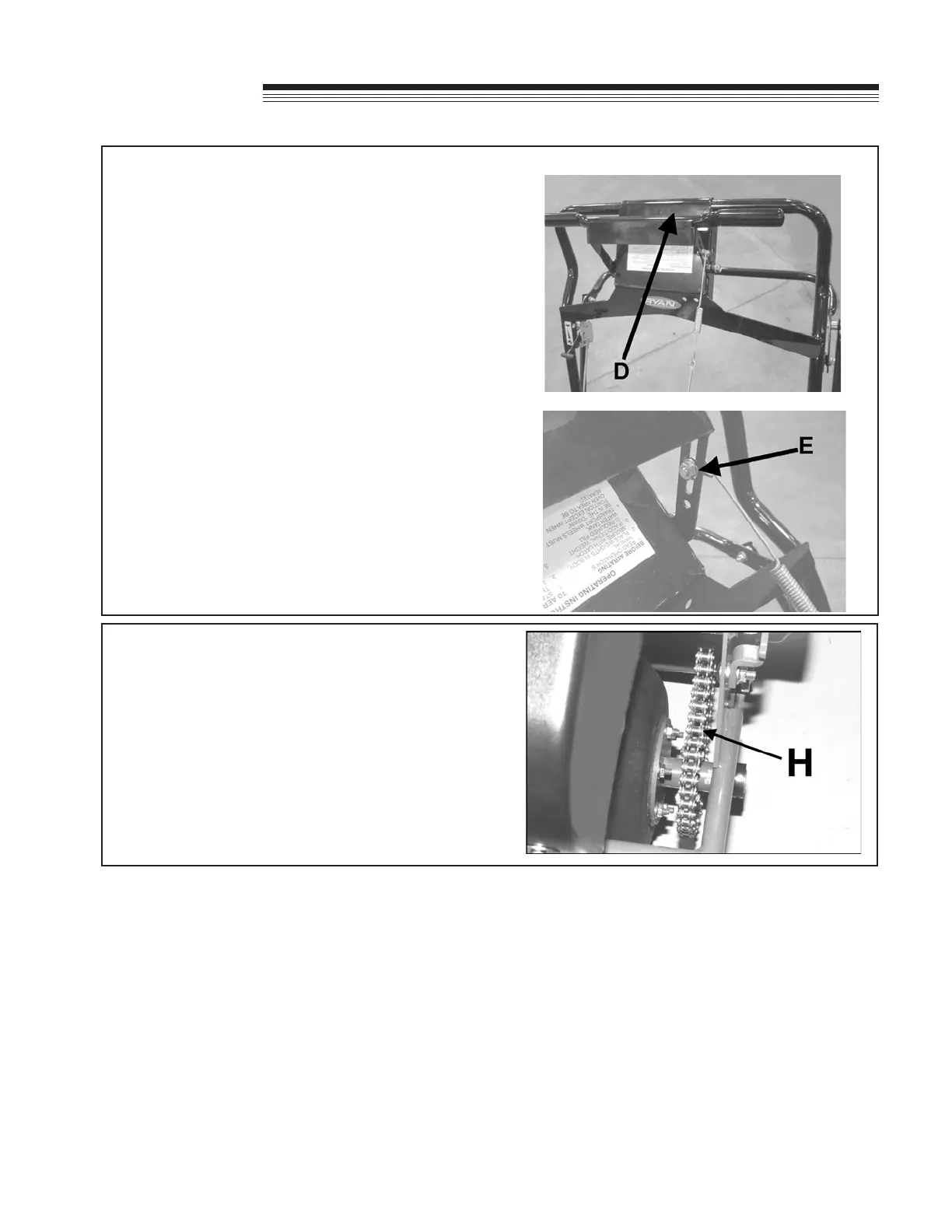

CHECKING THE CLUTCH CABLE
The clutch cable is adjusted prior to shipping;
however, it should be checked before the unit is put
into service.
1. Pull the clutch control handle D back and down
and make sure the idler engages the belt.
2. Release the clutch control handle D and make
sure the belt disengages completely.
3. If adjustment is necessary, loosen nut E on the
clutch spring hardware and adjust its position in
the slot of the clutch lever.
NOTE: Spring extension should not exceed .25 inch
FINAL PREPARATIONS
1. Check the engine oil level. Top off if necessary.
See engine manual for oil requirements.
2. Lubricate the roller chain H with Lubriplate
#13563 or equivalent.
3. Fill the gas tank with fresh, clean gasoline.
