ryan TCAD 9900 - Internal Diode Isolation of Altitude Encoder Lines

Revision 4 - December 17,1998 Ryan TCAD 9900 Series Page 2-22

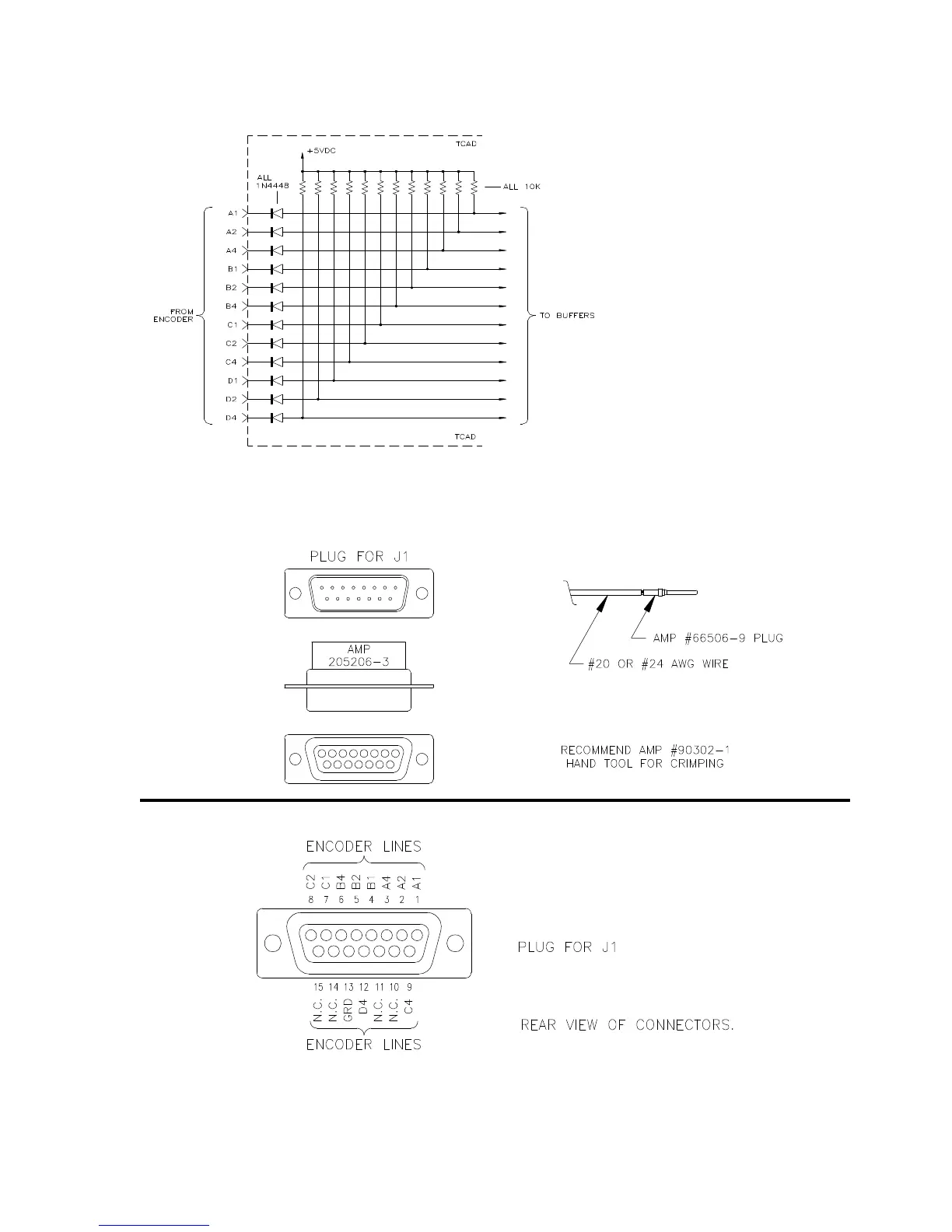

Figure 2-18 Internal Diode Isolation of Altitude Encoder Lines
Figure 2-19 15-Pin Cable-End Plug for Mating with J1
