Revision 4 - December 17,1998 Ryan TCAD 9900 Series Page 3-4
3.5 BASIC DISPLAYS
There are two basic displays in the operation of the Ryan TCAD:
• When the unit is searching, and
• When a threat is acquired.
The following illustrations show typical displays and associated controls:

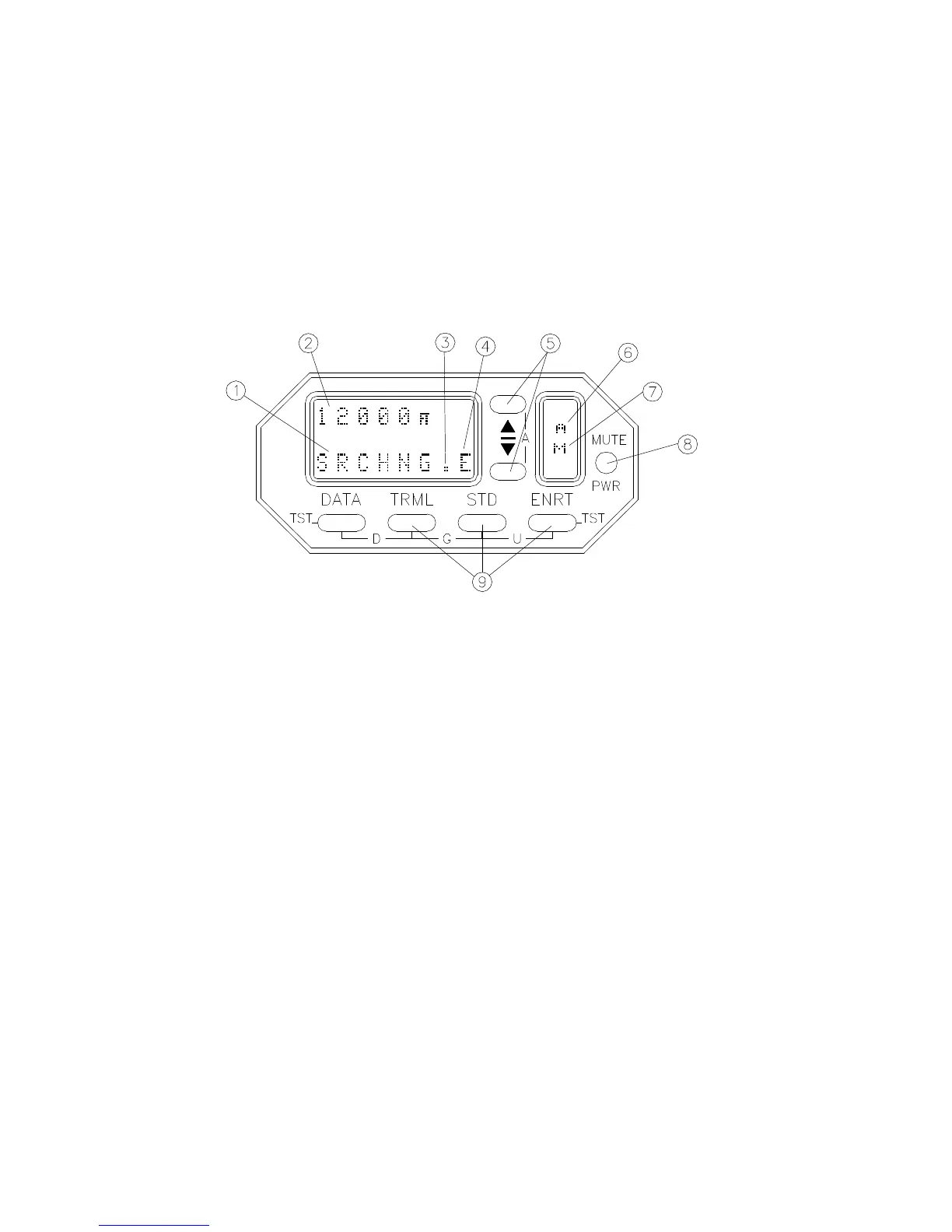

Search Configuration
¬ TCAD is searching for a threat.
- Own Aircraft altitude.
® Self-Test Cursor.
¯ Mode indicator (shown indicating Enroute Mode).
° Used to adjust TCAD parameters, barometric pressure, and
to engage/disengage the Altitude Alert.
± "A" - Altitude Alert engaged.
² "M" - displayed when tones are muted.
³ Pull off, push on, and used to mute traffic tones for a specified duration.
È Used to select mode.
Figure 3-2 Controls and Display, Search Configuration
