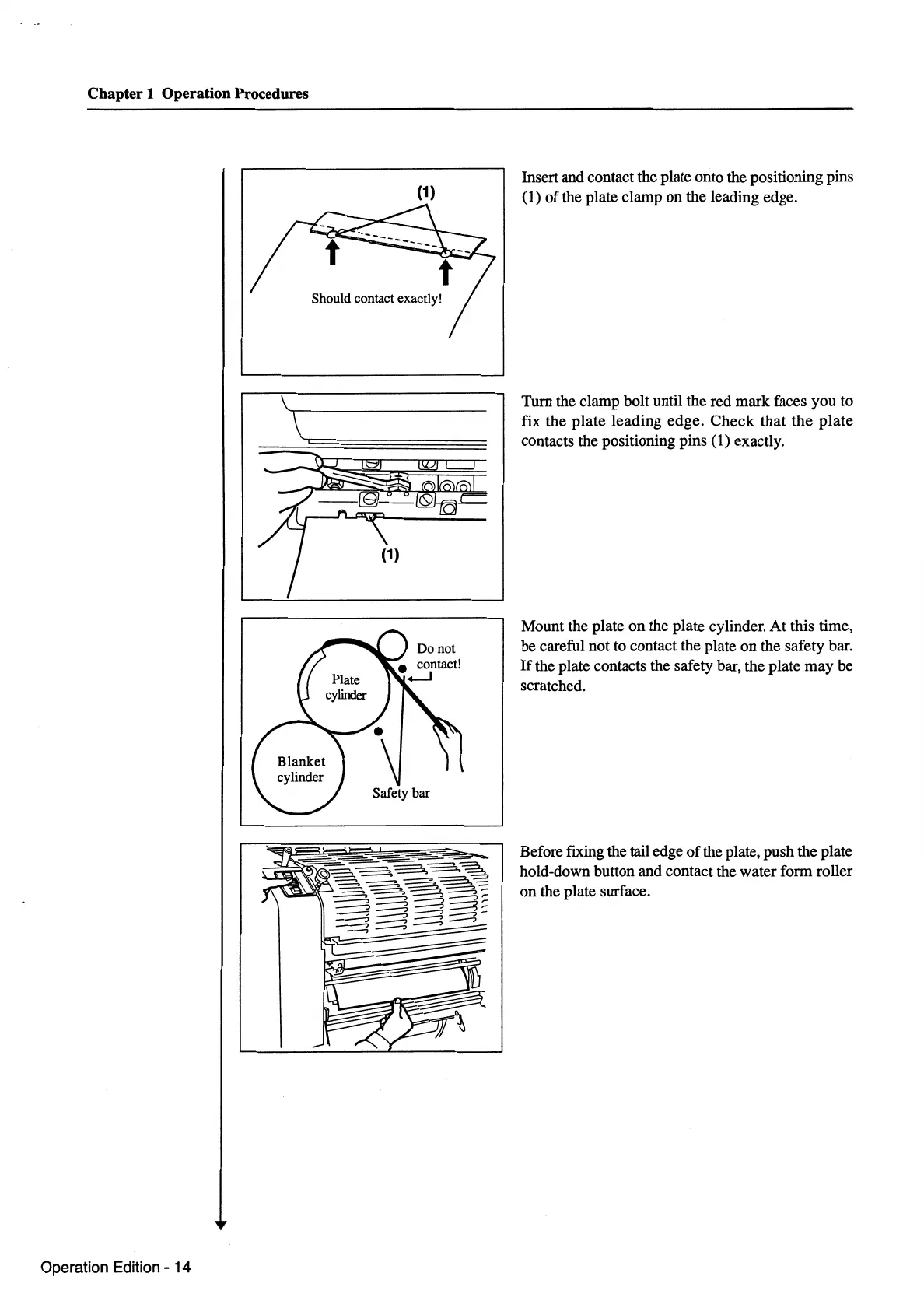

Chapter 1 Operation Procedures
(1)
Should contact exactly!
Operation Edition - 14
Insert and contact the plate onto the positioning pins
(1) ofthe plate clamp on the leading edge.
Tum the clamp bolt until the red mark faces you to
fix the plate leading edge.
Check that the plate
contacts the positioning pins (1) exactly.
Mount the plate
on the plate cylinder. At this time,
be careful not to contact the plate
on the safety bar.
If the plate contacts the safety bar, the plate may be
scratched.
Before fixing the tail edge
of the plate, push the plate
hold-down button and contact the water form roller
on the plate surface.
