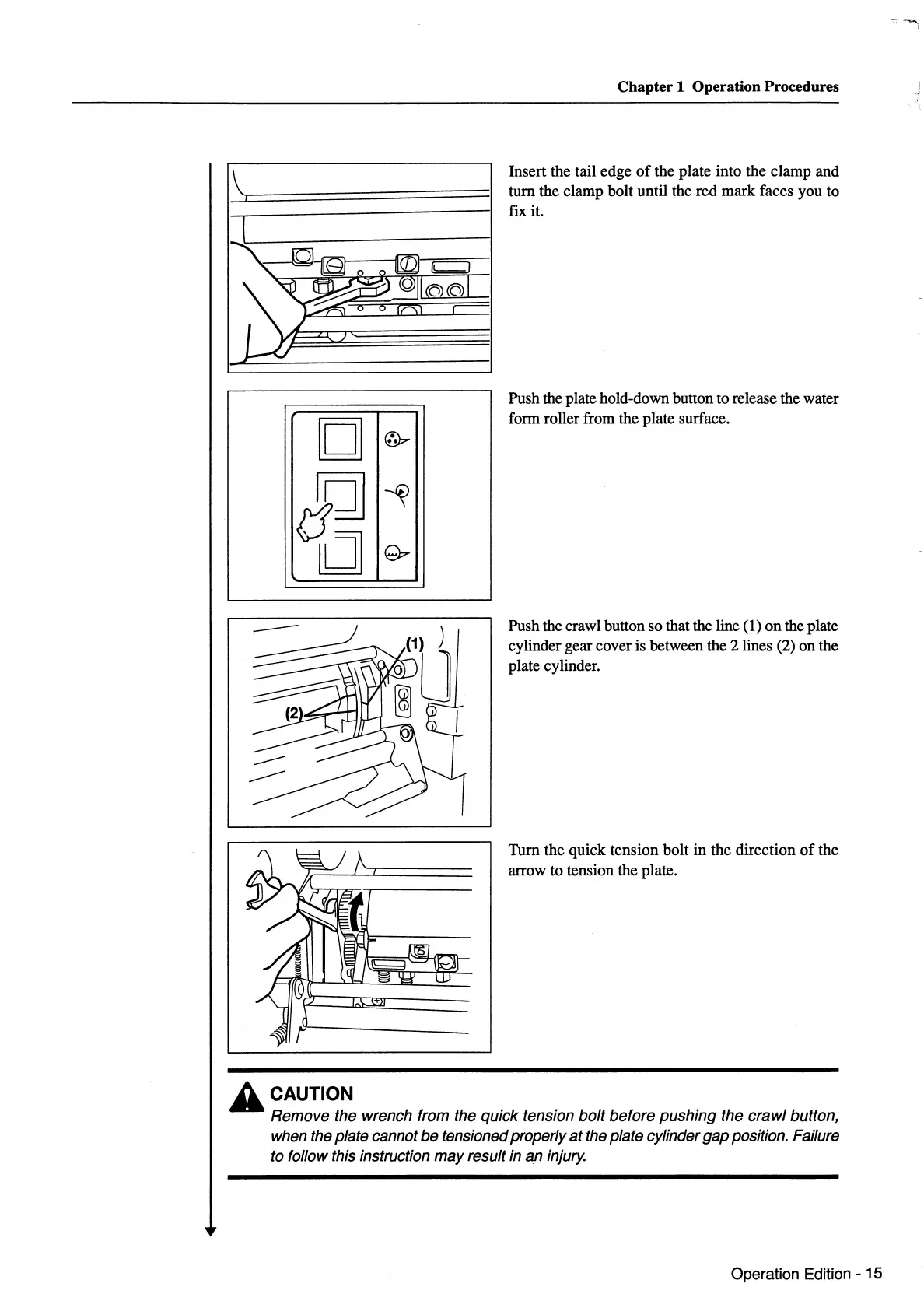

Chapter 1 Operation Procedures
Insert the tail edge
of
the plate into the clamp and
tum
the clamp bolt until the red mark faces you to
fix it.
Push the plate hold-down button to release the water
form roller from the plate surface.
Push the crawl button so that the line (1)
on
the plate
cylinder gear cover is between the 2 lines (2)
on
the
plate cylinder.
Tum
the quick tension bolt in the direction
of
the
arrow to tension the plate.
A CAUTION
Remove the wrench from the
quick
tension
bolt
before
pushing
the
crawl
button,
when the plate cannot
be
tensioned properly
at
the plate cylinder
gap
position. Failure
to follow this instruction
may
result in an injury.
