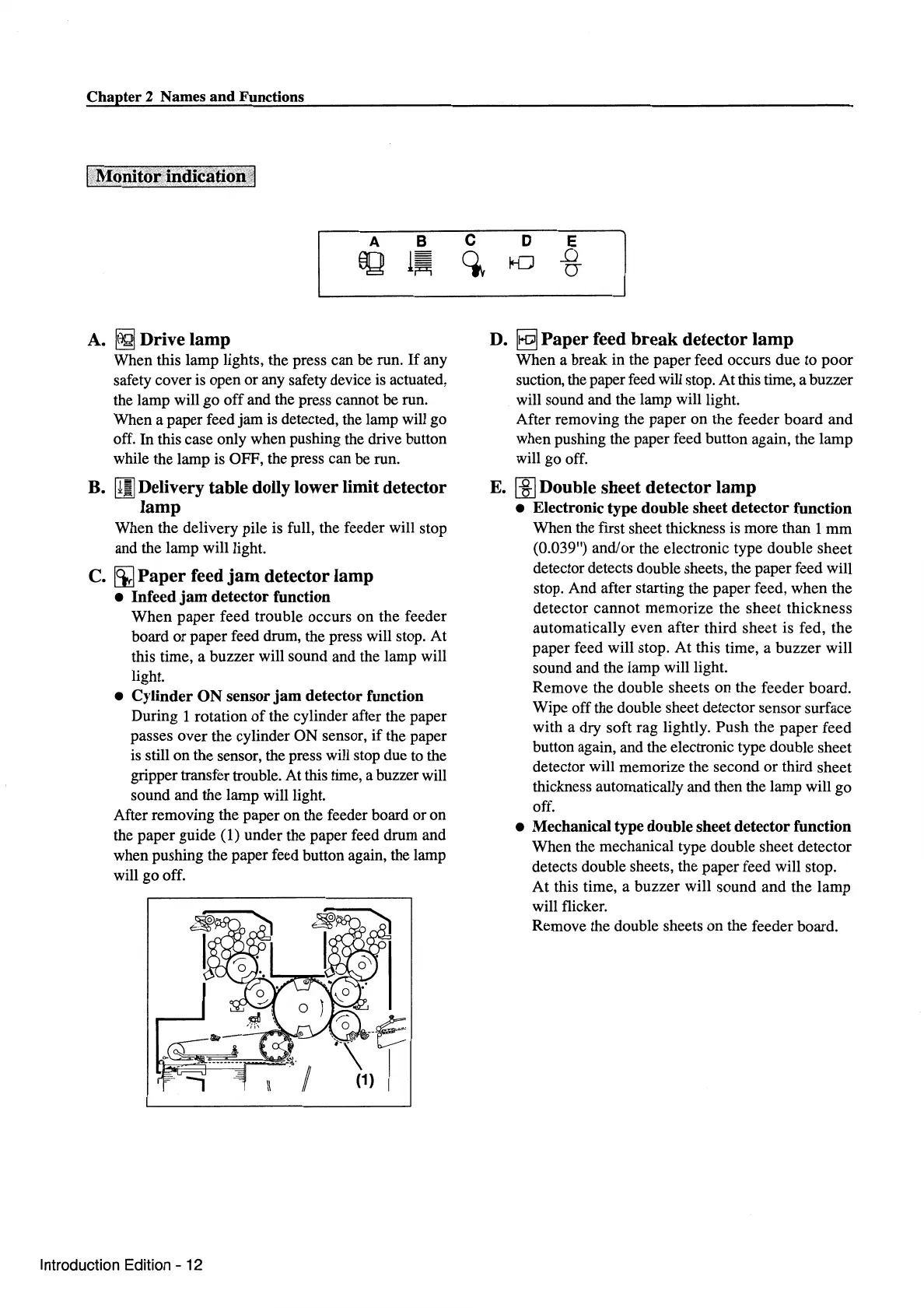

Chapter 2 Names
and
Functions
A.
~
Drive lamp
When this lamp lights, the press can be run.
If
any
safety cover
is
open or any safety device is actuated,
the lamp will go off and the press cannot be run.
When a paper feed jam is detected, the lamp will go
off. In this case only when pushing the drive button
while the lamp is OFF, the press can be run.
B. IIi] Delivery table dolly lower limit detector
lamp
When the delivery pile is full, the feeder will stop
and the lamp will light.
C.
&\Paper
feed
jam
detector lamp
• Infeed
jam
detector function
When paper feed trouble occurs on the feeder
board or paper feed drum, the press will stop. At
this time, a buzzer will sound and the lamp will
light.
• Cylinder
ON
sensor
jam
detector function
During 1 rotation
of
the cylinder after the paper
passes over the cylinder ON sensor,
if
the paper
is still on the sensor, the press will stop due
to
the
gripper transfer trouble. At this time, a buzzer will
sound and the lamp will light.
After removing the paper on the feeder board or on
the paper guide (
1)
under the paper feed drum and
when pushing the paper feed button again, the lamp
will go off.
Introduction Edition - 12
C D
~
KJ
E
_Q
IT
D.
~Paper
feed
break
detector
lamp
When a break in the paper feed occurs due to poor
suction, the paper feed will stop. At this time, a buzzer
will sound and the lamp will light.
After removing the paper on the feeder board and
when pushing the paper feed button again, the lamp
will go off.
E.
ffiJ
Double sheet detector lamp
• Electronic type double sheet detector function
When the first sheet thickness
is
more than 1 mm
(0.039") and/or the electronic type double sheet
detector detects double sheets, the paper feed will
stop. And after starting the paper feed, when the
detector cannot memorize the sheet thickness
automatically even after third sheet is fed, the
paper feed will stop. At this time, a buzzer will
sound and the lamp will light.
Remove the double sheets on the feeder board.
Wipe off the double sheet detector sensor surface
with a dry soft rag lightly. Push the paper feed
button again, and the electronic type double sheet
detector will memorize the second or third sheet
thickness automatically and then the lamp will go
off.
• Mechanical type double sheet detector function
When the mechanical type double sheet detector
detects double sheets, the paper feed will stop.
At
this time, a buzzer will sound and the lamp
will flicker.
Remove the double sheets on the feeder board.
