SPECIFIC SAFETY RULES FOR BENCH DRILLS
1. Read the instruction manual before operating the
bench drill.
2. Safety Glasses should be worn.
3. Do not wear loose clothing.
4. Keep work area clean.
5. Do not operate the bench drill until it is completely
assembled and installed according to the
instructions.
6. Before turning on, ensure belt guard is down and the
chuck is installed correctly.
7. Remove adjusting keys and wrenches before turning
on power.
8. Ensure the chuck key is removed from the chuck
before turning on the power.
9. Ensure the drill bit is securely locked in the chuck
using the key supplied.
10. Use recommended speed for drill bit size and
workpiece material.
11. Keep belt guard in place while machine is in
operation.
12. Use only recommended accessories.
13. Disconnect tool before changing drill bit and ensure
switch is in the off position before plugging in.
14. Do not use bench drill in damp or wet conditions.
15. Do not overload tool.
16. Keep tool well maintained.
17. Never leave tool running unattended.
18. Adjust the table or depth stop to avoid drilling into
the table.
ASSEMBLY
■
ASSEMBLE THE COLUMN
•
Place column assembly on base and align holes in
column support with holes in base.
•
Secure the column with the bolts provided.
■
INSTALL TABLE
•
Slide the table assembly onto the column and lock
with clamping lever.
■
ATTACH HEAD TO COLUMN
•
Carefully put the head assembly over the column
and slide it onto column into position. Align head
frame with table and base.
Fix set screws into right side of head to lock head
into position then tighten.
■
INSTALL THE FEEDING HANDLES
•
Screw the knobs to the feeding handles.
•
Screw each feeding handle into hub of pinion shaft.
■
ATTACH THE CHUCK
•
Slide table up and secure it approximately 75mm
from the tip of the spindle.
•
Slide short end of arbor into chuck. Place long end
inside spindle.
•
Open chuck jaws completely by turning chuck key
anti-clockwise to the end.
•
Put a peice of scrap wood on the table to protect
chuck nose.
•
Pull feeding handle down pressing the chuck against
the scrap wood until arbor is secure on the spindle.

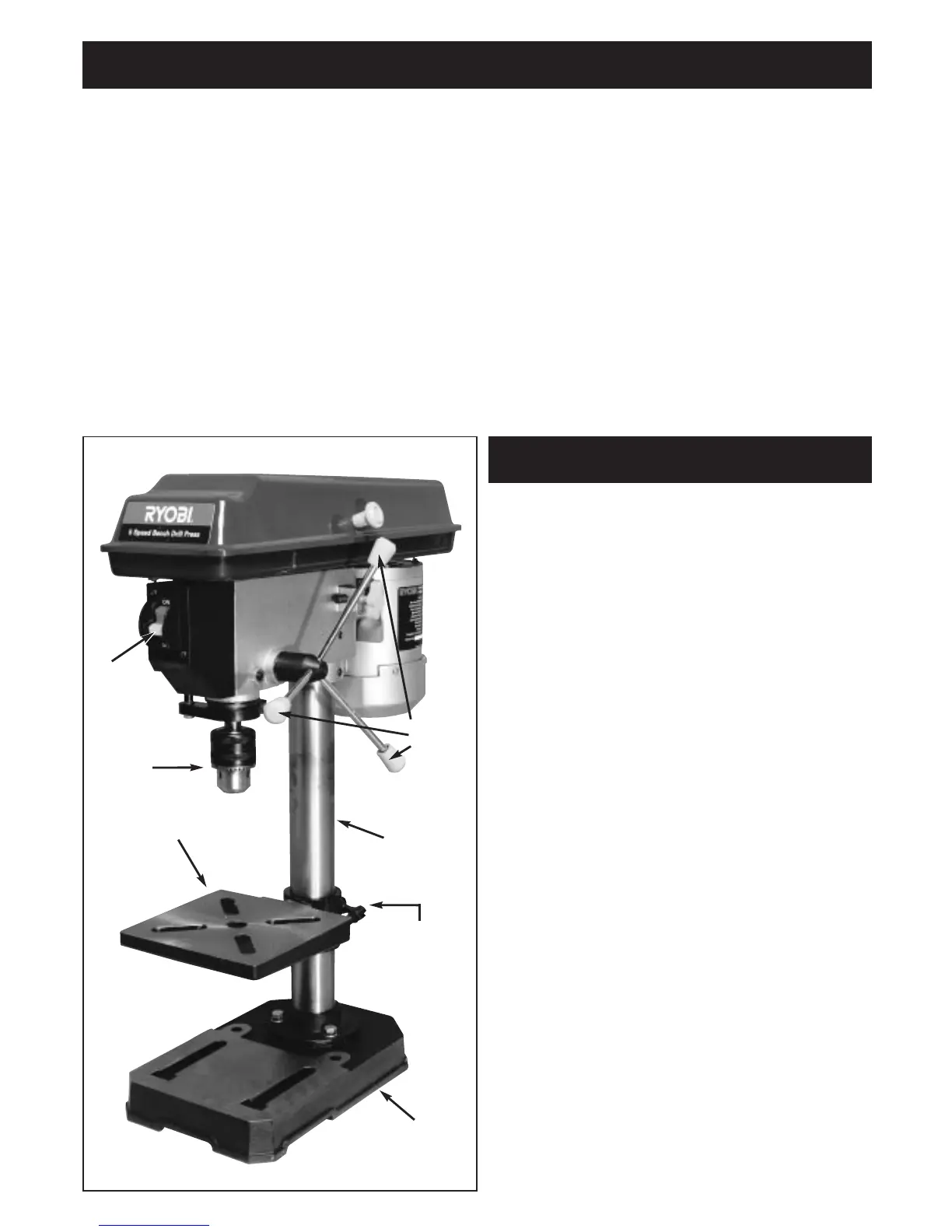

On/Off
Switch
Drill
Chuck
Table
Feeding
Handles
Column
Table Height
Adjustment
Clamping
Lever
Base
