Page 44
Key
No. Description Quan.
Key
No. Description Quan.
RYOBI 10 in. (254 mm) TABLE SAW - MODEL NO. BT3000

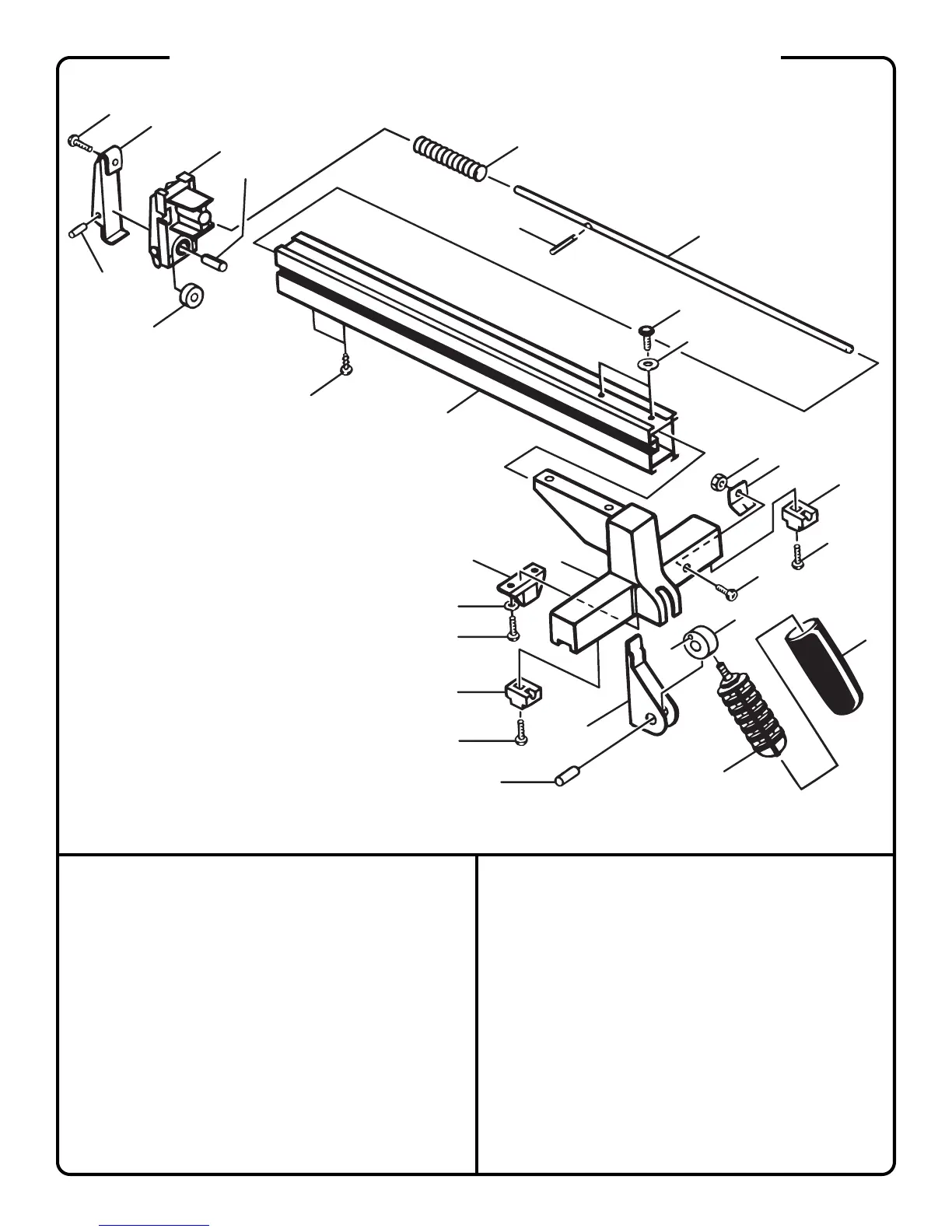

FIG. 61: RIP FENCE ASSEMBLY
1 Rip Fence ................................................... 1
2 Screw (10-14 x 1/2 in. Pan Hd.) ................. 2
3 Fence Roller................................................1
4 Roll Pin ....................................................... 1
5 Screw (10-24 x 1 in. Pan Hd.) .................... 1
6 Clamper - B ................................................ 1
7 Roller Holder .............................................. 1
8 Dowel Pin (1/4 in. x 3/4 in.) ........................ 1
9 Compression Spring ................................... 1
10 Roll Pin ....................................................... 1
11 Rod .............................................................1
12 Screw (1/4-20 x 5/8 in. Button Hd.) ............ 2
13 Washer ....................................................... 2
14 Hex Nut (8-32) ............................................ 1
15 Scale Indicator............................................ 1
16 Slide............................................................ 2
17 Screw (8-32 x 1/2 in. Pan Hd.) ................... 2
18 Screw (8-32 x 1/2 in. Pan Hd.) ................... 1
19 Locking Handle Grip ................................... 1
20 Eccentric Roller .......................................... 1
21 Rubber Plug................................................ 1
22 Locking Handle Bolt ................................... 1
23 Clamper - A ................................................ 1
24 Pin .............................................................. 1
25 Screw (8-32 x 3/8 in. Pan Hd.) ................... 2
26 Washer ....................................................... 2
27 Plate ........................................................... 1
28 Front Block ................................................. 1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
17
16
26
25
27
28
To Next Page
