RYOBI 10 in. (254mm) TABLE SAW - MODEL NO. BT3000

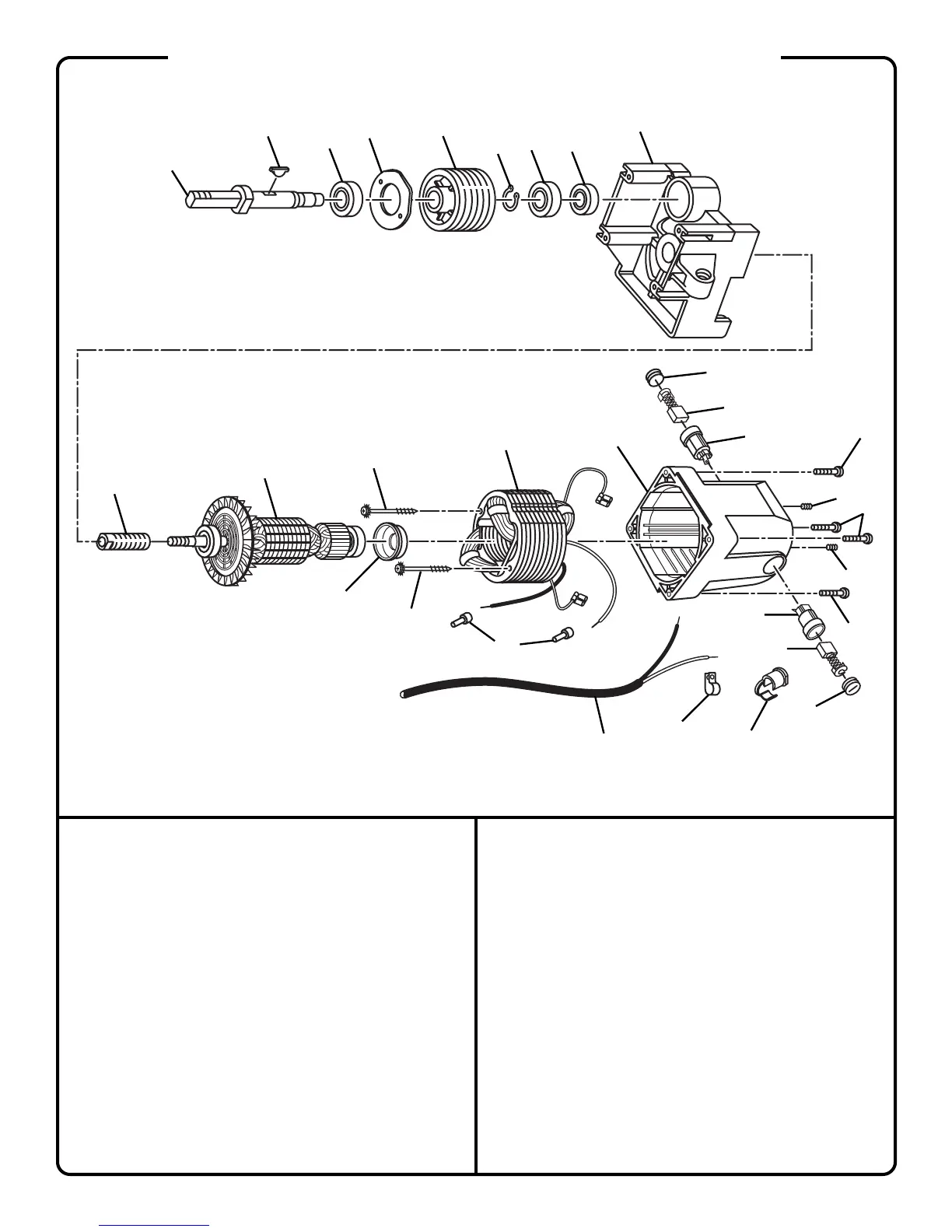

FIG. 62: MOTOR ASSEMBLY
Key
No. Description Quan.
1 Arbor ...........................................................1
2 Woodruff Key (3/16 in.) .............................. 1
3 Ball Bearing (6003)..................................... 1
4 Bearing Plate .............................................. 1
5 Arbor Pulley ................................................ 1
6 Retaining Ring ............................................ 1
7 Ball Bearing (6002)..................................... 1
8 Ball Bearing (6200ZZ) ................................ 1
9 Motor Bracket ............................................. 1
10 Motor Pulley ............................................... 1
11 Armature Assembly .................................... 1
12 Screw and Washer (Field Pan Hd.) ............ 2
Key
No. Description Quan.
13 Field Assembly ......................................... 1
14 Motor Housing .......................................... 1
15 Brush Cover .............................................. 2
16 Brush Assembly ........................................ 2
17 Brush Holder Assembly ............................2
18 Screw and Washer(Pan Hd.) .................... 4
19 Set Screw (Hex)........................................ 2
20 Strain Relief Bushing ................................ 1
21 Cable Clamp .............................................1
22 Power Cord ............................................... 1
23 Connector ................................................. 2
24 Bearing Bushing ....................................... 1
1
4
3
2
5
6
7
9
8
10
11
12
12
24
13
23
14
15
16
17
15
16
17
18
19
18
18
20
21
22
19

Ryobi BT3000 Specifications

General

Motor Power	15 Amp
Blade Diameter	10 inches
Type	Table Saw
Arbor Size	5/8 inch
Voltage	120 V
No-Load Speed	4800 RPM
Bevel Capacity	0-45 degrees
