Ryobi BT3000 User Manual

Page 46
6
504
7 Dowel Pin (.309 x 1-1/4 in.) ........................ 1
8 Arm ............................................................. 1
9 Cover (clear) ............................................... 1
10 Dowel Pin (.309 x 1-3/4 in.) ....................... 1
11 Riving Knife Assembly ................................ 1
Key
No. Description Quan.
Key
No. Description Quan.
500 3/32 in. Allen Wrench ................................. 1
501 1/8 in. Allen Wrench ................................... 1
502 5/32 in. Allen Wrench ................................. 1
503 3/16 in. Allen Wrench ................................. 1
504 Large Wrench ............................................. 1
505 Small Wrench ............................................. 1
506 Saw Blade .................................................. 1
Operator's Manual
Key
No. Description Quan.
Key
No. Description Quan.
FIG. 64: REPLACEMENT PARTS
500
506
502
503
505
501
1 Screw (6-19 x 5/16 in. Pan Hd.) ................. 2
2 Washer ....................................................... 2
3 Anti-kickback Fingers ................................. 2
4 Spacer Cap................................................. 2
5 Torsion Spring ............................................ 1
6 Push Nut ..................................................... 4
RYOBI 10 in. (254 mm) TABLE SAW - MODEL NO. BT3000

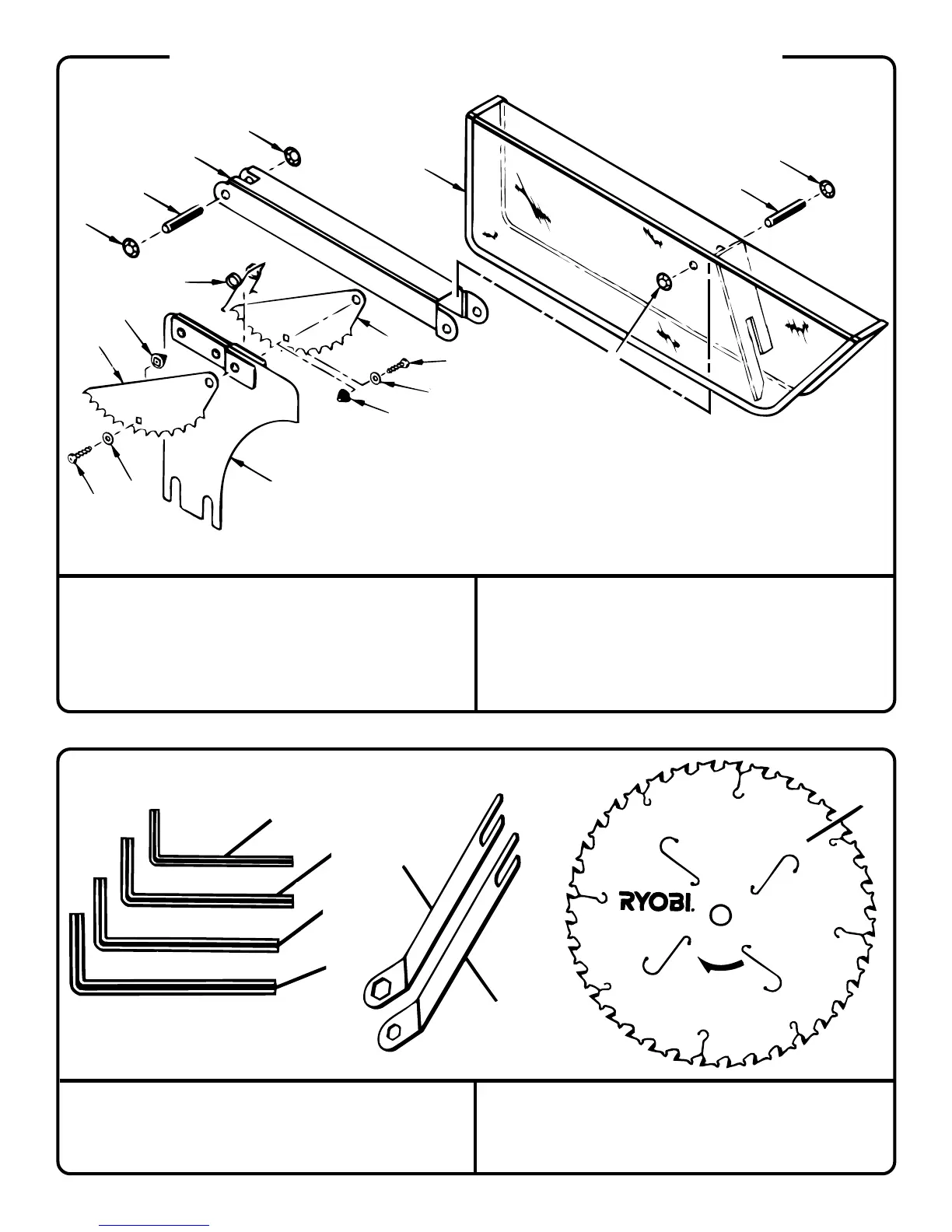

FIG. 63: BLADE GUARD ASSEMBLY
6
8
1
4
2
3
11
2
1
3
4
5
7
9
10
6
6
6

Ryobi BT3000 Specifications

General

Motor Power	15 Amp
Blade Diameter	10 inches
Type	Table Saw
Arbor Size	5/8 inch
Voltage	120 V
No-Load Speed	4800 RPM
Bevel Capacity	0-45 degrees
