Page 10
1
2
3
4
5
6
9
10
12
13
14
15
11
8

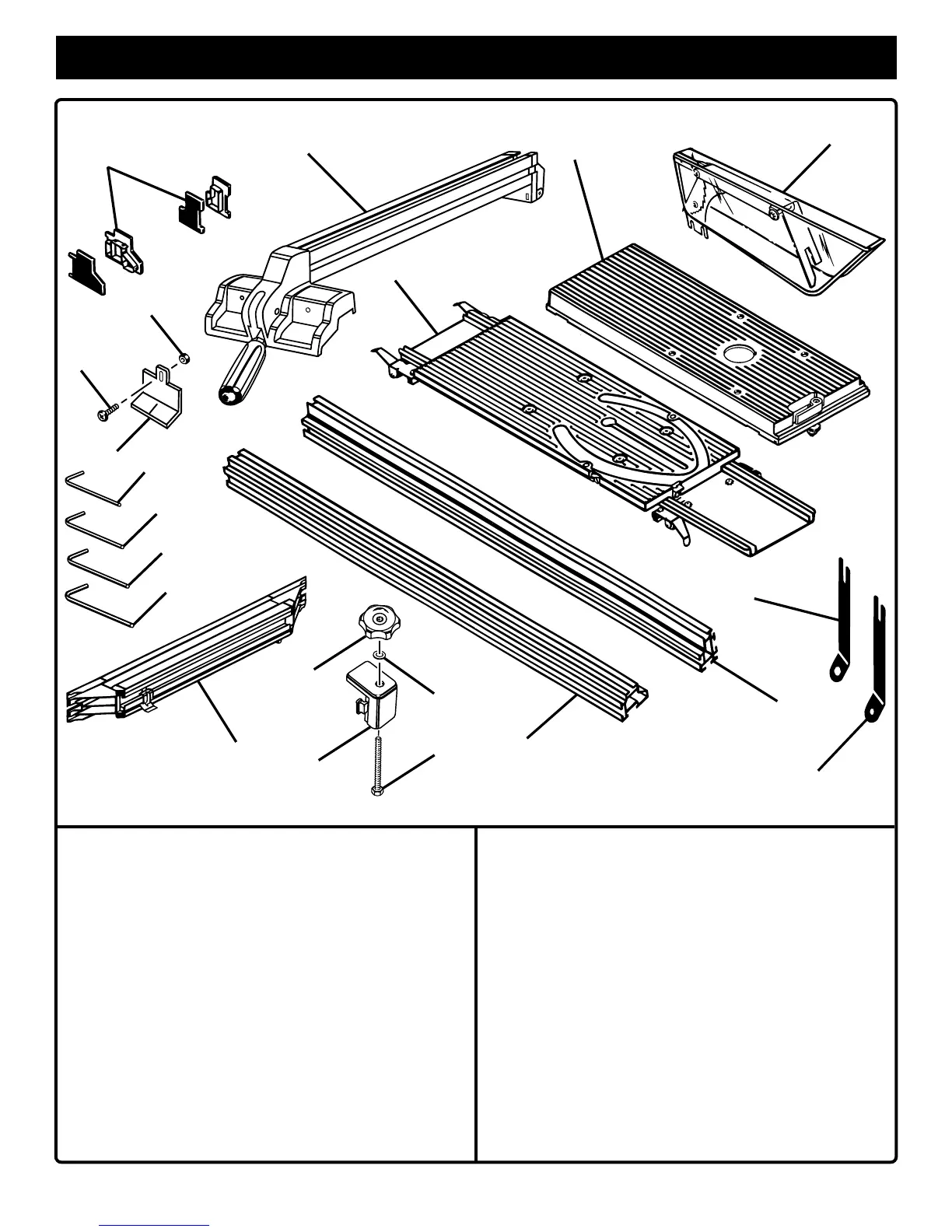

Fig. 3
Key
No. Description Quan.
1 Rip Scale Indicator.......................................... 1
2 Screw .............................................................. 1
3 Hex Nut ........................................................... 1
4 End Plug ......................................................... 4
5 Rip Fence........................................................ 1
6 Sliding Miter Table .......................................... 1
7 Accessory Table ............................................. 1
8 Blade Guard With Riving Knife
and Anti-Kickback Pawls................................. 1
9 Large Wrench ................................................. 1
10 Small Wrench.................................................. 1
11 Rear Rail ......................................................... 1
12 Front Rail ........................................................ 1
13 Screw .............................................................. 1
14 Washer............................................................ 1
15 Knob................................................................ 1
16 Adjusting Clamp .............................................. 1
17 Miter Fence With Miter Indicator and Locator
Pin Pivot...................................................... 1
18 3/32 in. Hex Key (Included)............................. 1
19 1/8 in. Hex Key (Included)............................... 1
20 5/32 in. Hex Key (Included)............................. 1
21 3/16 in. Hex Key (Included)............................. 1
22 Instructional Video (Not Shown)
23 Operator's Manual (Not Shown)
24 Warranty Registration Card (Not Shown)
Key
No. Description Quan.
7
LOOSE PARTS LIST
8
15
16
17
18
19
20
21
To Next Page
