14

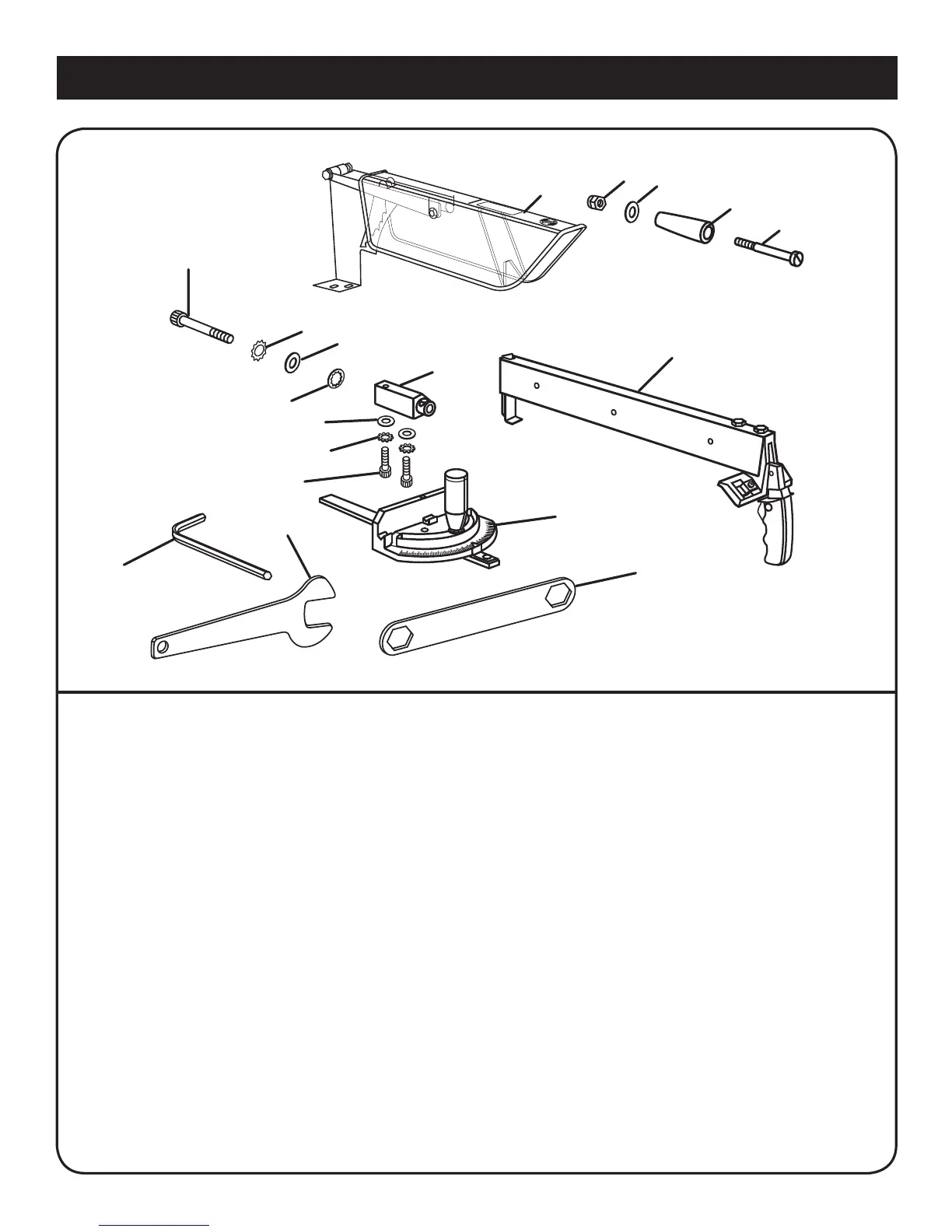

Fig. 5
Key
No. Description Qty.
LOOSE PARTS LIST
1 Blade Guard Assembly......................................................................................................................................1
2 Lock Nut............................................................................................................................................................1
3 Blade Adjusting Handle.....................................................................................................................................1
4 Shoulder Bolt.....................................................................................................................................................1
5 Rip Fence .........................................................................................................................................................1
6 Flat Washer .......................................................................................................................................................1
7 Miter Gauge ......................................................................................................................................................1
8 Small Wrench ....................................................................................................................................................1
9 Large Wrench ....................................................................................................................................................1
10 Hex Key (5 mm) .................................................................................................................................................1
11 Flat Washer (1/4 in.)...........................................................................................................................................2
12 Internal Tooth Lock Washer (1/4 in.)..................................................................................................................1
13 Socket Head Bolt (1/4 - 20 x 2-1/4 in.) .............................................................................................................1
14 External Tooth Lock Washer (1/4 in.).................................................................................................................3
15 Mounting Bracket..............................................................................................................................................1
16 Socket Head Cap Screw...................................................................................................................................2
17 Flat Washer .......................................................................................................................................................2
18 Operator's Manual (Not Shown)
19 Warranty Registration Card (Not Shown)
7
1
8
9
5
3
4
2
12
13
10
15
11
6
14
17
14
16

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Ryobi BTS10 and is the answer not in the manual?

Ryobi BTS10 Specifications

General IconGeneral
TypeTable Saw
Blade Diameter10 inches
Arbor Size5/8 inches
Motor15 Amp
Maximum Cut Depth at 90 degrees3 inches
Maximum Cut Depth at 45 degrees2-1/4 inches
Bevel Capacity0-45 degrees
Maximum RPM5000 RPM
