FEATURES
KNOW YOUR DRILL PRESS
See Figure 2.
Before attempting to use this product, familiarize yourself
with all operating features and safety rules.
BEVEL SCALE
The bevel scale indicates the degree the table is tilted.
CHUCK
Your drill press features a standard three-jaw type chuck with
a self-ejecting chuck key, which prevents accidentally starting
the drill press with the key still engaged in the chuck.
EXACTLINE
™
LASER
The Exactline
™
laser makes accurate, precision drilling
simple and easy.
DEPTH GAUGE
A depth gauge is located between the pulley housing and
feed handles to aid in drilling at desired depths.
DEPTH STOP
The adjustable locking depth stop permits accurate depth
measurement and repetitive drilling.
FEED HANDLES
Feed handles raise and lower the chuck and bit during the
drilling operation.
MOTOR
Your drill press is equipped with an industrial duty induction
motor for long-lasting, smooth performance.
SPINDLE SPEED
Five different spindle speeds allow you to drill a wide variety
of material including wood, plastic, and metal.
TABLE
The table of your drill press rotates 360˚ and bevels up to
45˚ for angle drilling.
VISE
Use the vise to secure the workpiece to the table when
drilling.
WORKLIGHT
The integrated worklight can be used to help illuminate the
work area. It requires a 15-watt, 120-volt, candelabra-base
bulb (not included).
Fig. 3

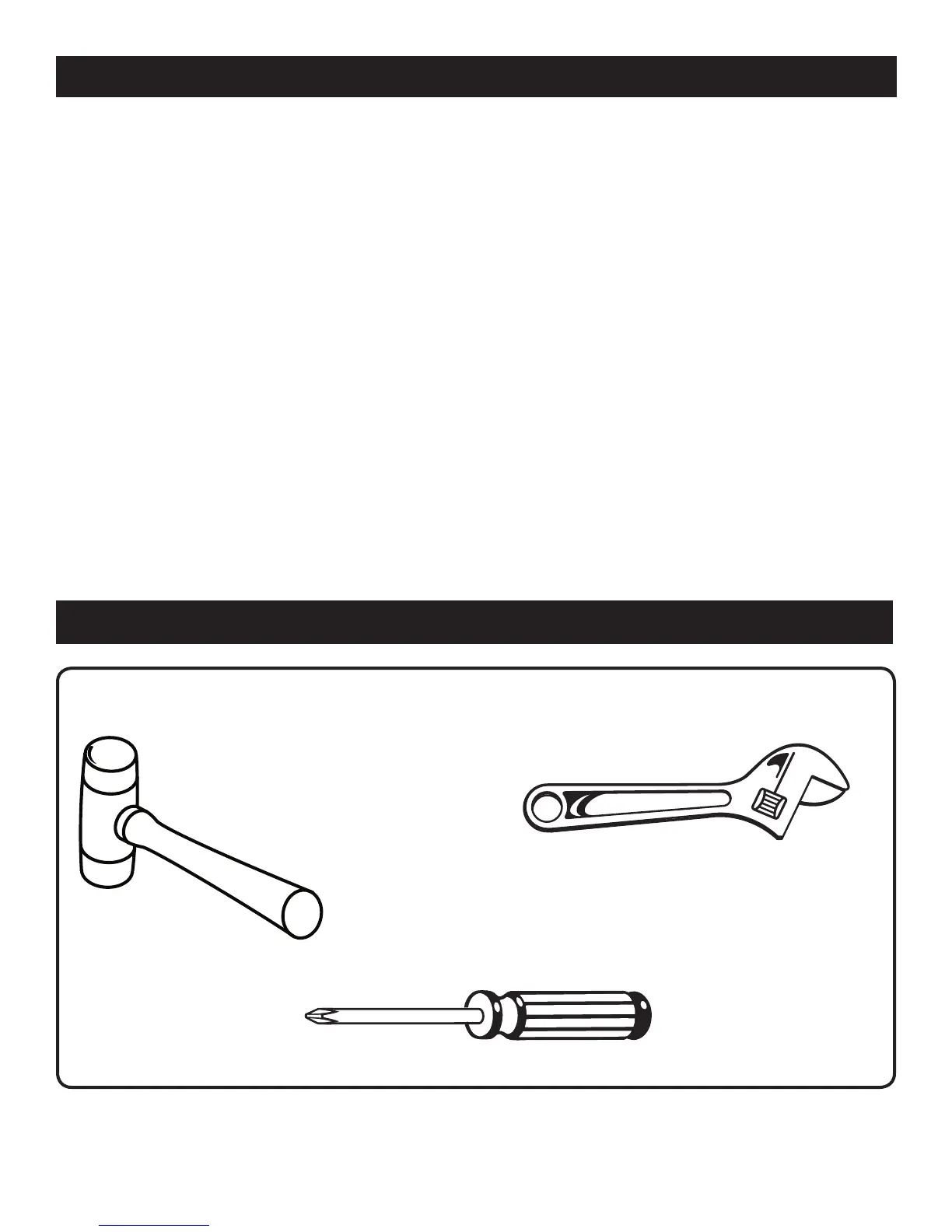

The following tools (not included) are needed for assembly and alignment:
TOOLS NEEDED
ADJUSTABLE WRENCH
MALLET OR
HAMMER
PHILLIPS SCREWDRIVER
