6 — English
Fig. 2
WARNING:
Strictly adhere to all torque wrench tightening specifica-
tions. Failure to do so could cause serious personal injury.
WARNING:
Do not attempt to modify this product or create
accessories not recommended for use with this product.
Any such alteration or modification is misuse and could
result in a hazardous condition leading to possible serious
personal injury.
WARNING:
To prevent accidental starting that could cause serious
personal injury, always remove the start key from the tool
when you are assembling parts.

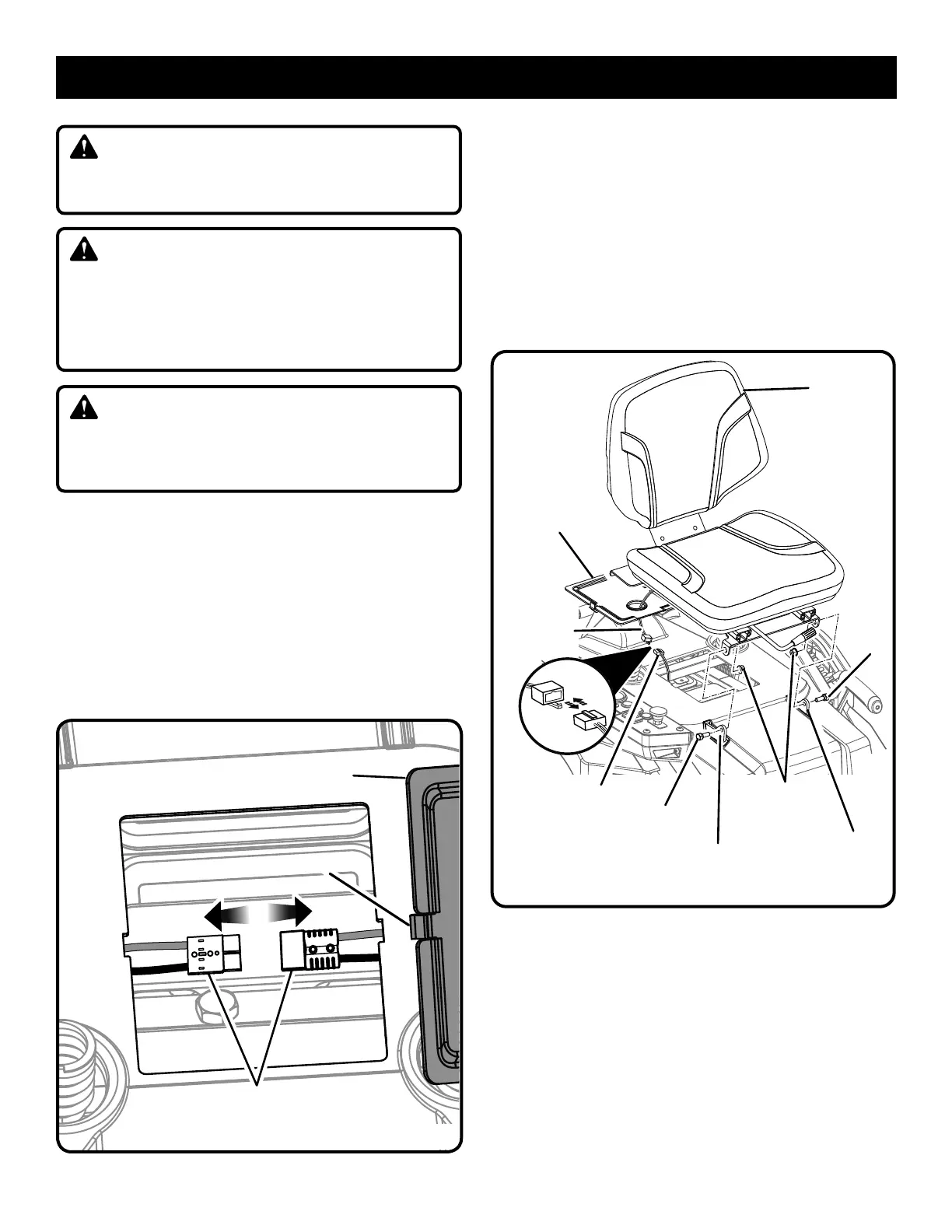

CONNECT THE BATTERY
See Figure 1.
When shipped from the factory, the mower’s batteries are
disconnected. To connect:
Press the tabs on the wiring cover and lift the cover to
remove.
Connect the two ends of the battery quick-connect plug
together.
NOTE: Before reinstalling the wiring cover, install the seat
as described in the next section.
ASSEMBLY
SEAT
ASSEMBLY
MOUNTING
BRACKET
INSTALL THE SEAT
See Figure 2.
Remove bolts and flange nuts from seat mounting
brackets.
Place the seat assembly over the mounting brackets and
align holes as shown.
Reinstall bolts and flange nuts and tighten securely.
Route seat safety interlock cable through hole in wiring
cover, then attach to plug on mower.
Reinstall wiring cover and make sure it is securely seated.
BOLT
SAFETY
INTERLOCK
CABLE
WIRING
COVER
PLUG
BOLT
FLANGE
NUT
Fig. 1
WIRING
COVER
BATTERY QUICK-
CONNECT PLUG
MOUNTING
BRACKET
TAB
