ASSEMBLY

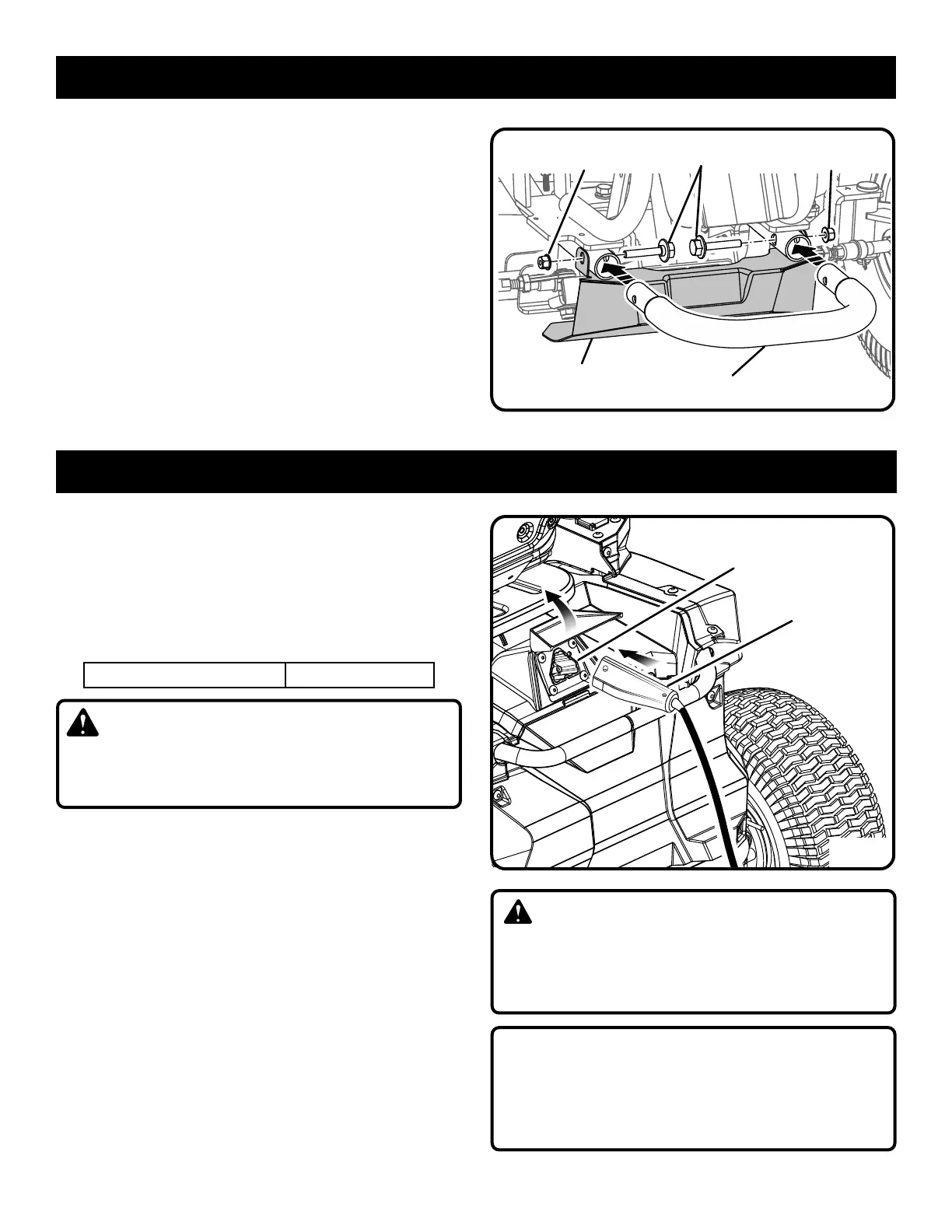

Fig. 5
FINAL PREPARATION
CHECK TIRE PRESSURE
Check the air pressure in all tires before use. Improper air
pressure will affect handling, steering response, traction,
tire life, level cutting, and operator comfort. Be sure tires
are inflated to the pressure shown below.
NOTE: Tire pressure should only be measured or
adjusted when tires are cold.
Recommended Pressure
20 psi (137.9 kpa)
WARNING:
Check the tire pressure carefully while inflating. Too much
air in the tire could cause the tire to burst, causing seri-
ous personal injury.
CHARGE THE MOWER
See Figure 6.
Mower batteries must be charged overnight before first
use. To verify mower batteries are fully charged, check the
battery level indicator.
To charge:
Insert charger plug into charging port on mower, making
sure it is properly connected.
Connect charger to power supply using normal household
current of 120 V, AC only, 60 Hz.
Do not charge in an area of extreme heat or cold.
Remove the charger from the mower once it is fully charged
and ready for use.
INSTALLING THE BUMPER
See Figure 5.
Remove the flange nuts and hex head bolts securing the
bumper cover to the mower frame.
Install the bumper into the openings at the front of the
mower frame as shown.
Align the holes in the bumper, the mower frame, and the
bumper cover. Reinstall the hex head bolts and flange
nuts and tighten securely.
CHARGER PLUG
CHARGING PORT
Fig. 6
WARNING:
To avoid accidental starting or movement of the mower
that could result in serious personal injury, always remove
the start key and set the parking brake when leaving the
mower unattended.
NOTICE:
Always connect the mower to the charger when the unit
is not in use. If it is not possible to leave the mower char-
ger connected, make sure to charge the batteries fully at
least once a month.
HEX HEAD BOLTS
BUMPER
FLANGE
NUT
FLANGE
NUT
BUMPER COVER
