1
15
14
16
13
20
17
18
2
3
4
5
9
8
7
6
12
11
10
19
30
29
31
32
252422 2321
26
27
28 28

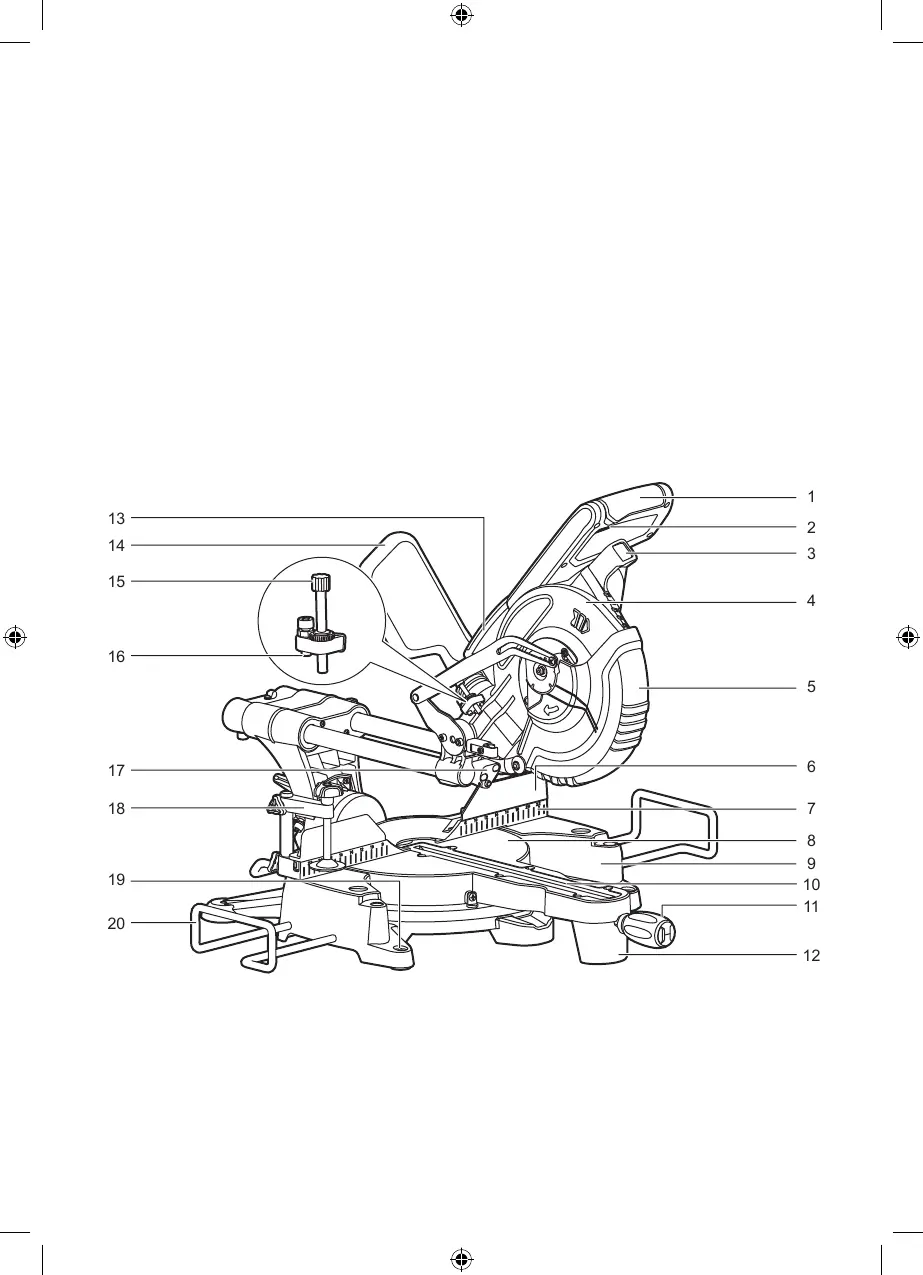

1. Handle, insulated gripping surface
2. Power switch
3. Safety lock lever
4. Upper guard
5. Lower guard
6. Sliding fence x 2
7. Main fence x 2
8. Turntable
9. Base
10. Table insert
11. Turntable lock handle
12. Balancing foot
13. Carrying handle
14. Dust bag
15. Cutting depth adjustment knob
16. Maximum cutting depth stop
17. Laser assembly
18. Clamp
19. Mounting hole x 4
20. Workpiece support x 2
21. Blade
22. Laser switch
23. Spindle lock button
24. Bracket stop
25. Linear rod stop knob
26. Screws for locking sliding fence
27. Screws for locking main fence
28. Sliding fence lock knob
29. Bevel angle lock knob
30. Screws for adjusting the bevel angle limit stop
31. Bevel angle lock pin
32. Rear support
8
