RYOBI 10 in. TABLE SAW – MODEL NUMBER BTS16
The model number will be found on a plate attached to the motor housing. Always mention the model
number in all correspondence regarding your TABLE SAW or when ordering repair parts.
PARTS LIST FOR FIGURE E
KEY PART
NO. NUMBER DESCRIPTION QTY.
1 410551701 SCREW w/FLAT WASHER (1/4-20 x 1/2 in. TRUSS HD.) ....... 2
2 0121010308-58 OUTFEED SUPPORT .............................................................. 1
3 0121010911 OUTFEED SUPPORT ROD .................................................... 2
4 0121010217 OUTFEED SUPPORT PLUG....................................................2
A121013901 OUTFEED SUPPORT ASSEMBLY (INC. KEY NOS. 1-4) ........ 1
* Standard Hardware Item – May Be Purchased Locally

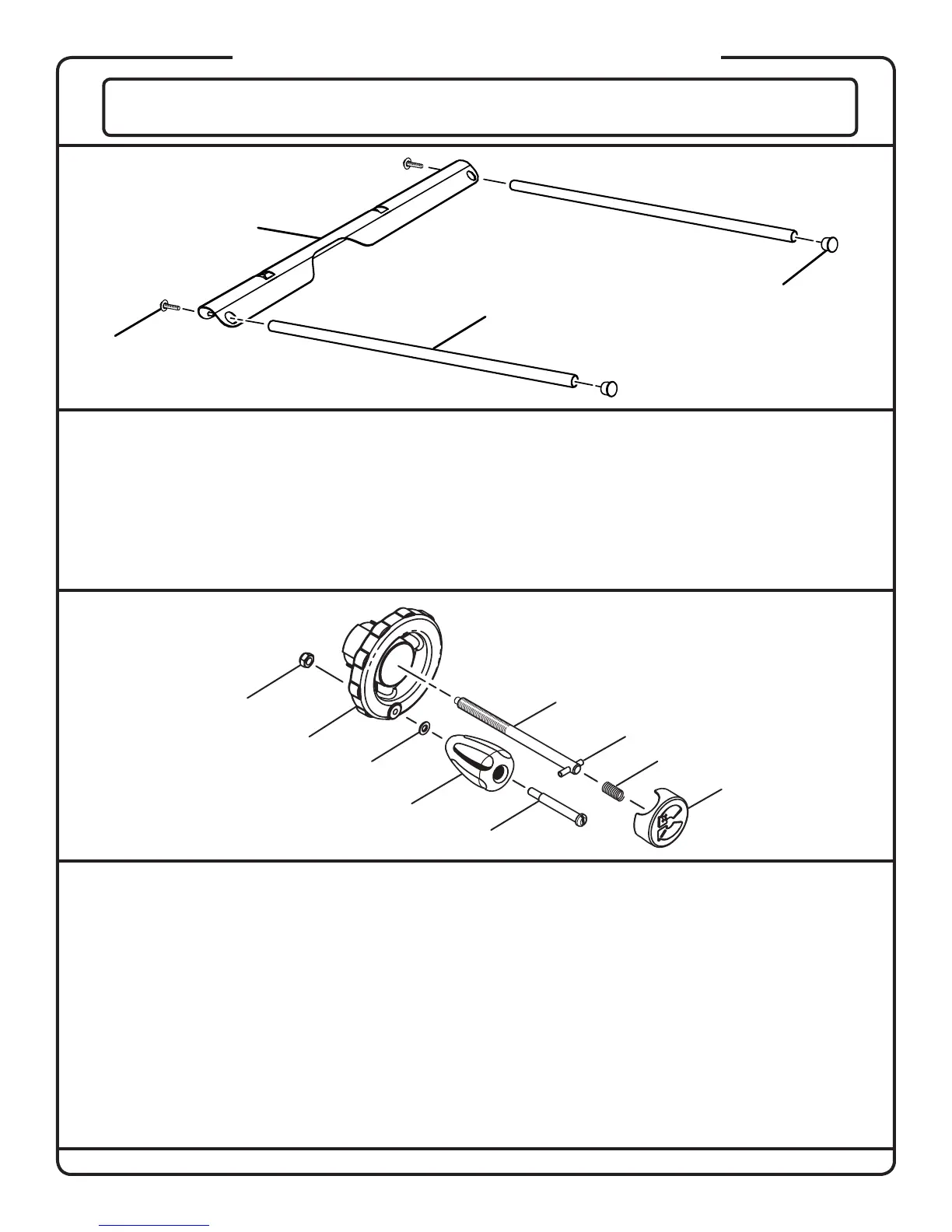

FIGURE E
1
2
3
4
FIGURE F
PARTS LIST FOR FIGURE F
KEY PART
NO. NUMBER DESCRIPTION QTY.
1 0000110812 NYLON NUT (1/4-20) ............................................................... 1
2 089110109006 HEIGHT/BEVEL ADJUSTING HANDWHEEL ........................... 1
3 412012041 WASHER (D6.5 x D13 x 1.5t) ................................................... 1
4 0131020212 BEVEL HANDLE ...................................................................... 1
5 0101140203 SPECIAL HAND WHEEL SCREW ............................................ 1
6 089110109005 END CAP ................................................................................. 1
7 0121010913 ROD ......................................................................................... 1
8 414011003 SPRING PIN (D4 x 20 mm) ...................................................... 1
089110109708 HEIGHT/BEVEL ADJUSTING HANDWHEEL ASSEMBLY
(INC. KEY NOS. 1-9) ................................................................ 1
9 0121010919 COMPRESSION SPRING.........................................................1
089110109709 BEVEL HANDLE ASSEMBLY (INC. KEY NOS. 1, 3-5) ............. 1
1
6
7
2
4
5
3
8
9
