RYOBI 10 in. TABLE SAW – MODEL NUMBER BTS16
The model number will be found on a plate attached to the motor housing. Always mention the model
number in all correspondence regarding your TABLE SAW or when ordering repair parts.
PARTS LIST FOR FIGURE C
KEY PART
NO. NUMBER DESCRIPTION QTY.
1 089110109021 RIGHT SLIDING TABLE EXTENSION .........................................1
2 410171710 * SCREW (10-24 x 1 in.) ................................................................4
3 0121010909 FRONT ROD, RIGHT SLIDING TABLE EXTENSION ...................1
4 0121010910 REAR ROD, RIGHT SLIDING TABLE EXTENSION .....................1
5 089110109908 SCALE LABEL ............................................................................1
089110109702 RIGHT SLIDING TABLE ASSEMBLY (INC. KEY NOS. 1-5) ...........1
* Standard Hardware Item – May Be Purchased Locally

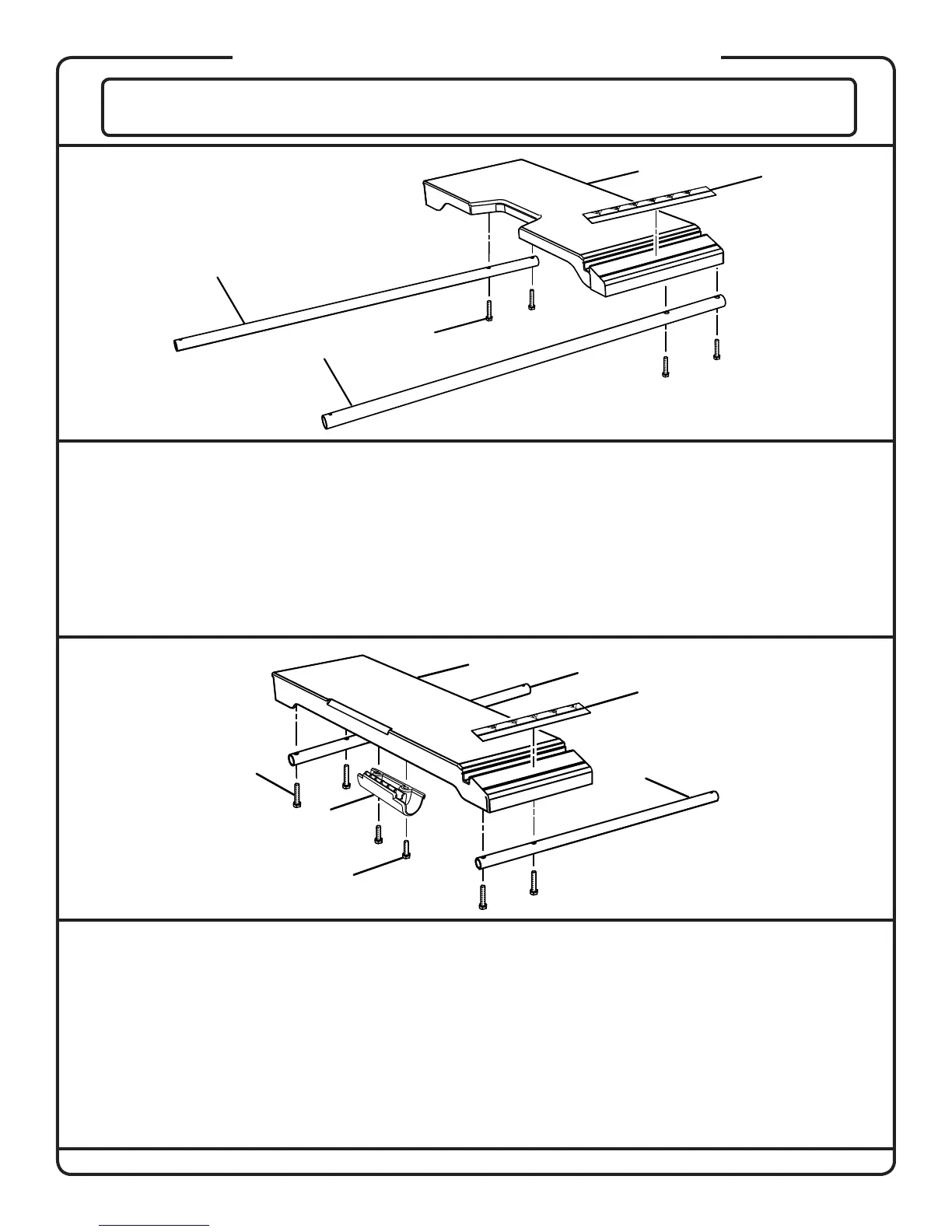

FIGURE C
1
2
3
5
4
FIGURE D
PARTS LIST FOR FIGURE D
KEY PART
NO. NUMBER DESCRIPTION QTY.
1 089110109020 LEFT SLIDING TABLE EXTENSION ........................................ 1
2 0121010907 FRONT ROD, LEFT SLIDING TABLE EXTENSION .................. 1
3 410171710 * SCREW (10-24 x 1 in.)............................................................. 4
4 0134010209 LEFT HANDLE ......................................................................... 1
5 410171706 * SCREW (10-24 x 1/2 in.) ......................................................... 2
6 0121010908 REAR ROD, LEFT SLIDING TABLE EXTENSION .................... 1
7 089110109908 SCALE LABEL ......................................................................... 1
089110109703 LEFT SLIDING TABLE ASSEMBLY (INC. KEY NOS. 1-7) ........ 1
1
6
7
2
4
5
3
