RYOBI 10 in. TABLE SAW – MODEL NUMBER BTS16
The model number will be found on a plate attached to the motor housing. Always mention the model
number in all correspondence regarding your TABLE SAW or when ordering repair parts.

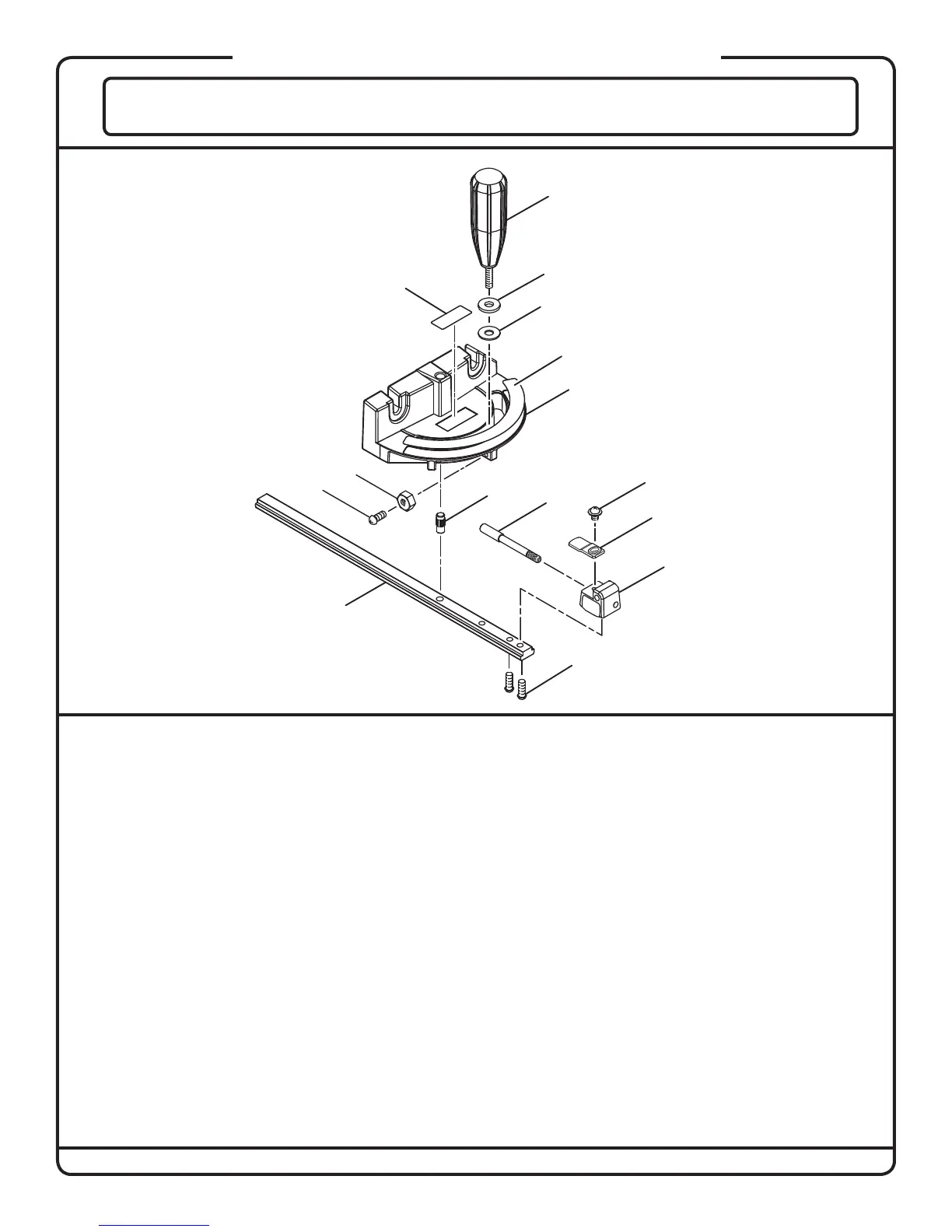

PARTS LIST FOR FIGURE B
KEY PART
NO. NUMBER DESCRIPTION QTY.
1 089110109023 KNOB ..........................................................................................1
2 412012705 * WASHER (1/4 in. X 16 X 1.5T) ....................................................1
3 412080702 NYLON WASHER .......................................................................1
4 089110109903 MITER SCALE LABEL ................................................................1
5 089110109024 MITER GAUGE BASE ................................................................1
6 0101010917 CENTER PIN (1/4 in.) ..................................................................1
7 0101010918 STOP PIN ...................................................................................1
8 0121010803 * SCREW (M4 x 10 mm) ................................................................1
9 0131010329 INDICATOR .................................................................................1
10 0121010204 INDICATOR DECK ......................................................................1
11 410561004 * SCREW (M4 x 12 mm PAN HD.) .................................................2
12 411012704 * HEX NUT (3/16-24) .....................................................................3
13 410132734 * SCREW (3/16-24 x 21.7 mm PAN HD.) ......................................3
14 0121011802 MITER GAUGE ROD ...................................................................1
15 089110109902 MITER GAUGE LABEL ...............................................................1
089110109701 MITER GAUGE ASSEMBLY (INC. KEY NOS. 1-15) ....................1
* Standard Hardware Item – May Be Purchased Locally
FIGURE B
8
9
7
6
4
5
1
2
3
10
11
14
12
13
15
To Next Page
