RYOBI 10 in. TABLE SAW – MODEL NUMBER BTS16
The model number will be found on a plate attached to the motor housing. Always mention the model
number in all correspondence regarding your TABLE SAW or when ordering repair parts.

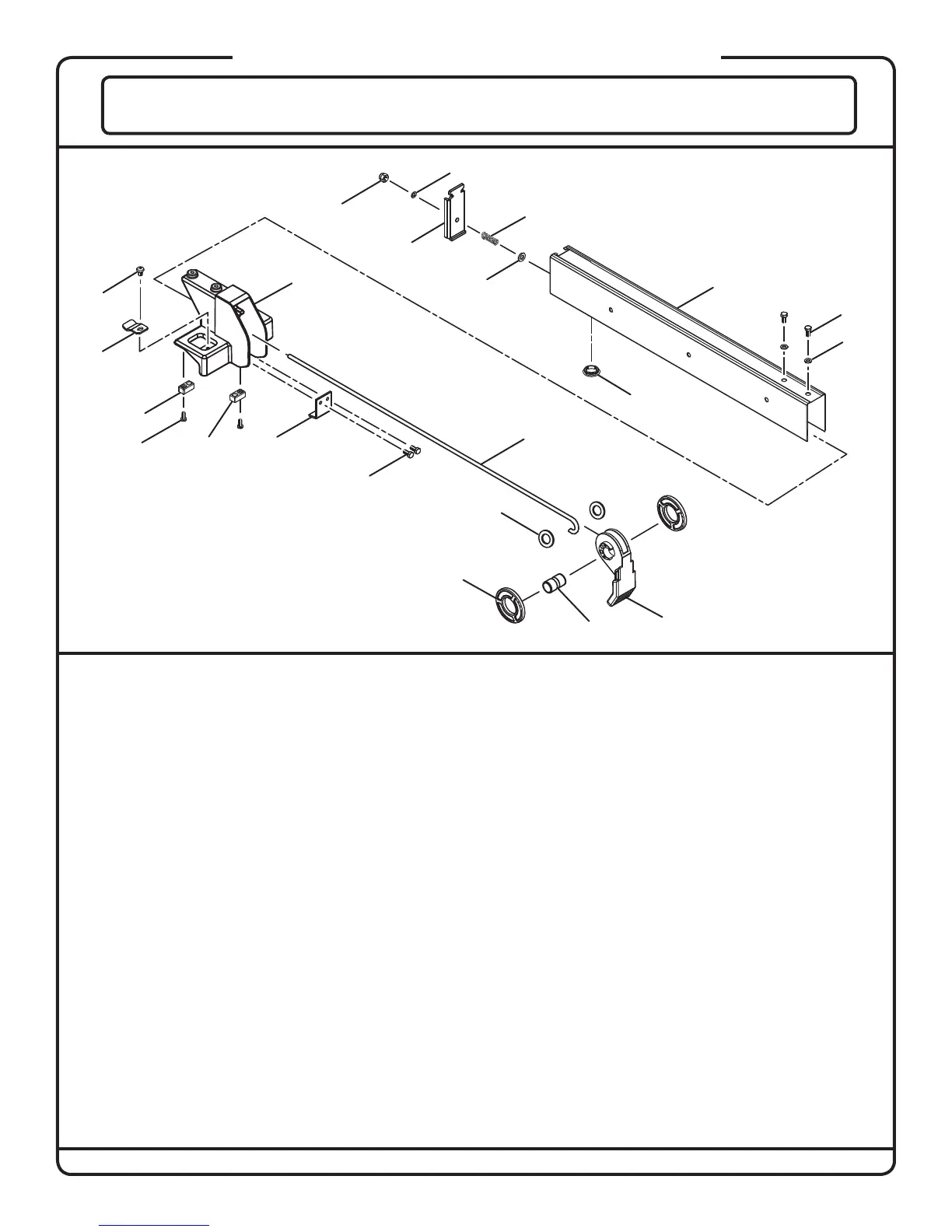

PARTS LIST FOR FIGURE A
KEY PART
NO. NUMBER DESCRIPTION QTY.
1 411071001 NYLON NUT (M6) .......................................................................1
2 412011030 * WASHER (D6.5 x D16 x 1.5t) .....................................................4
3 0121010310 REAR CLAMPING PLATE ...........................................................1
4 0121010915 COMPRESSION SPRING ...........................................................1
5 0121010234 RIGHT SLIDER (FRONT BLOCK) ...............................................1
6 0121011801 RIP FENCE .................................................................................1
7 410051001 * SCREW (M6 x 15 mm TRUSS HD.)............................................2
8 412011115 * WASHER (D16 x D25 X 1.5t) ......................................................2
9 410541003 * SCREW (M4 x 10 mm TRUSS HD.)............................................1
10 0121010207 INDICATOR.................................................................................1
11 089110109025 FRONT BLOCK ..........................................................................1
12 0121010917 ROD ............................................................................................1
13 0121010218 LOCKING LEVER .......................................................................1
14 0134010241 AXLE ...........................................................................................1
15 0121010210 RING PAD ...................................................................................2
16 410431701 * SCREW (10-24 x 3/8 in. TRUSS HD.) ........................................2
17 0121010320 FRONT CLAMPING PLATE ........................................................1
18 410131723 * SCREW (8-32 x 9.5 mm FLAT HD.) ............................................2
19 0121010233 LEFT SLIDER (FRONT BLOCK) ..................................................1
20 0121010209 RIP FENCE SLIDER ....................................................................2
089110109700 RIP FENCE ASSEMBLY (INC. KEY NOS. 1-20) .........................1
* Standard Hardware Item – May Be Purchased Locally
FIGURE A
2
7
1
2
3
4
2
6
20
9
10
11
19
18
5
17
16
12
8
15
14
13
