Ryobi TS1553 - Features

9
FEATURES

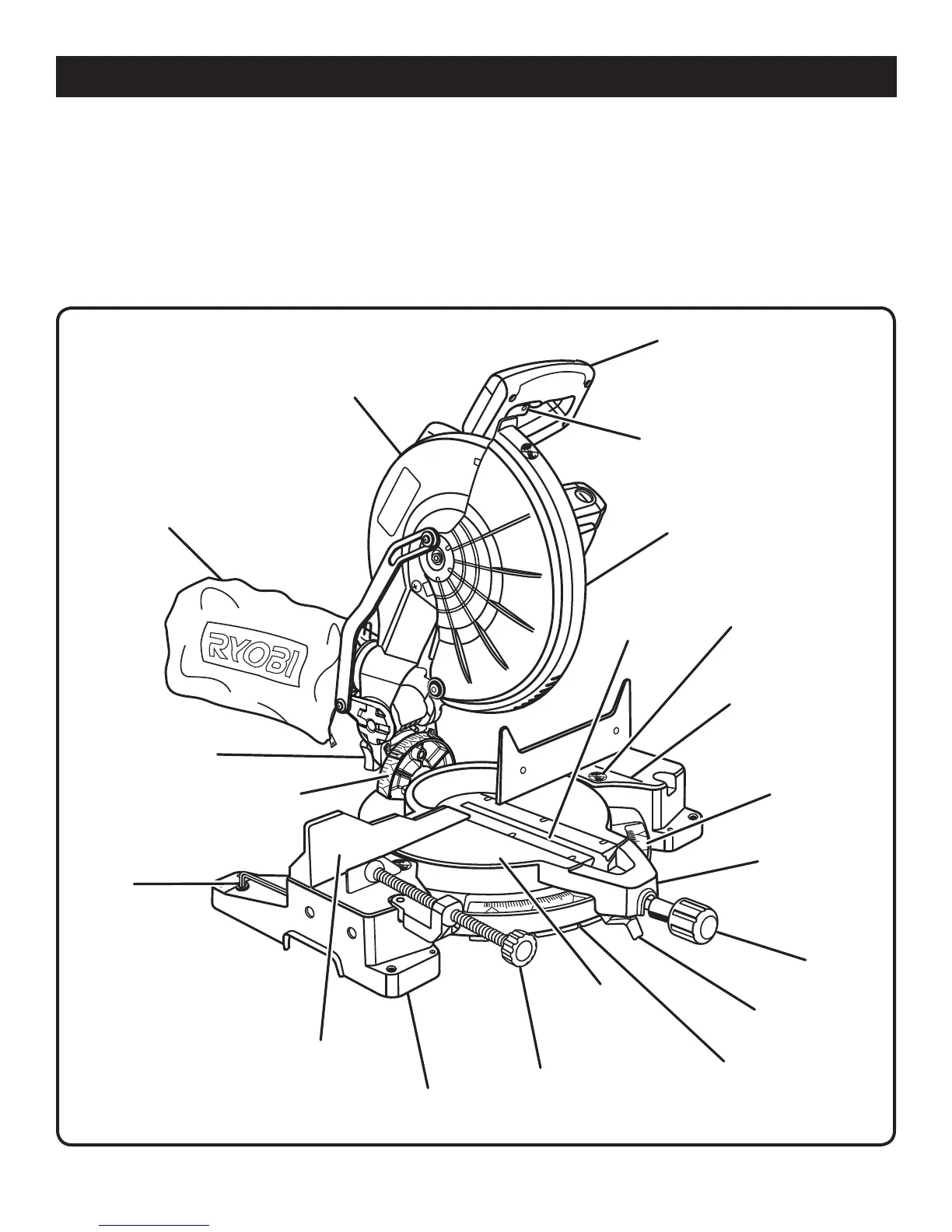

Fig. 1
PRODUCT SPECIFICATIONS
Arbor ......................................................................... 5/8 in.
Blade Inner Washer ..................................................... 1 in.
Blade Diameter .......................................................... 12 in.
No Load Speed .................................... 4,000 r/min. (RPM)
Input ....................................... 120 V, 60 Hz, AC only, 15 A
Cutting Capacity with Miter at 0°/Bevel 0°:
Maximum nominal lumber sizes ..................... 2 x 8, 4 x 4
Cutting Capacity with Miter at 45°/Bevel 0°:
Maximum nominal lumber sizes ...............................2 x 6
Cutting Capacity with Miter at 0°/Bevel 45°:
Maximum nominal lumber sizes ...............................2 x 8
Cutting Capacity with Miter at 45°/Bevel 45°:
Maximum nominal lumber sizes ...............................2 x 6
Lower
bLade
guard
upper
bLade
guard
“d” handLe
base
Miter
Lock handLe
beveL
scaLe
beveL
Lock
knob
positive
stop(s)
switch trigger
throat
pLate
“no hands Zone”
LabeL
controL
arM
Miter
Lock pLate
“no hands Zone”
boundarY Line
Miter
scaLe
bLade
wrench
Miter
Fence
Miter
tabLe
dust bag
work
cLaMp
