S2Tech DS EUROPE AN-401plus Series User Manual

Preliminary manual AN 401 Plus V2 r12 25/10/12
-6 / 20-
2 Electrical connection
2.1 Rear terminal connections

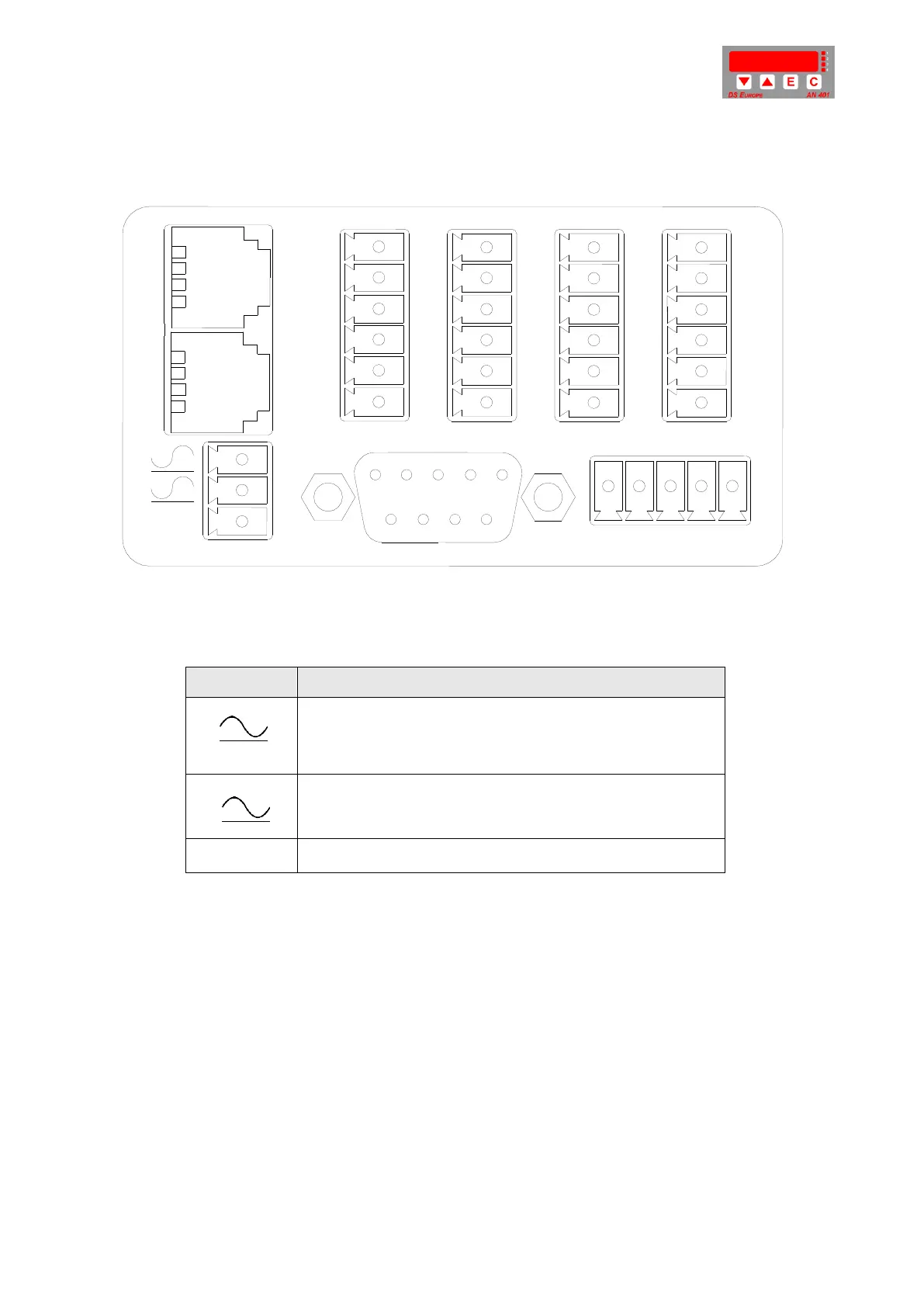

Figure 1: AN401plus rear view.
2.2 Power Supply Connection
Terminal
Description
Power Supply, polarity free
Power Supply, polarity free
EARTH
Earth Connection
2.2.1 Power Supply
 From 10 to 35 Vdc.
 From 9 a 15 Vac.
The power supply generator has to be in position to supply up to 10 W.
Please use the EARTH connection, available on the connector, as indicated on paragraph 2.11.
1
2
3
4
1
3
4
2
5
4
3 2
1
9 8
7
6
CanBus
RS-485
RS-232
INPUT
1
2
3
4
5
1
2
3
4
5
6
6
4
5
3
1
2
6
4
5
3
1
2
6
4
5
3
1
2
D
C
B
A
EARTH
RJ-11A
RJ-11B
