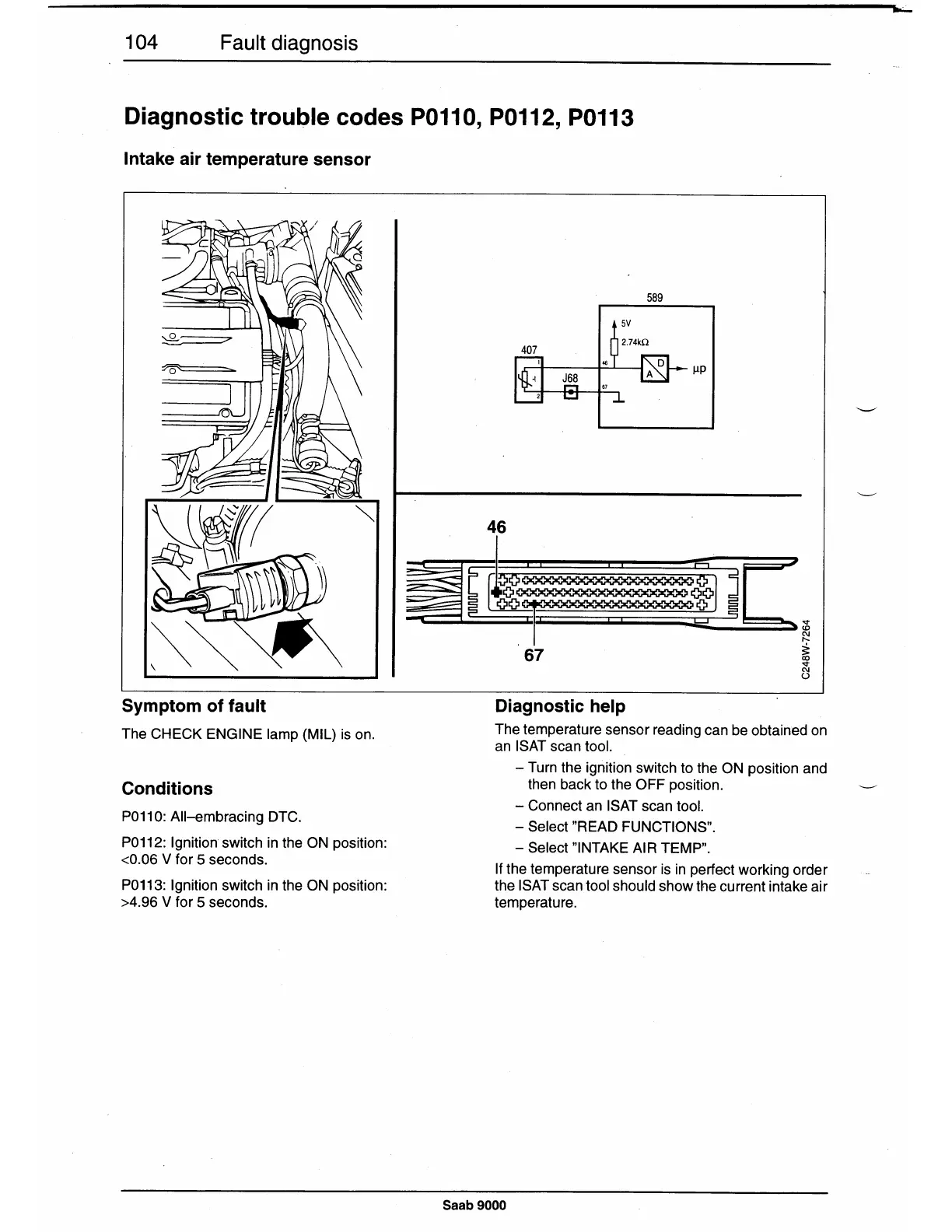

104 Fault diagnosis
Diagnostic trouble codes P0110, P0112, P0113
Intake air temperature sensor
Symptom of fault
The CHECK ENGINE lamp (MIL) is on.
Conditions
P0110: All-embracing OTC.
P0112: Ignition switch in the ON position:
<0.06 V for 5 seconds.
P0113: Ignition switch in the ON position:
>4.96 V for 5 seconds.
407
46
67
589
5V
2.74k!l
µp
Diagnostic help
The temperature sensor reading can be obtained on
an ISAT scan tool.
- Turn the ignition switch to the ON position and
then back to the OFF position.
- Connect an ISAT scan tool.
- Select "READ FUNCTIONS".
- Select "INTAKE AIR TEMP".
If the temperature sensor is in perfect working order
the ISAT scan tool should show the current intake air
temperature.
